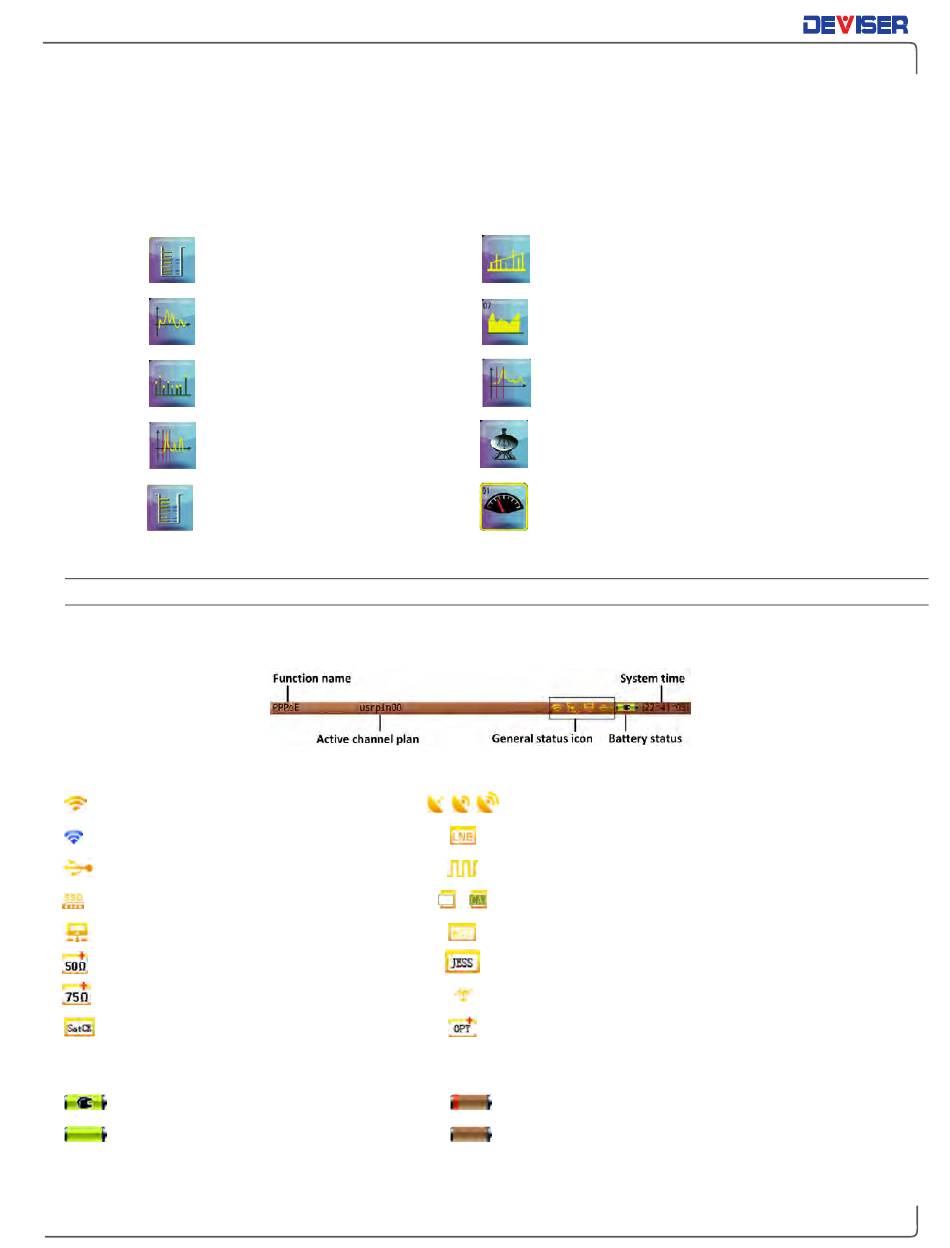

Measurement Main Menu

The S7200 TV Signal Analyzer provides the following spectrum analysis measurement modes, aimed at
simplifying the installation, maintenance and troubleshooting of a CATV broadcasting system.
(Note: some measurements are only available by option. See Section 1-2 for option info.)
Measurement (TV & SAT)
Spectrum (TV & SAT)
Channel Scan
CTB/CSO
IPTV
2-6.1 Status Bar
Look to the orange bar across the top of the screen for current battery charge, time & date, and more.
General Status Icons
Wi-Fi function is active.
Wi-Fi hotspot function is active.
USB storage device connected.
Solid state drive connected.
LAN cable connected.
50Ω input port active.
75Ω input port active.
SATCR function active.
Power Icons
Adapter connected.
20
Full battery.
Tilt
Passive Sweep
CNR
Dish
OPM (Optical Power Meter)
Searching for a GPS satellite signal.
LNB feed currently active.
22kHz (DisEqC protocol) signal active.
CAM/smart card recognized. Ready to decode.
TS-ASI input/output function active.
dCSS function active.
Antenna coefficient enabled.
Optical port enabled.
Low battery.
Empty battery.
