DAB Channel Parameters
Channel serial number:
Channel name: Edit with keypad
Channel status: [Enable / Disable]
Signal type: DAB only
System rate: [50Hz / 60Hz]
Frequency: Edit with keypad
DTMB Channel Parameters
Channel serial number:
Channel name: Edit with keypad
Channel status: [Enable / Disable]
Signal type: DTMB only
System rate: [50Hz / 60Hz]
Frequency: Edit with keypad
Measure BW: [6 MHz / 7 MHz / 8 MHz]
ISDB Channel Parameters
Channel serial number:
Channel name: Edit with keypad
Channel status: [Enable / Disable]
Signal type: ISDB-T only
System rate: [50Hz / 60Hz]
Frequency: Edit with keypad
Measure BW: [6 MHz / 8 MHz]
NOTE: Some parameters are auto-coupled together. Editing one of these will auto-edit related settings as
well, optimizing your configuration. If the auto-adjusted settings do not match your requirements, you
may proceed to adjust them manually.

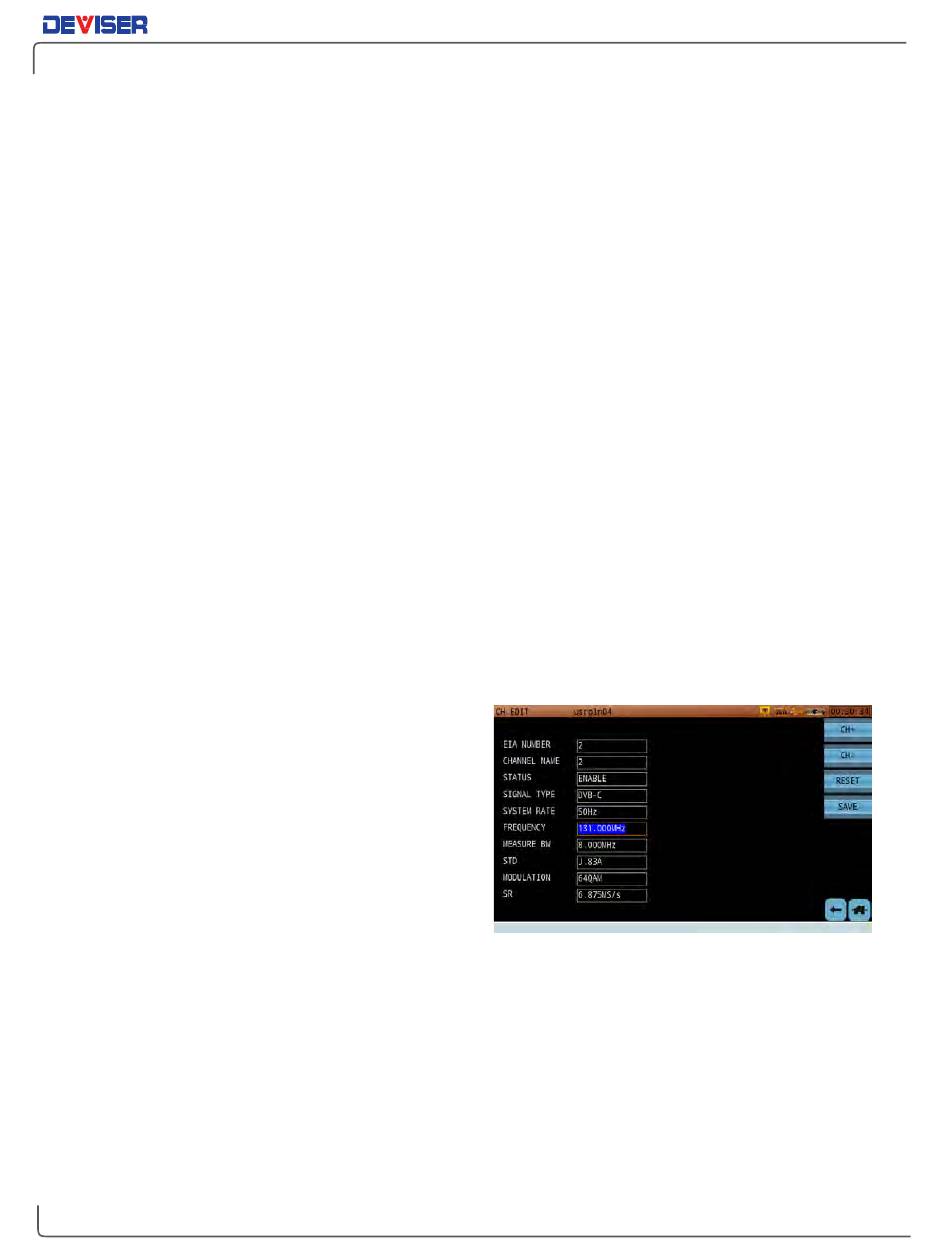

Each signal type selection (i.e., Analog TV, DVB-C or
DOCSIS) will automatically populate default values
for the chosen standard. Use the CH+ and CH- keys
to quickly switch from one channel to the next. When
switching channels or exiting the edit dialog, you will
be prompted to save your changes. Select OK to
save, or Cancel to discard changes.
More channel plan templates are available in the
S7200 Toolbox software. Deviser may be able to write
customer-specific channel plans upon request.
