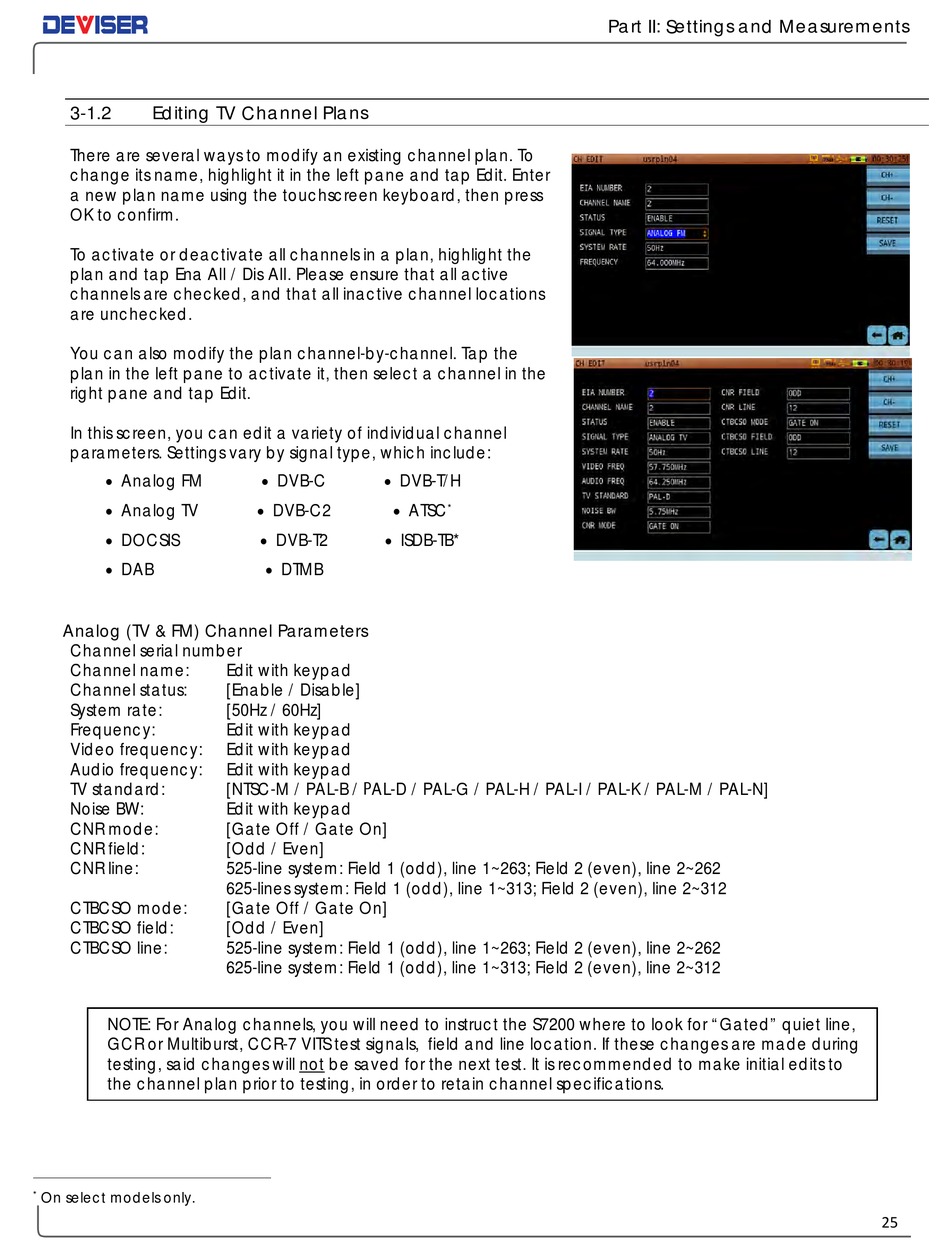

3-1.2 Editing TV Channel Plans
There are several ways to modify an existing channel plan. To
change its name, highlight it in the left pane and tap Edit. Enter
a new plan name using the touchscreen keyboard, then press
OK to confirm.
To activate or deactivate all channels in a plan, highlight the
plan and tap Ena All / Dis All. Please ensure that all active
channels are checked, and that all inactive channel locations
are unchecked.
You can also modify the plan channel-by-channel. Tap the
plan in the left pane to activate it, then select a channel in the
right pane and tap Edit.
In this screen, you can edit a variety of individual channel
parameters. Settings vary by signal type, which include:
 Analog FM
 Analog TV
 DOCSIS
 DAB
Analog (TV & FM) Channel Parameters
Channel serial number
Channel name:
Channel status:
System rate:
Frequency:
Video frequency:
Audio frequency:
TV standard:
Noise BW:
CNR mode:
CNR field:
CNR line:
CTBCSO mode:
CTBCSO field:
CTBCSO line:
NOTE: For Analog channels, you will need to instruct the S7200 where to look for "Gated" quiet line,
GCR or Multiburst, CCR-7 VITS test signals, field and line location. If these changes are made during
testing, said changes will not be saved for the next test. It is recommended to make initial edits to
the channel plan prior to testing, in order to retain channel specifications.
On select models only.
*
 DVB-C  DVB-T/H
 DVB-C2  ATSC
 DVB-T2  ISDB-TB*
 DTMB
Edit with keypad
[Enable / Disable]
[50Hz / 60Hz]
Edit with keypad
Edit with keypad
Edit with keypad
[NTSC-M / PAL-B / PAL-D / PAL-G / PAL-H / PAL-I / PAL-K / PAL-M / PAL-N]
Edit with keypad
[Gate Off / Gate On]
[Odd / Even]
525-line system: Field 1 (odd), line 1~263; Field 2 (even), line 2~262
625-lines system: Field 1 (odd), line 1~313; Field 2 (even), line 2~312
[Gate Off / Gate On]
[Odd / Even]
525-line system: Field 1 (odd), line 1~263; Field 2 (even), line 2~262
625-line system: Field 1 (odd), line 1~313; Field 2 (even), line 2~312
