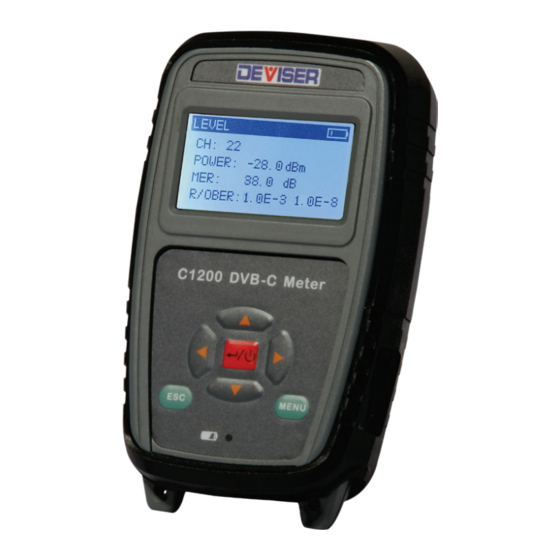

Deviser C1200 Operation Manual

Dvb-c meter
Hide thumbs Also See for C1200:
Table of Contents

Advertisement

Quick Links

O
p
e
r
a
t
O
p
e
r
a
t
C
1
2
0
0
C
1
2
0
0
V
e
r
1
.
1
V
e
r
1
.
1
：
：
i
o
n
M
a
i
o
n
M
a
D
V
B
-
C
D
V
B
-
C
1
1
n
u
a
l
n
u
a
l
M
e
t
e
r
M
e
t
e
r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deviser C1200

Summary of Contents for Deviser C1200

  • Page 1 ： ：...
  • Page 2 © Deviser Electronics Instrument Co., Ltd. Deviser Part No.: C1200-DL All rights reserved. Printed in CHINA, January 2015.

  • Page 3: Table Of Contents

    INDEX 1. General Introduction ........1 2. Panel Introduction ......... 2 2.1 Appearance .......... 2 2.2 Keypad..........3 2.3 Display Description ......4 3. Power Supply ..........5 3.1 Battery ..........5 3.2 Charging ..........6 4. Using the Instrument ........7 4.1 Level Test ..........

  • Page 5: General Introduction

    With Streamlined appearance design and simple user interface, C1200 offers the most cost effective choice for a variety of applications. The digital measurements include, modulation error ratio (MER), and pre- and post-FEC bit error rate (BER).It also possesses the...

  • Page 6: Panel Introduction

    C1200 DVB-C Meter Operation Manual 2. Panel Introduction 2.1 Appearance Selection Power on/off Charging Port Return USB Port Main Menu Charging Indicator RF Input...

  • Page 7: Keypad

    C1200 DVB-C Meter Operation Manual 2.2 Keypad ：Increase and decrease. 、 ：Left and right circularly selection. 、 ： Power on/off(hold it over 3 seconds to power off) or Confirmation. ：Main Menu. ：Return to previous menu or cancel. ：Charger Indicator...

  • Page 8: Display Description

    C1200 DVB-C Meter Operation Manual 2.3 Display Description Battery Lock Mode Frequency Channel Name Power Level Figure 2-3 Mode  Lock  Channel Name： The Frequency, Power Level,  MER and BER are displayed on the same screen. Battery：Capacity of battery.

  • Page 9: Power Supply

    With a built-in 7.4V /1.6AH Lithium battery, the meter can continuously work for above 4 hours. When the battery voltage drops below 6.0V, C1200 will automatically power off and then users must charge it with the attached charger for about 3 hours.

  • Page 10: Charging

    3.2 Charging Charge the meter before the first time use. Please charge the meter as follows: 1. Insert the charger output plug into C1200 DC charge socket. 2. Connect the charger to AC 100V-240V Power and the charger indicator of meter is with red light.

  • Page 11: Using The Instrument

    C1200 DVB-C Meter Operation Manual 4. Using the Instrument Power on C1200, as Figure 4-1. Figure 4-1 These icons are listed in C1200 Main Interface: LEVEL, TILT, SCAN, C/N and SETUP. Press”Left and Right” to select the functions, press “ENTER” to enter the function 4.1 Level Test...

  • Page 12: Tilt

    Right” to edit the Channel parameters. 4.2 Tilt Tilt/Level list test is the effective solution to check the flatness and splitter’s attenuation of cable system, C1200 can get levels of 8 channels and observe the measurement result and graph easily.

  • Page 13: Channel Scanning

    C1200 DVB-C Meter Operation Manual Figure 4-2-1 Tilt Figure 4-2-2 SETUP-TILT 4.3 Channel Scanning Figure 4-3 Channel Scanning C1200 support channel scanning function in order to test the flatness and amplitude of cable TV system quickly.

  • Page 14: Trunk Voltage

    C1200 DVB-C Meter Operation Manual 4.4 C/N Figure 4-4 C/N Press “Up and Down” to select CH,press “Left and Right” to edit the Channel parameters. 4.5 Trunk Voltage As Figure 4-5, you can get the Trunk Voltage in this interface.

  • Page 15: Setup

    C1200 DVB-C Meter Operation Manual 4.6 Setup Press to select “SETUP” in the main menu. Press to setup interface as Figure 4-6. Figure 4-6 4.6.1 System Information The information of the instrument, Refer to Figure 4-6-1 It includes serial number, software version, hardware version and so on.
  • Page 16 C1200 DVB-C Meter Operation Manual 4.6.2 General Press to select “Configure” in the figure 11 interface, then press to setup interface, as figure 4-6-2. Figure 4-6-2 1. Backlight Set the backlight ON and OFF by pressing , refer to Figure 4-6-3.
  • Page 17 C1200 DVB-C Meter Operation Manual Refer to figure 4-6-4. Figure 4-6-4 3. Level Units μ Set level unit dB V, dBmV or dBm by pressing buttons. Refer to figure 4-6-5. Figure 4-6-5...
  • Page 18 . Figure 4-6-6 4.6.3 Channel Plan Setup A default Channel Plan is programmed in C1200 when delivery. You can modify the Channel Plan parameters in this interface. As Figure 4-6-7: Figure 4-6-7 In the same time,you can also modify and edit the...
  • Page 19 C1200 DVB-C Meter Operation Manual load the Channel Plan to C1200,or press “ENTER” to edit the selected plan by hand. In DIG channel press to STATUS 、TYPE、 STANDARD、FREQ、SR、BW、TYPE， press enter into parameters edition and press to input parameters.As Figure 4-6-8、Figure 4-6-9、...
  • Page 20 C1200 DVB-C Meter Operation Manual Figure 4-6-10 In ANA channel press to STATUS 、TYPE、 FREQ、OFFSET， press to enter into parameters edition and press to input parameters. As Figure 4-6-11、Figure 4-6-12: Figure 4-6-11...
  • Page 21 C1200 DVB-C Meter Operation Manual Figure 4-6-12 4.6.4 LIMIT Setup As Figure 4-6-13, you can press to VIDEO 、 VA 、 POWER 、 MER ， press to enter into parameters edition and press to input parameters. Figure 4-6-13...
  • Page 22 As Figure 4-6-15, you can set up the operation mode of C1200 in this interface. Figure 4-6-15 As Figure 4-6-16,C1200 provides 5 kinds of operation mode for choice: 30s, 1min, 5min, 10min, ON. You can set the mode by pressing...
  • Page 23 C1200 DVB-C Meter Operation Manual prefer measure continuously,please choose “ON”,while only want measure occasionally,please choose the other 4 modes with the proper measurement time you want,and these modes can consume less power. Figure 4-6-16...

  • Page 24: User Channel Plan

    C1200 DVB-C Meter Operation Manual 5. User Channel Plan 5.1 Upload and Download Channel Plan The instrument can be connected with PC by USB cable to upload and download channel plan. 6. Specification Analog CATV Frequency Range 5~1200MHz 30~120dBμV Level Accuracy ±2.0dB...
  • Page 25 C1200 DVB-C Meter Operation Manual Power Level ±2.0dB Accuracy >40 MER Accuracy ±2.0dB 1E-3~1E-9 16/32/64/128/256QAM Modulation Type (J.83A/C) 64/256QAM(J.83B) 1~7Msps Interface RF Input 75 Ω Type-F(f) AC Adapter 12V/1.2A Mini-USB Battery Capacity 7.4V/1.6A Working Time >4 hours Charging Time 3 hours...

  • Page 26: Accessories

    C1200 DVB-C Meter Operation Manual 7. Accessories Charger（PW09021915W） USB Cable (P.900000421) CD(Manual and Toolbox software) Shoulder Strap（PKS30004603） Soft Case（PK1S3000000） Type-F(f) to Type-(f) adapter（P.121068J8J） Manual...
  • Page 27 C1200 DVB‐C Meter Operation Manual  Deviser (China) Deviser (US) Address: No.8, Haitai Chuangxin 3 Road, Address: 780 Montague Expressway, Hi-tech Industrial Development Area, Suite 606,San Jose, CA 95131, USA Tianjin, China, 300392 Tel: +1 408 931 0948 Tel: +86 2764 5003 ext.803 http://www.deviserinstruments.com http://www.deviserinstruments.com E-mail: sales@deviserinstruments.com...
