Part I: S7200 Basics
Dual Alphanumeric Keypad
The keypad can be used to input numerical entries or type words (e.g., for naming files). Press the green
Back key to erase the last entry.
Arrow Keys
The arrow keys to the right of the screen are used to adjust settings or move markers. Press the top arrow to
increase the selected value and the bottom arrow to decrease it.
Back and Enter Buttons
Press the Back button to cancel an entry or return to the previous application or menu. Press Enter to
confirm a changed value or a highlighted setting.
2-4

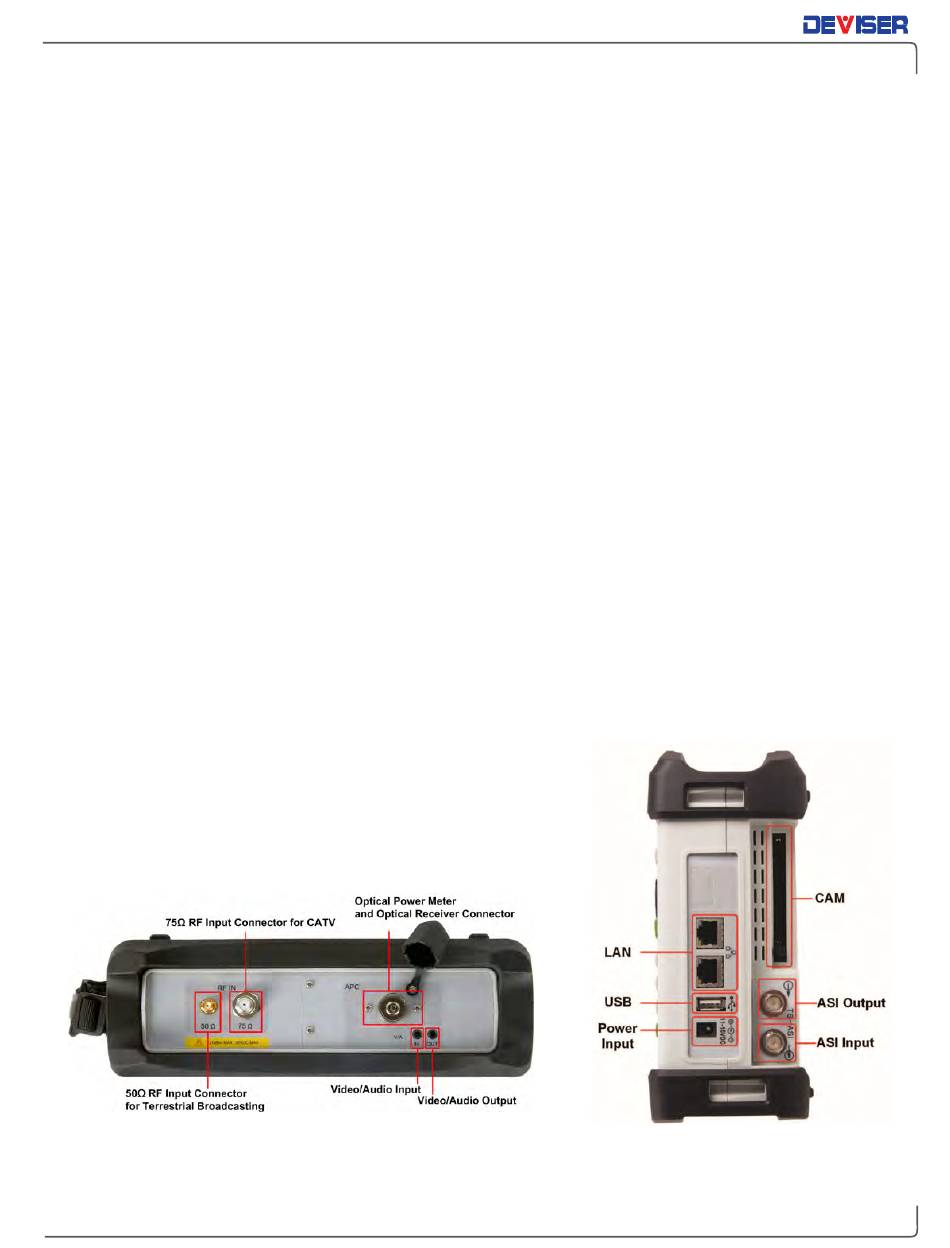

Top and Side Panel Overview

The test instrument's top panel contains connectors and ports. See the diagram and descriptions below.
RF Input
75 Ω, N-Type female connector. Input is DC ~100Hz, max 30VDC; 5 ~ 2150 MHz, max +70dBmV.
Optical Port (by option only)
Used to connect a fiber for the optical power meter.
CAM (by option only)
Conditional Access Module for channel decryption.
(See subsection 6-12.12 for instructions.)
USB Type-A port
The S7200 has a Type-A USB 2.0 port that accepts USB storage devices for transferring measurements, setup
files, screen images, GPS dongle option, and other data.
LAN port
The LAN port is used to network the device to a PC.
Power Input
Used to supply the S7200 with electricity and charge the battery.
Connect to a wall outlet using the power supply included.
