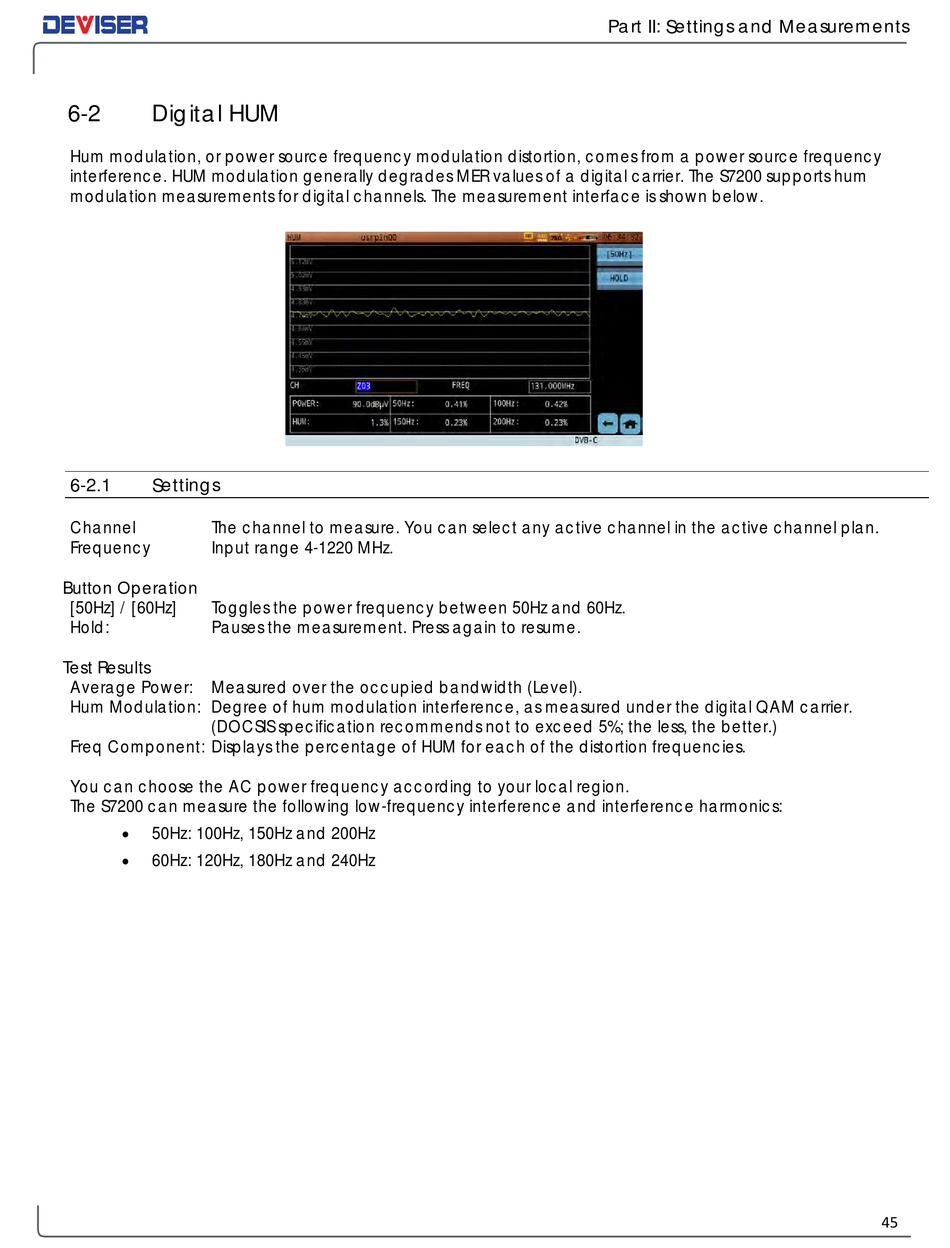

6-2

Digital HUM

Hum modulation, or power source frequency modulation distortion, comes from a power source frequency
interference. HUM modulation generally degrades MER values of a digital carrier. The S7200 supports hum
modulation measurements for digital channels. The measurement interface is shown below.
6-2.1 Settings
Channel The channel to measure. You can select any active channel in the active channel plan.
Frequency Input range 4-1220 MHz.
Button Operation
[50Hz] / [60Hz] Toggles the power frequency between 50Hz and 60Hz.
Hold: Pauses the measurement. Press again to resume.
Test Results
Average Power: Measured over the occupied bandwidth (Level).
Hum Modulation: Degree of hum modulation interference, as measured under the digital QAM carrier.
(DOCSIS specification recommends not to exceed 5%; the less, the better.)
Freq Component: Displays the percentage of HUM for each of the distortion frequencies.
You can choose the AC power frequency according to your local region.
The S7200 can measure the following low-frequency interference and interference harmonics:
 50Hz: 100Hz, 150Hz and 200Hz
 60Hz: 120Hz, 180Hz and 240Hz
