Tilt Measurement

The Tilt measurement helps to quickly measure the flatness of a CATV system and the gain of the splitters /
taps. This feature provides power levels for up to 16 channels. Upon entering the Tilt function, you will be
prompted to set the tilt plan. Select 4 - 16 channels from the channel plan window, then tap outside the
window to start the measurement.
There are 2 markers, displayed as color-coded vertical lines, on the Tilt screen. Tap-and-drag a marker to
move it left or right, or tap-and-drag the display up or down to change the reference level. When you
move a marker over a channel in this way, its level and channel type are displayed.
The Tilt measurement has two different view modes. Tap [Graph/List] to toggle between them.

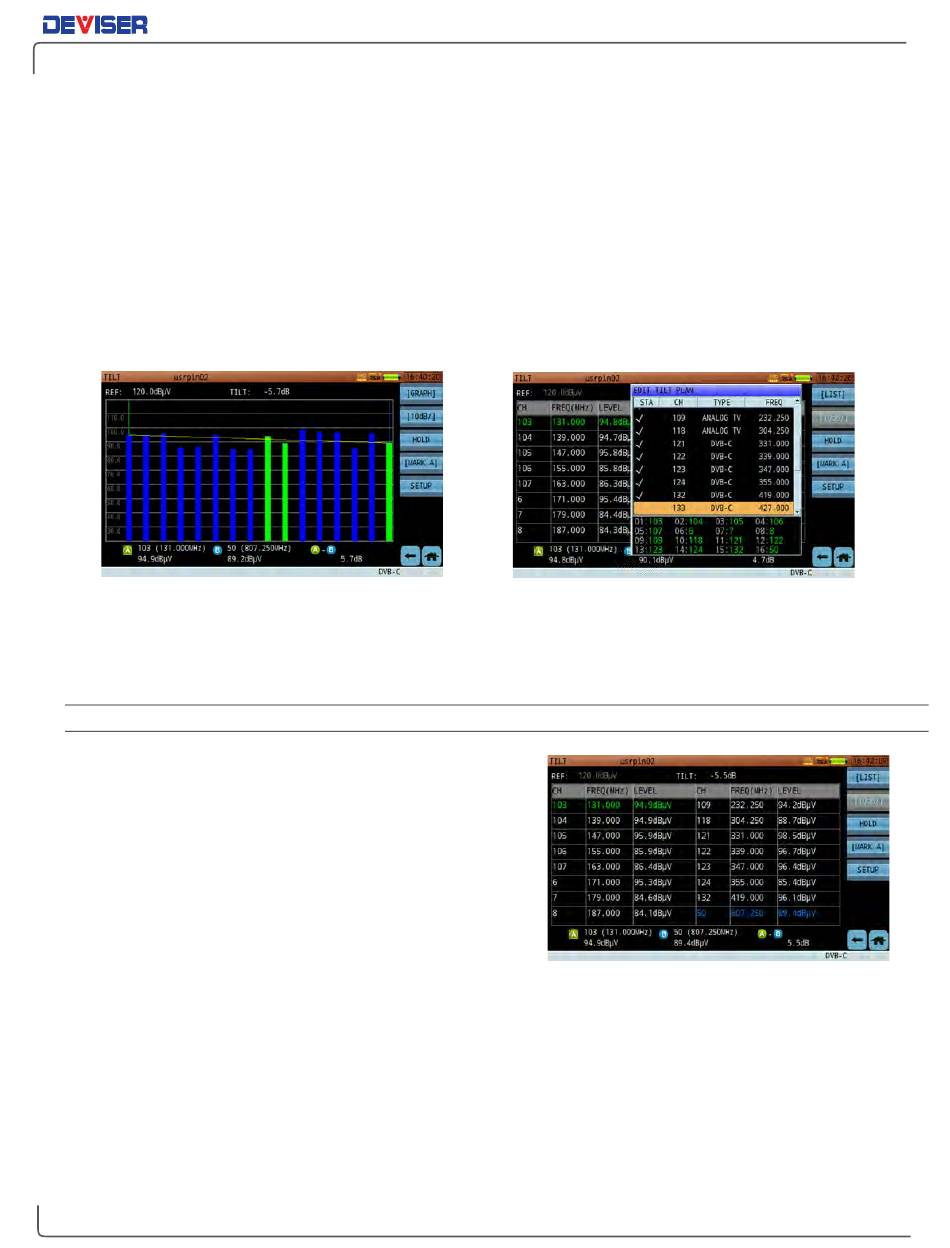

Tilt Measurement – Graph View
If you wish to re-select channels, tap Setup in the right menu. Channels are displayed with their type and
frequency. (See below figure.)
4-6.1 Settings
Button Operation
[Graph] / [List]: Toggles the measurement display
between Graph and List mode.
Hold: Pauses the measurement. Tap to resume.
[XdB/]: Sets the amplitude scale size. Tap
repeatedly to cycle through 10/5/2/1 dB
per division.
Setup: Opens the tilt plan editing dialog, allowing
you to select 4-16 channels to test.
Test Results
In Graph mode, all selected channels – no matter which – are organized by frequency from top to bottom.
The tilt value is measured between the two markers.
Analog channels measure the peak sync pulse of the video carrier, while digital channels measure average
power.
Part II: Settings and Measurements
Tilt Measurement –List View
