Rear View

007-4304-003
The rear of the controller enclosure has the following components (Figure 2-2):
• Host and drive interface minihubs — Up to eight removable GBIC or SFP
minihubs for connecting fiber optic host and drive interface cables to the controller
enclosure.
• Fan/communications canister — One removable canister that contains two cooling
fans and ethernet connections.
• Power supply canisters — Two removable canisters that contain the power
supplies.
Host Interface Minihubs
Power Supply Canister

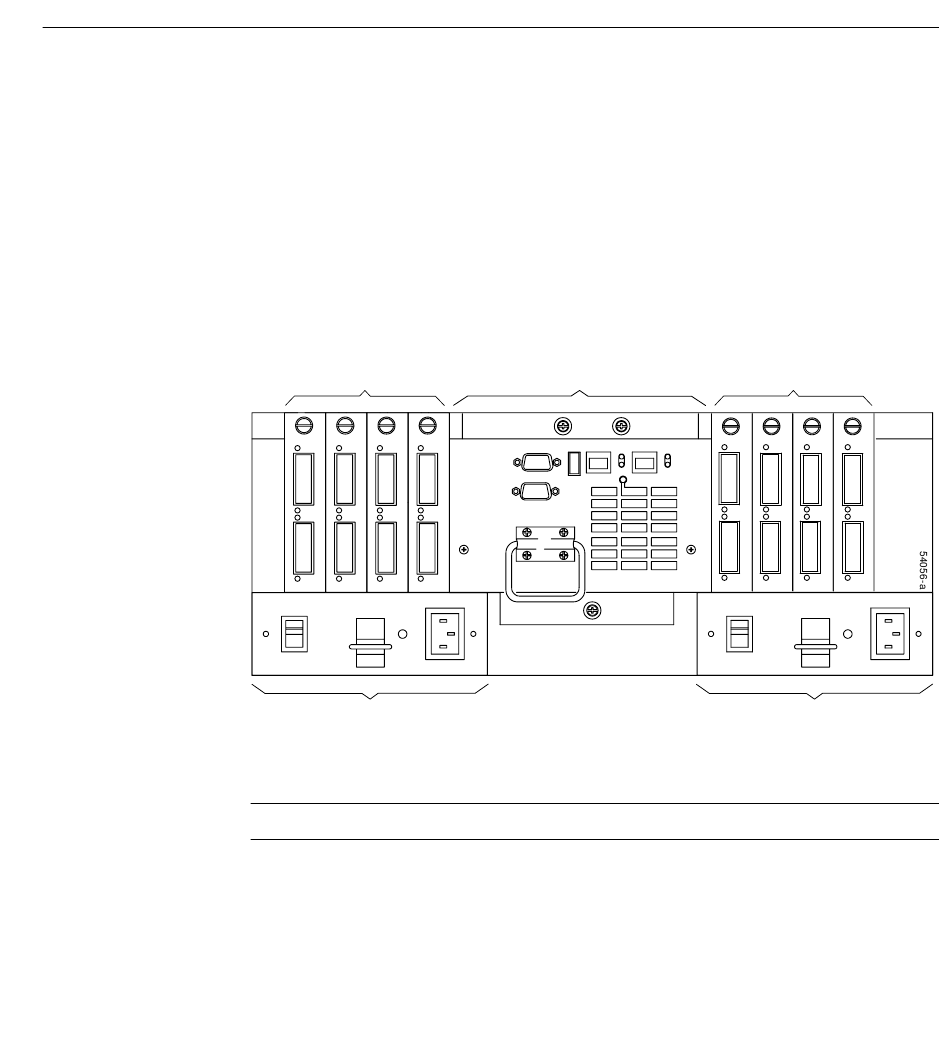

Figure 2-2 Rear View of the Controller Enclosure
Note: The minihubs pictured in Figure 2-2 are GBIC minihubs.
Fan/Communications Canister
Rear View
Drive Interface Minihubs
Power Supply Canister
