7: Drive Enclosure Component Replacement Procedures
108
5. Locate the failed power supply (its Fault light should be on).
6. Turn off the power and unplug the power cord from the failed canister.
7. Remove the power cord from the power cord clip.
8. Wearing antistatic protection, grasp the pull-ring on the locking lever and squeeze it
to unlatch the lever (Figure 7-4).
9. Pull open the lever and remove the failed canister.
10. Check the lever to make sure the orientation is the same as the canister it is
replacing. If not, move the lever to the pivot post on the other side (Figure 7-5).

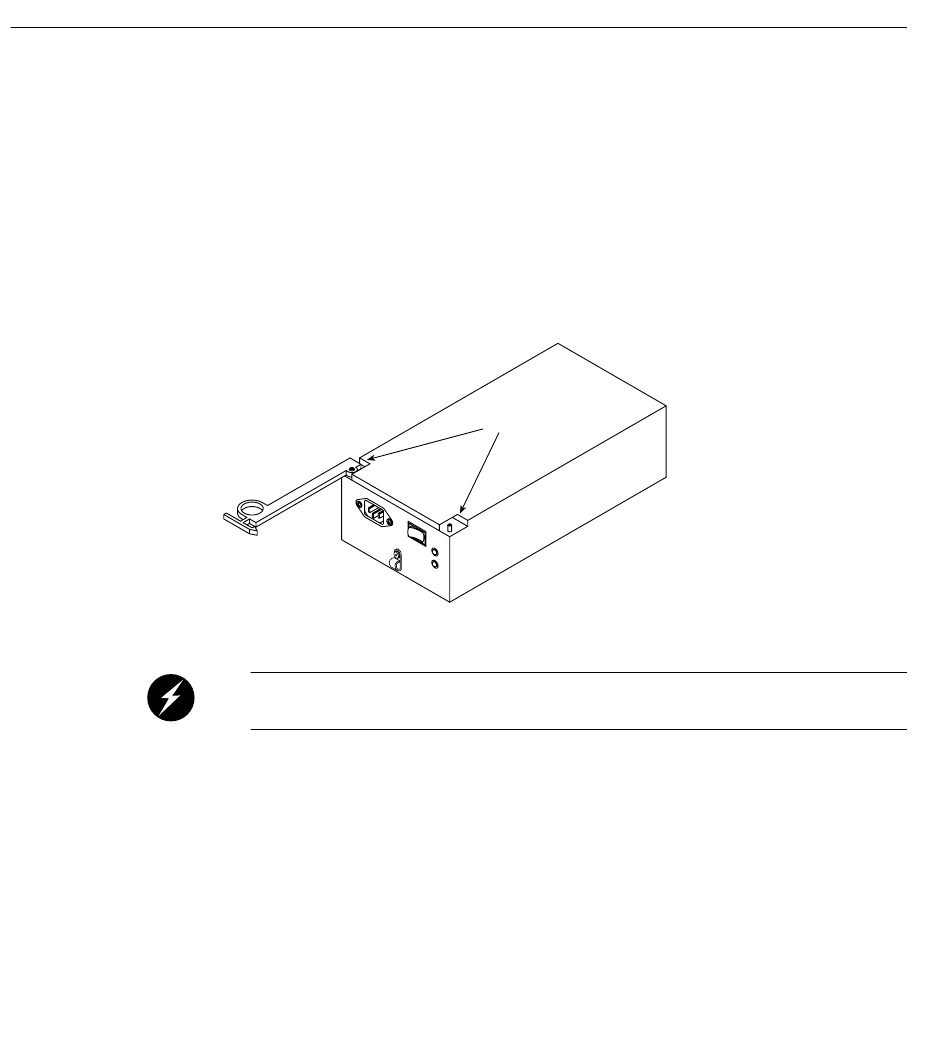

Figure 7-5 Power Supply Canister Lever
Warning:
Risk of shock. Make sure the power supply is turned off and
unplugged before you remove or install it.
11. Make sure that the power switch on the new power supply canister is turned off.
12. Wearing antistatic protection, slide the new power supply canister into the slot.
13. Close the lever and lock it into place.
14. Secure the power cord in the power cord clip.
15. Plug in the power cord and turn on the power switch.
16. Check that the Power indicator on the new canister is on and the Fault indicator is
off (Figure 7-4).
Pivot Posts
51041-a
007-4304-003
