Figure 7-2 Removing And Installing A Fan Canister - Silicon Graphics TP9400 RAID Owner's Manual

007-4304-003
Knob
Latch

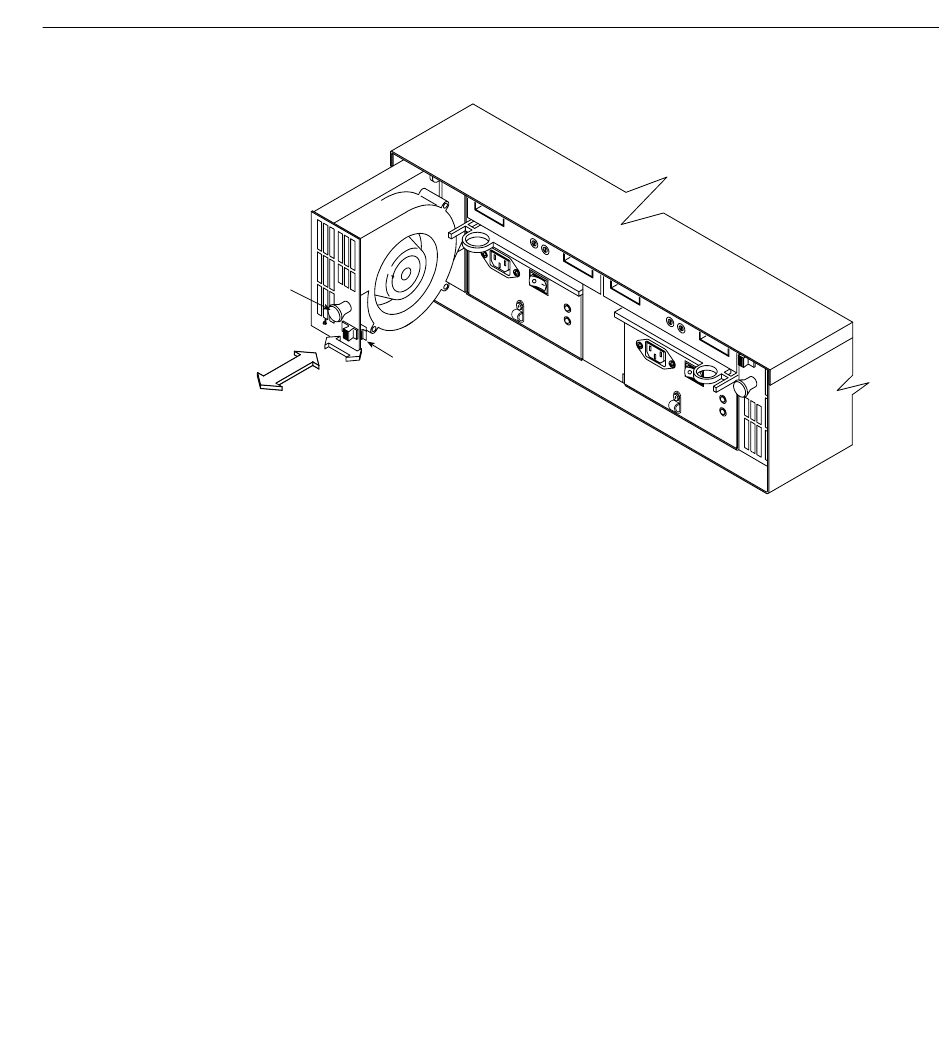

Figure 7-2 Removing and Installing a Fan Canister
7. Pull the knob to remove the canister.
8. Determine the correct orientation for the new fan canister. If replacing the canister
on the left, orient the unit so the latch is at the bottom. If replacing the right-side
canister, orient the unit so the latch is at the top.
9. Slide the new canister into the slot.
10. Push firmly until the latch snaps into place.
11. If you turned the power off, turn it back on.
12. Check the Fault indicators shown in Figure 7-3.
Replacing a Failed Fan Canister
