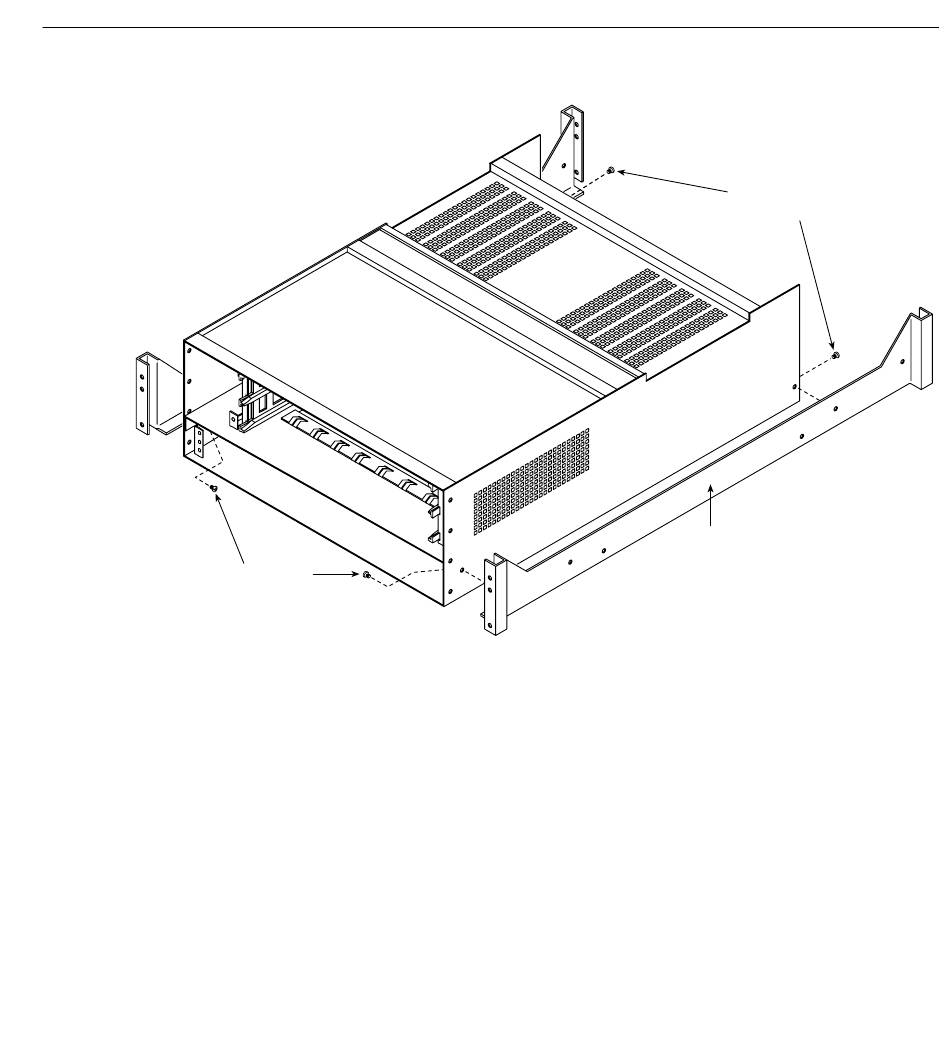

Figure 3-9 Removing The Controller Enclosure From The Rack - Silicon Graphics TP9400 RAID Owner's Manual

Front Mounting
Screws (16-32x3/8)
007-4304-003
Controller
Enclosure
Figure 3-9 Removing the Controller Enclosure from the Rack
4. Repeat steps 1 through 3 for any other controller enclosures to be moved.
5. To move or ship the controller enclosure, choose one of the following methods:
• If moving the controller enclosure to another rack, remove the support rails, if
applicable, and power cords from the old rack and install them in the new rack.
Then, install the controller enclosure in the new rack.
• If shipping the controller enclosure to another location, replace all canisters in
the controller enclosure. Carefully pack the unit in its original shipping
container. If the rack at the new location is not preconfigured with the support
rails, you will also need to remove them and ship them.
Moving the Controller Enclosure
Rear Mounting
Screws (16-32x3/8)
Support Rails
Installed in Rack
