2: The Controller Enclosure

Controller Enclosure Interface Components

8
The rear of the controller enclosure can accommodate up to eight minihub canisters: Up
to four front end (host) and up to four back end (drive) minihubs (Figure 2-3). Each
minihub has two Fibre Channel connectors. You connect the host- or drive-interface
cables to the respective minihubs. For more information on these connectors, see the
sections "Diagnostic Interface Connectors" on page 19, "Host Interface Connectors" on
page 24, and "Drive Interface Connectors" on page 25.
Host Minihubs
Controller A Controller A
Port 1 Port 2
Controller B Controller B
Port 1 Port 2

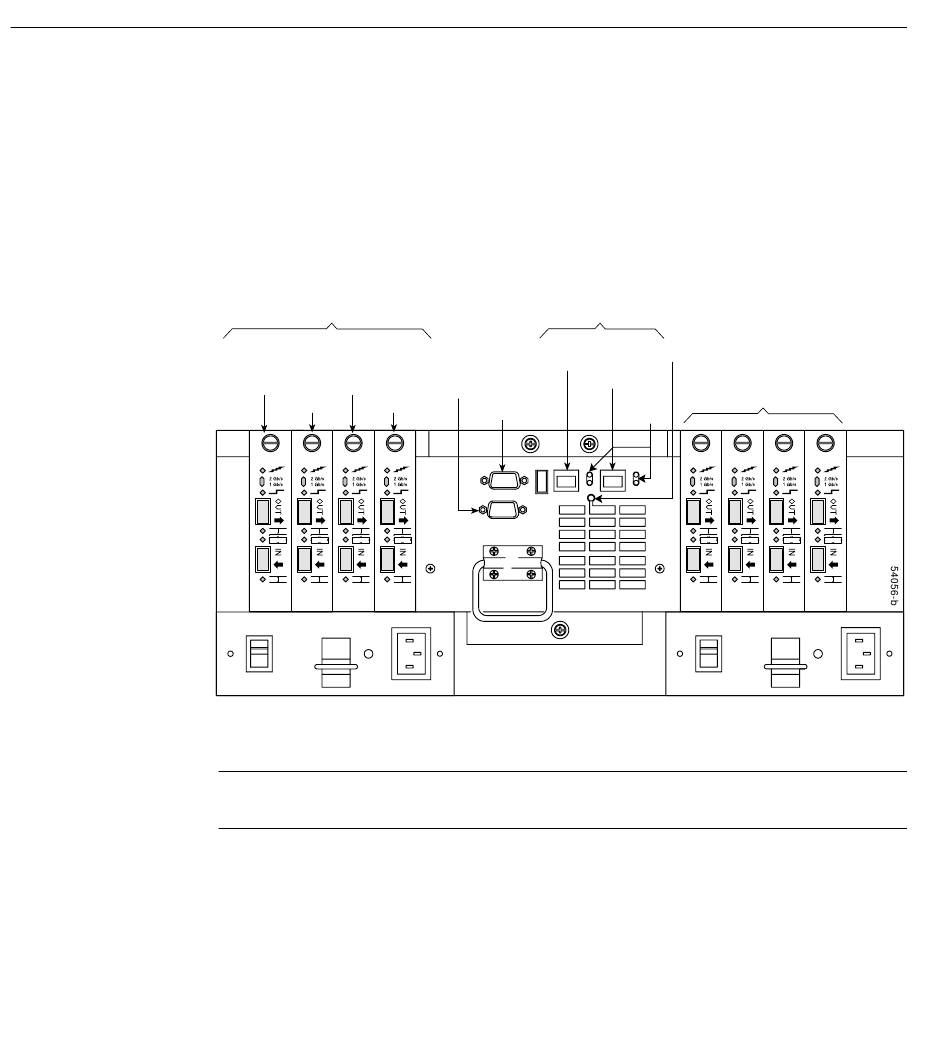

Figure 2-3 TP9400 Interface Components
Note: The minihubs shown in Figure 2-3 are SFP minihubs. The basic interface
connections are the same for GBIC and SFP minihubs.
For information about replacing these components, refer to Chapter 4, "Controller
Enclosure Component Replacement Procedures".
Ethernet
Controller A
RS-232
Controller B
Controller B
Controller A
Fan/Communications
Fault LED
Drive Minihubs
Status
LEDs
