Controller B
Port 1
Controller A
Port 1
007-4304-003
Note: When you install a 2 GB interface controller in a switched configuration, you
MUST remove the SFP transceiver from the lower fibre channel connector on each front
end (host) minihub that is connected to the switch.

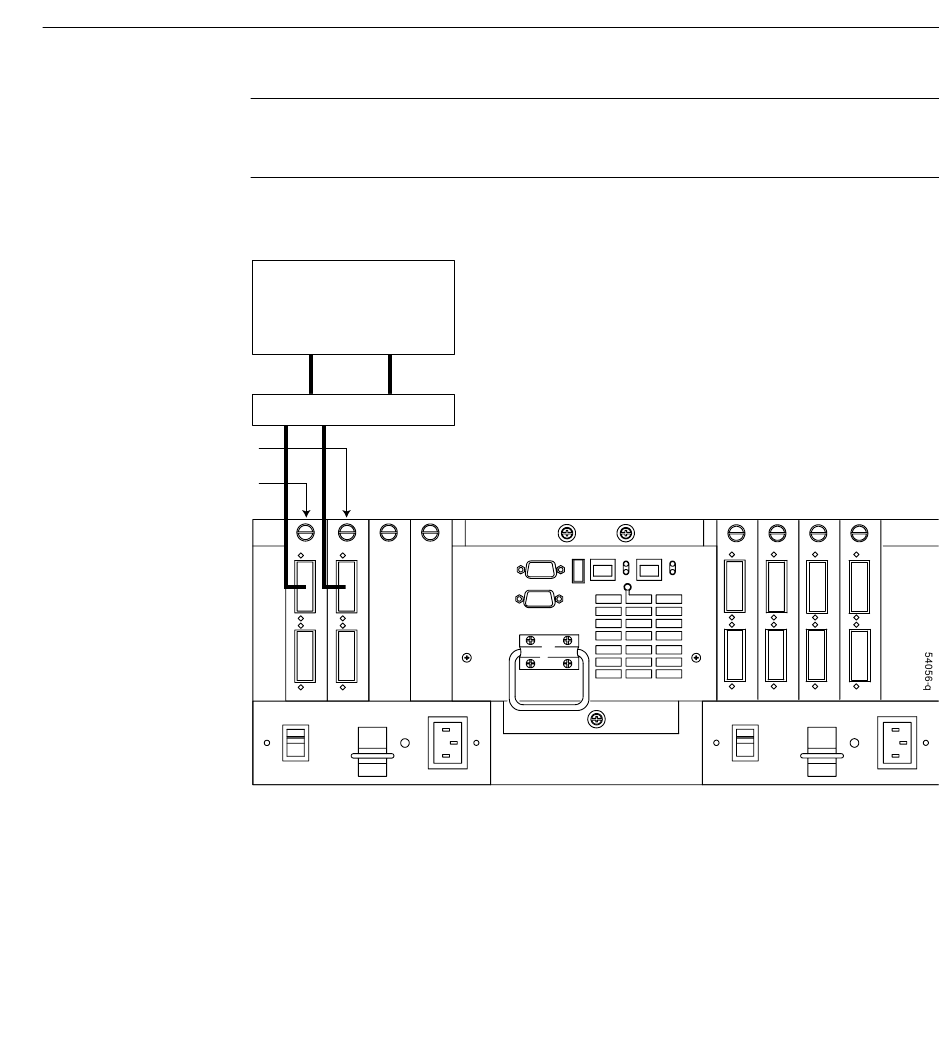

Figure 8-10 shows a simple switch configuration.
Host A
1
2
Switch
Switch Connect — 1 Host - 2 HBA
Figure 8-10
Figure 8-11 shows a dual hosted switch configuration.
Connecting the TP9400 to the Hosts
133
