5: The Drive Enclosure

Fan Canister

78
Air Vent
Locking Lever
Latch
1 2

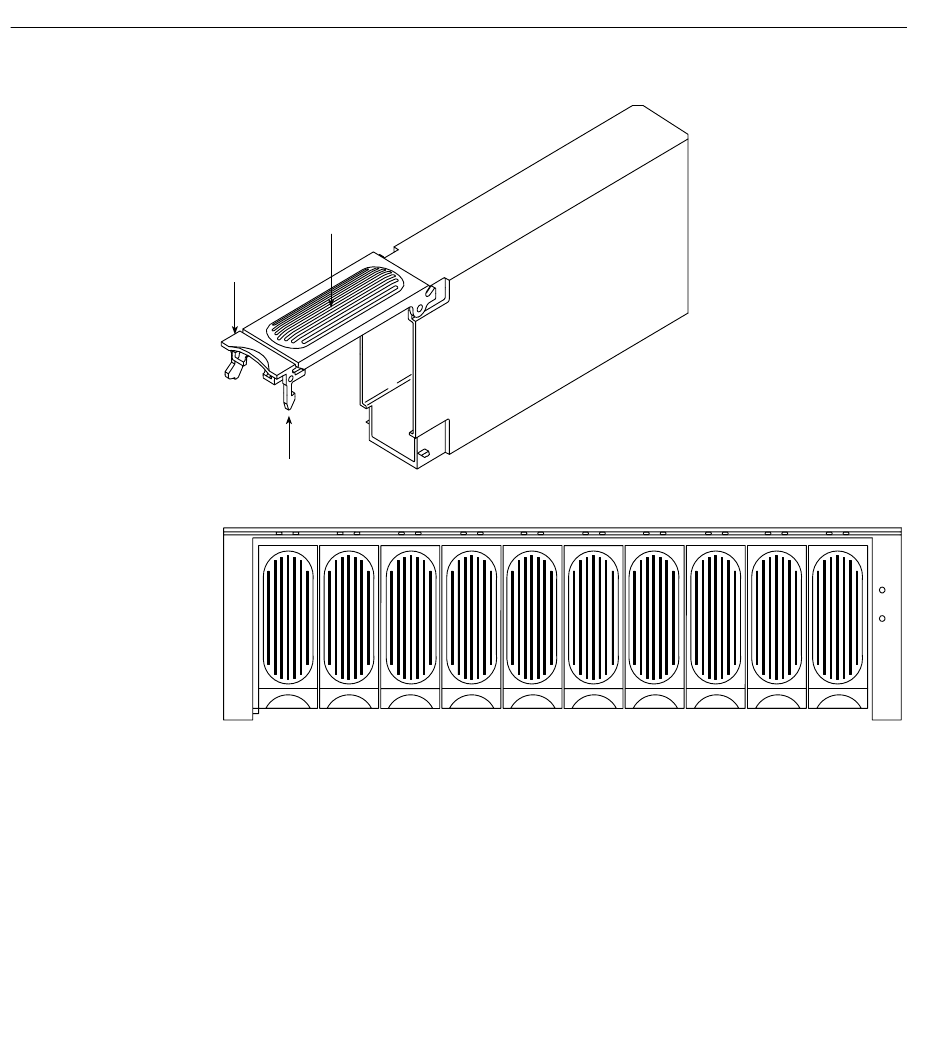

Figure 5-4 Drive Sleds and Drive Numbering
The drive enclosure's cooling system consists of two fan canisters, each containing two
fans. The fan canisters circulate air inside the drive enclosure by pulling air in through
the vents on the front of the drive sleds and pushing the air out the vents in the rear of
each fan canister (Figure 5-5). The two fan canisters provide redundant cooling. If one fan
3 4 5 6 7 8 9
48099-a
