SFP Transceiver

Captive screw
Interface cable connections,
Fibre channel connections
and indicators
SFP Transceiver
Interface cable
007-4304-003
An SFP (Small Form-factor Pluggable) transceiver is a module that fits into the rear of an
SFP minihub located at the rear of the 2 GB controller enclosure (Figure 2-16). Each SFP
minihub has two SFP transceivers. You connect the host-interface or drive-interface
cables to the respective SFP transceiver, which passes the signal to the minihub.

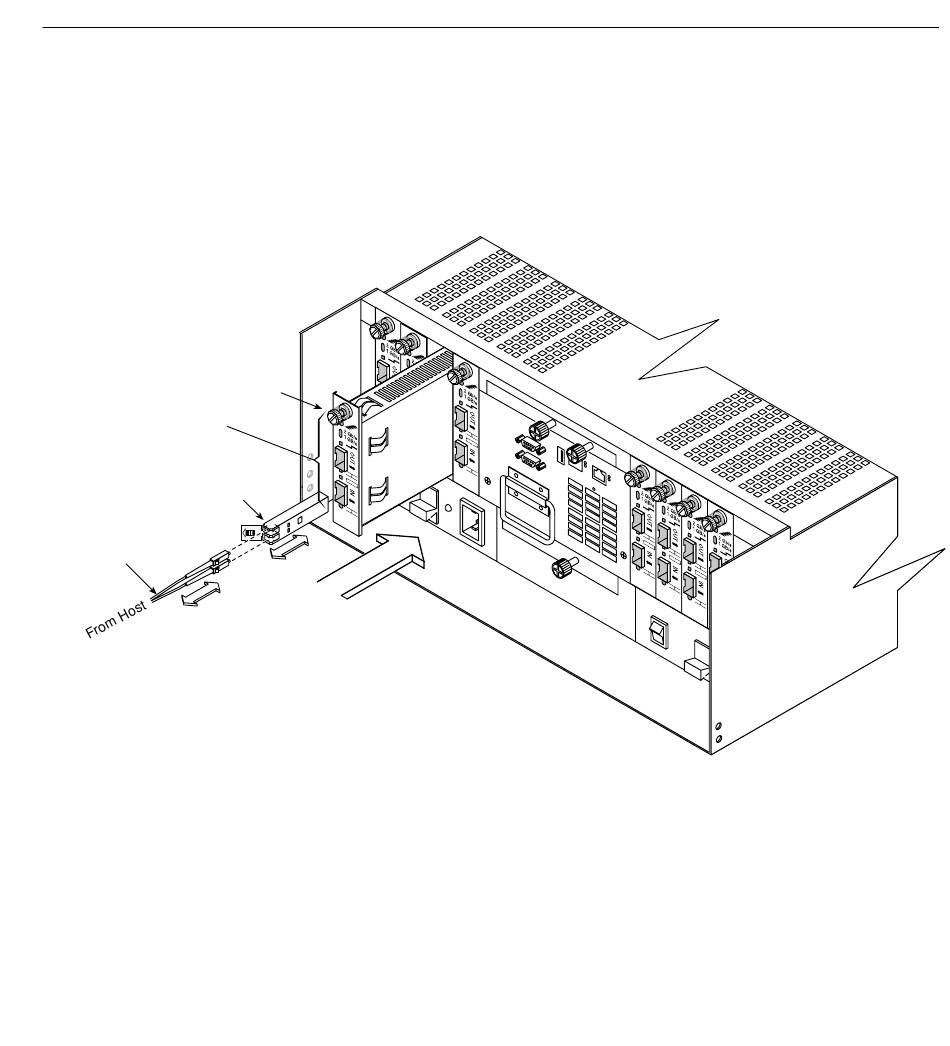

Figure 2-17 Removing and Installing an SFP Transceiver
You can hot swap a failed SFP transceiver, replacing it while the controller enclosure is in
operation. If you replace the SFP transceiver and continue to experience problems, the
controller enclosure may have defective components or connections. Check the storage
management software (TPSSM7) for indications of other component failures.
Controller Enclosure Components
54053-b
27
