007-4304-003
Latch

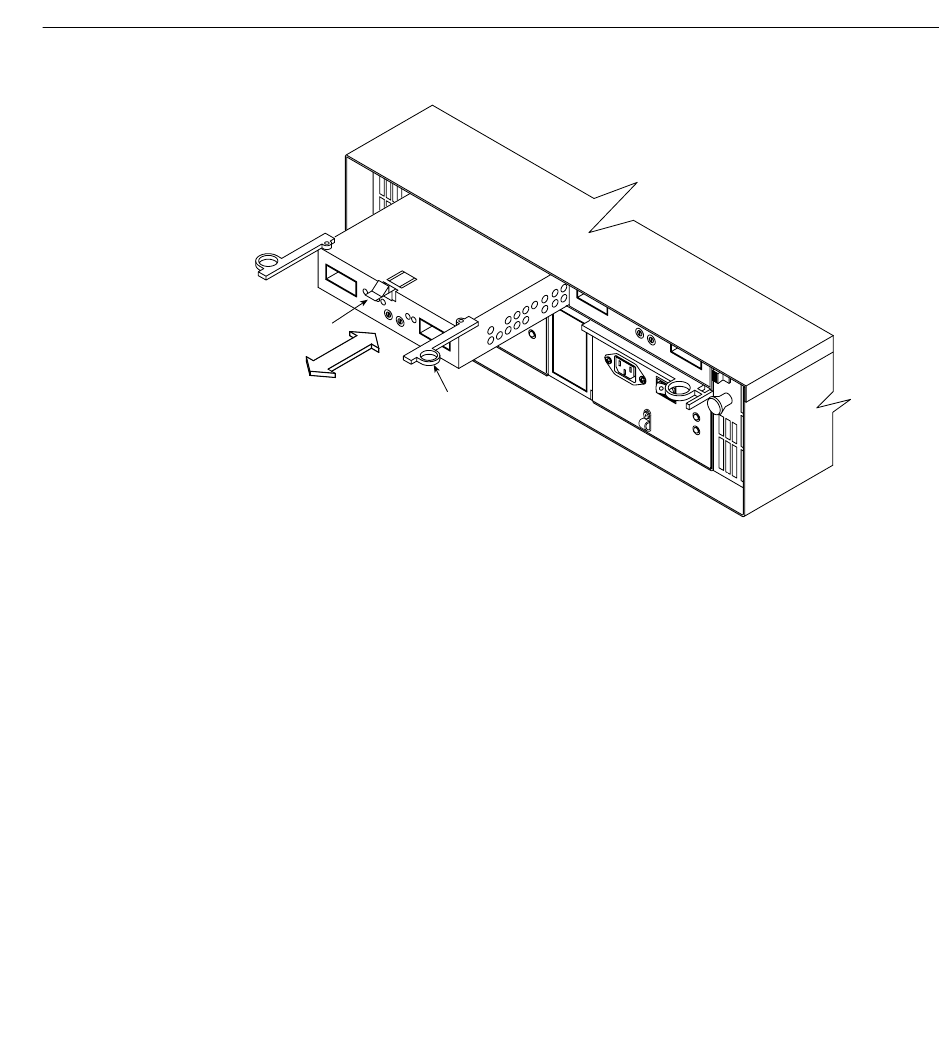

Figure 7-8 Removing and Installing an Environmental Status Module
8. The levers will pop out of the locked position.
9. Grasp the pull-rings and pull on the levers to remove the failed canister.
10. Wearing antistatic protection, slide the new environmental card canister all the way
into the empty slot.
11. Close both levers until the latch locks into place.
12. Attach the GBICs and Fibre Channel interface cables to their original locations.
13. Check the Power and Fault indicators on the new canister (Figure 7-7).
• If the Power indicator is off, the canister may not have been inserted correctly.
Remove the canister and reinsert it.
• If the Fault indicator is on, the Power indicator stays off, or any other Fault
indicator is on, refer to the storage management software (TPSSM7) for problem
determination.
14. Refer to the storage management software (TPSSM7) for instructions on bringing
the environmental status module online.
Replacing a Failed Environmental Status Module
Lever
55020
113
