Front Indicator Lights

Summary Power Indicator
Power Supply Fault Indicator
Controller Fan Fault Indicator
Summary Controller Fault
Indicator
Fast Write Cache Indicator
007-4304-003
2. Check the indicators on the front of the controller enclosure ("Front Indicator
Lights" on page 37).
3. Check the indicators on the rear of the controller enclosure ("Rear Indicator Lights"
on page 39).
4. If all indicators show a "normal status," replace the front cover (Figure 3-1 on
page 29). If the indicator lights show a fault, run the storage management software
(TPSSM7) to diagnose and repair the problem.

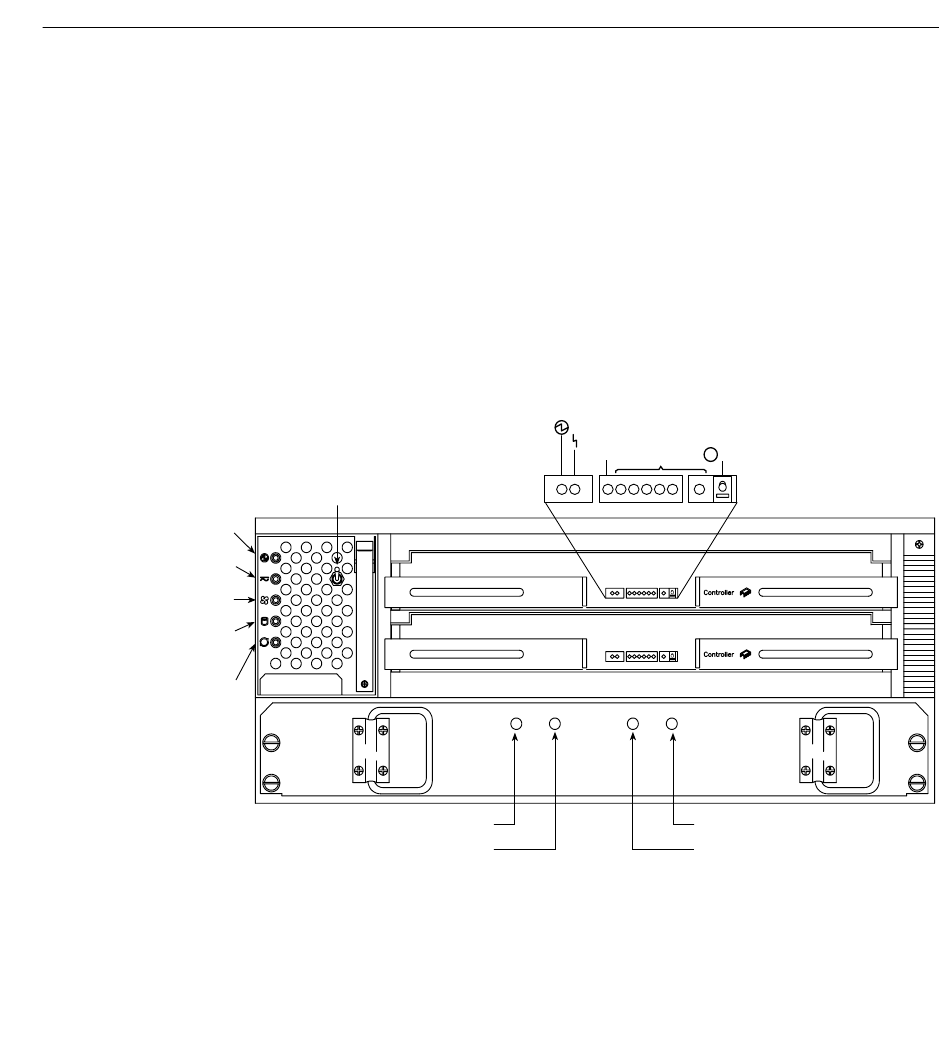

Figure 3-5 and Table 3-1 describe the indicator lights on the front of the controller
enclosure.
Audible Alarm Switch
Up = On
Down = Off
Fault-B Indicator
Full Charge-B Indicator
Indicator Lights (Front)
Figure 3-5
Checking the Controller Enclosure Indicator Lights
Power
Fault
Heartbeat
R Reset
Status
Full Charge-A Indicator
Fault-A Indicator
54067-b
