2: The Controller Enclosure
Host Interface Connectors
24
There are up to four host minihubs, two per controller (Figure 2-14). Minihubs 1 and 3
correspond to the top controller (controller A) and minihubs 2 and 4 correspond to the
bottom controller (controller B). Each minihub provides host loop capability and
self-diagnostic features. To ensure redundancy, you must connect each host to each
controller board.
Controller A
Controller B
Host Minihubs (GBIC)
Controller A Controller A
Port 1 Port 2
Controller B Controller B
Port 1 Port 2

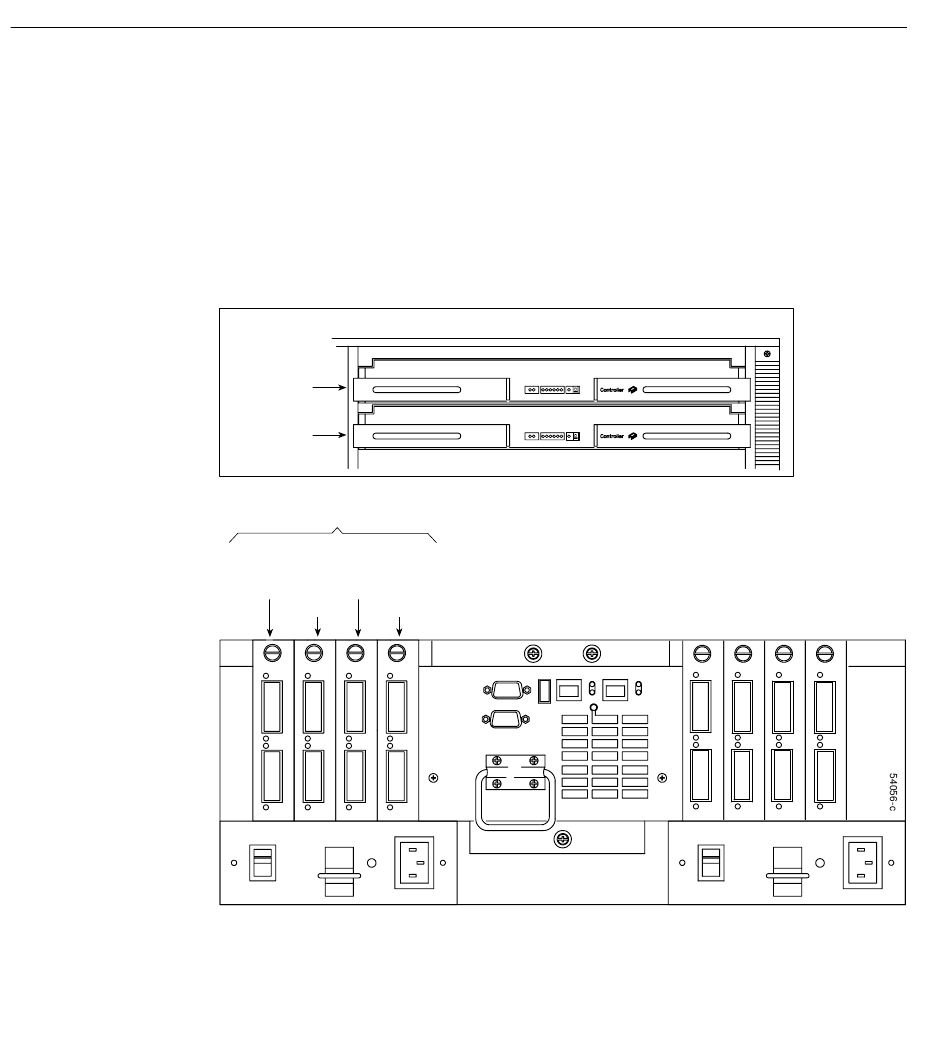

Figure 2-14 Controller Enclosure Host Interface Connectors
Front of Controller Tray
