5: The Drive Enclosure

Power Supply Canister

80
If both fan canisters fail or cannot maintain the internal temperature below 70˚ C (158˚
F), the drive enclosure will automatically shut down. If this occurs, you must cool the
drive enclosure and restart it. See "Overtemp Condition" on page 87 for more
information.
The drive enclosure's power system consists of two power supply canisters (Figure 5-6).
The power supply canisters provide power to the internal components by converting
incoming AC voltage to DC voltage. One power supply canister can maintain electrical
power to the drive enclosure if the other power supply is turned off or malfunctions. The
power supply canisters are interchangeable by reversing the locking levers (Figure 5-7).
Power Supply Canister

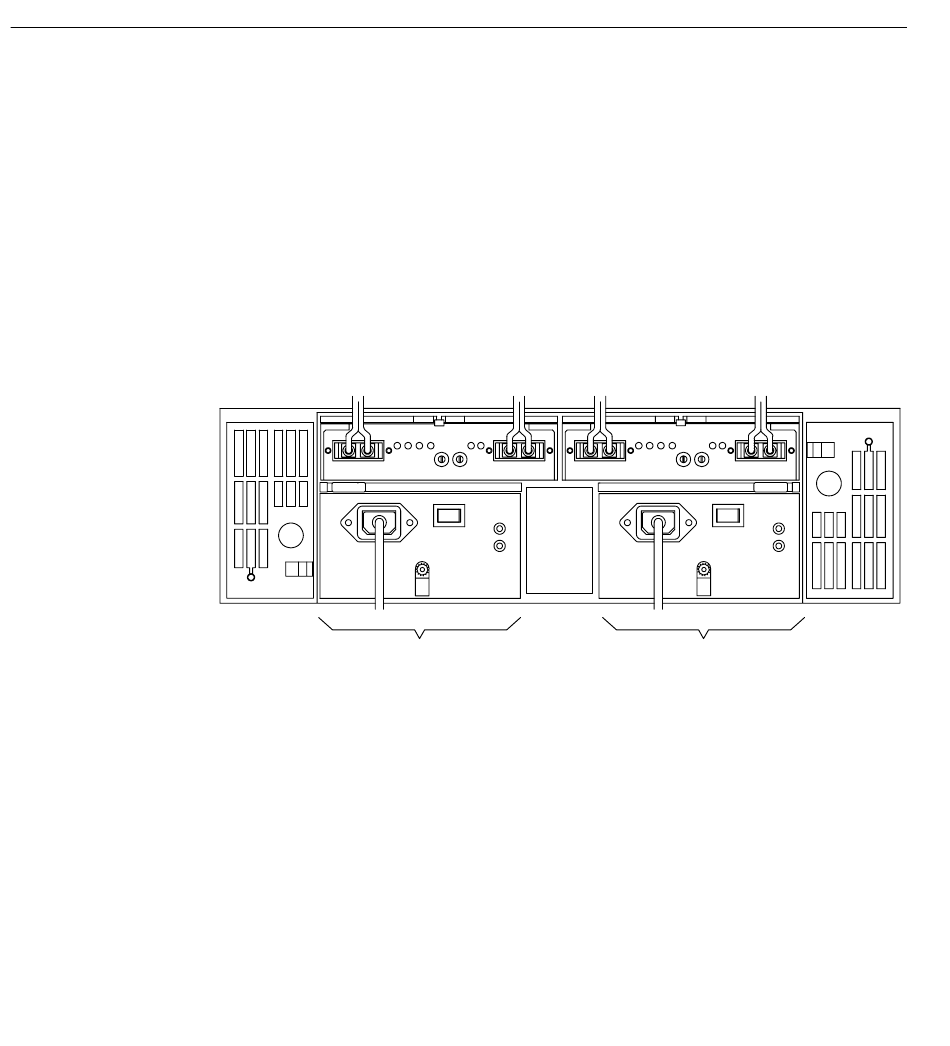

Power Supply Canisters in a Drive Enclosure
Figure 5-6
Power Supply Canister
007-4304-003
55009-b
