Replacing A Failed Minihub Canister; Figure 4-14 Removing And Installing An Sfp Transceiver - Silicon Graphics TP9400 RAID Owner's Manual

4: Controller Enclosure Component Replacement Procedures
Captive screw
nterface cable connections,
Fibre channel connections
and indicators
SFP Transceiver
nterface cable

Replacing a Failed Minihub Canister

70
Removing and Installing an

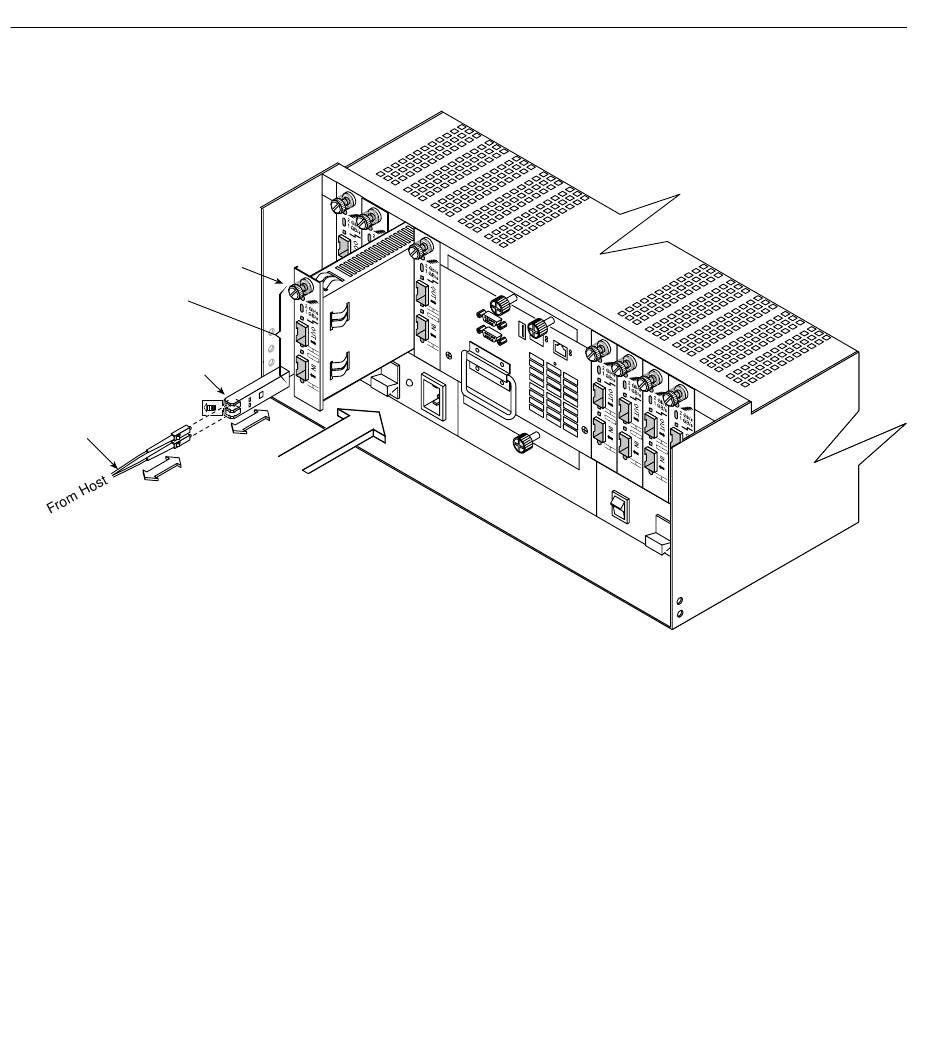

Figure 4-14
4. Remove the failed SFP transceiver from its minihub slot (Figure 4-14).
5. Insert the new SFP transceiver into its minihub slot.
6. Reconnect the interface cables.
At the system console, reenable the interface.
Use the following procedure when instructed by the storage management software
(TPSSM7) to replace a GBIC or SFP minihub canister.
SFP transceiver
54053-b
