Drive Interface Connectors
007-4304-003
Note: Figure 2-14 shows a GBIC host interface. The connectors are in the same locations
on an SFP host interface.
Each drive minihub canister represents a single drive channel (Figure 2-15). The drive
channels are set up in pairs to support two data paths to each drive (redundant drive
loop configurations). Each pair supports up to 11 drive enclosures, containing 10 drives
each, or up to 110 drives.

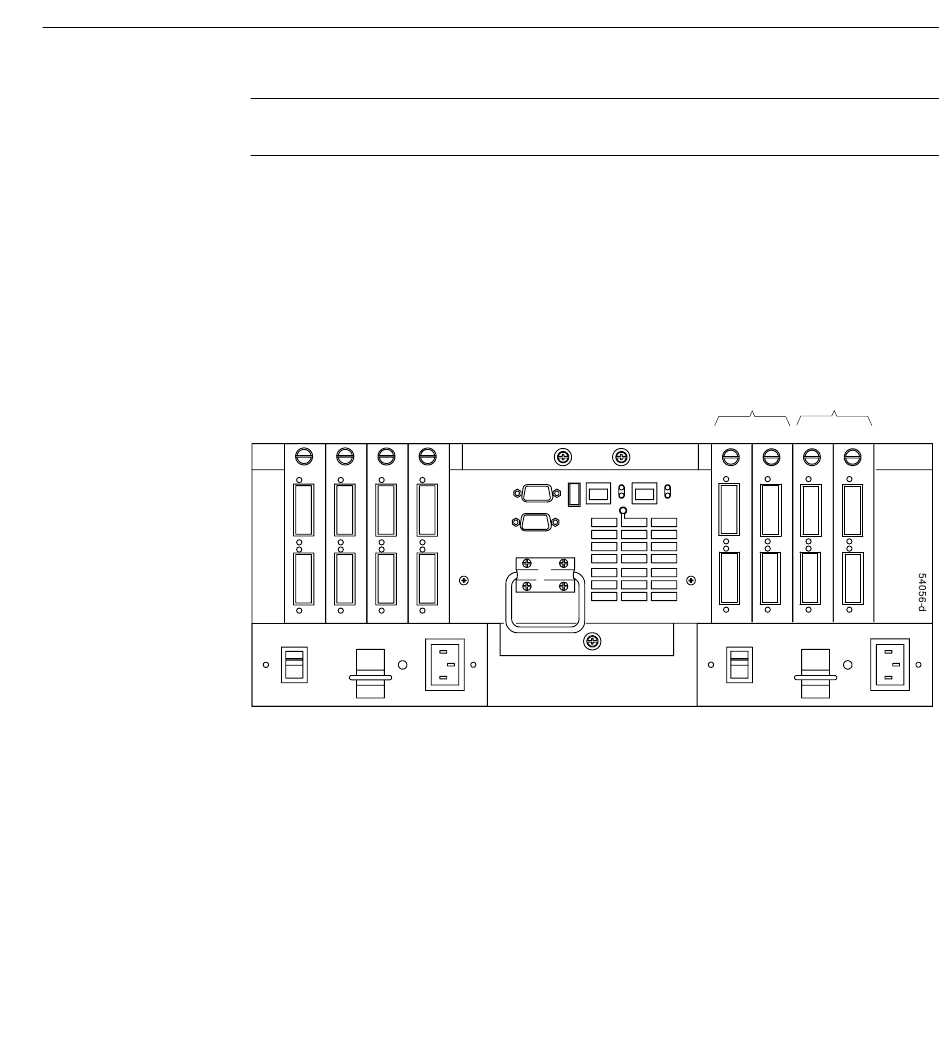

Controller Enclosure Drive Minihub Connectors (Rear)
Figure 2-15
Controller Enclosure Components
Drive Minihubs
Drive Channels
Pair 1 Pair 2
0 1 2 3
