Figure 3-7 2 Gb Interface Controller Rear Indicator Lights (Sfp) - Silicon Graphics TP9400 RAID Owner's Manual

3: Controller Enclosure Operation
Component Indicator Light
Loop Good Indicator Green
Power Supply Power Supply
Canisters Indicator
a. Always use the storage management software (TPSSM7) to precisely identify the failure.
Link Rate Indicator
Link Rate Switch
Up=2Gb, Down=1Gb
Fault Indicator
Bypass Indicator
Loop Good Indicator
Bypass Indicator
42
Table 3-2 (continued)
Color
Green

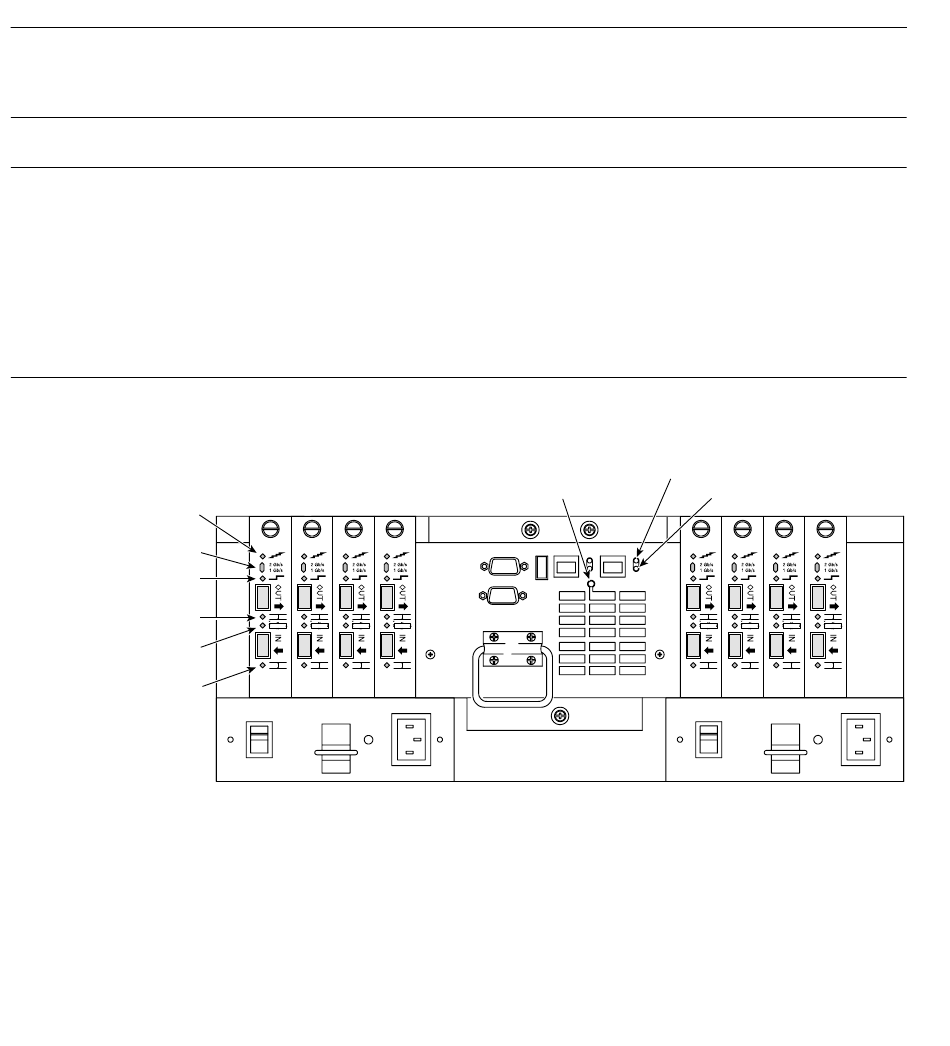

2 GB Interface Controller Rear Indicator Lights (SFP)
Figure 3-7
1 GB Interface Controller Rear Indicator Lights (GBIC)
Normal Problem
Operation Indicator
On Off
On Off
Fan/Comm Fault Indicator
Condition Indicated a
Drive loop is not operational; faulty device
may be connected to minihub; minihub
failure; drive failure; power failure.
If a drive-side minihub is not connected to
a controller, the green light will always be
off and the Fault light will always be on.
Power switch is off; power cord
unplugged; power supply failure; power
supply is overheated.
100BT Indicator
Module Link Indicator
