007-4304-003

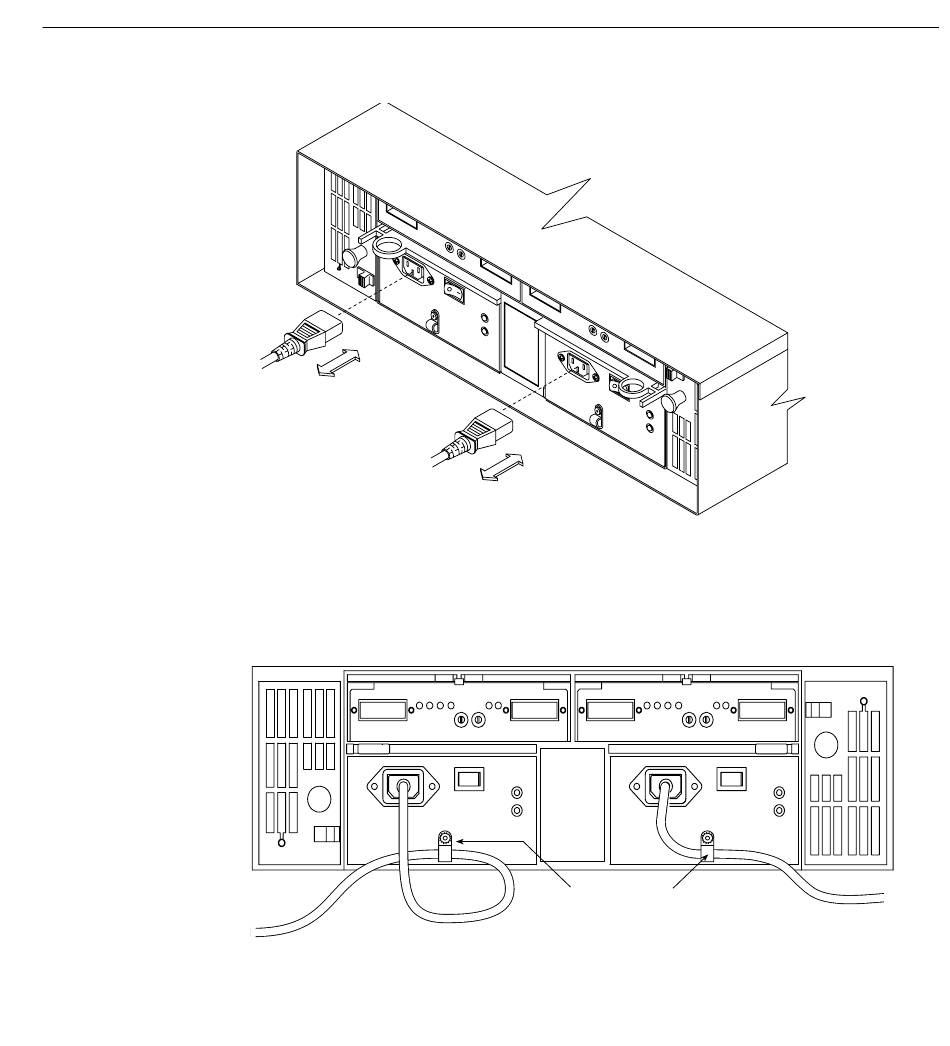

Figure 8-15 Connecting the Drive Enclosure Power Cords
6. To keep the power cords from being accidently pulled from the power connections,
secure the cords in the strain relief power cord clips. Figure 8-16 shows how the
cords should be secured.
Figure 8-16 Securing the Power Cords in the Cord Clips
Power Cord Strain Relief Clips
Powering Up the TP9400
55021
55008-h
139
