7. Plug all drive enclosure power cords into the Power Distribution Units. Plug the left
power cords into the left PDU and the right power cords into the right PDU.
Note: For details on power requirements, refer to Appendix A, "Specifications and
Requirements".
8. To assure power redundancy, plug each Power Distribution Unit into a separate AC
power source.
9. Turn on both power switches on the rear of each drive enclosure (Figure 8-17).

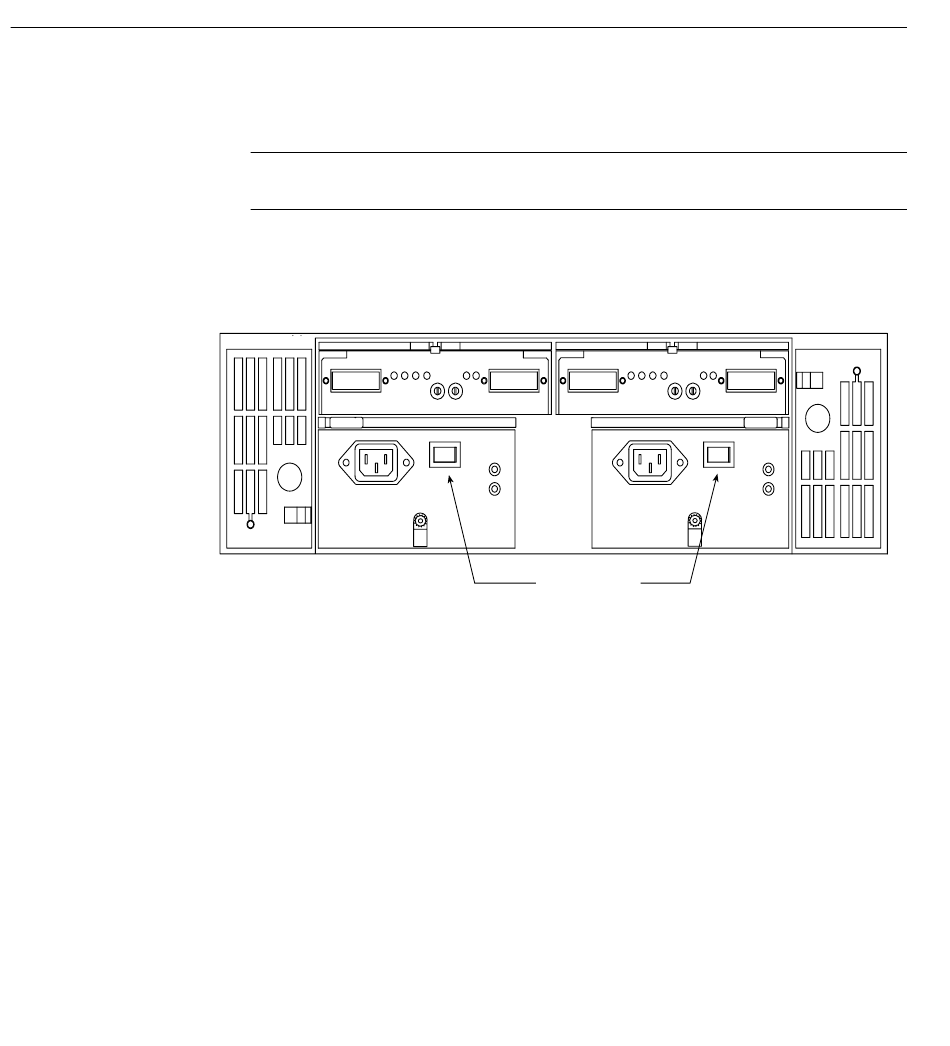

Figure 8-17 The Drive Enclosure Power Switches
10. Turn on both power switches on the rear of each controller enclosure (Figure 8-18).
Power Switches
55008-b
