Gbic Module; Figure 5-9 Environmental Status Module Indicators And Connectors - Silicon Graphics TP9400 RAID Owner's Manual

GBIC Module

007-4304-003
Overtemp Indicator
Fault Indicator
Power Indicator
In Bypass Indicator
Enclosure ID Switches
Example of Setting
Enclosure ID Switches
1
2
x10 x1
Tray Number
Lever
Connector In
Connector Out

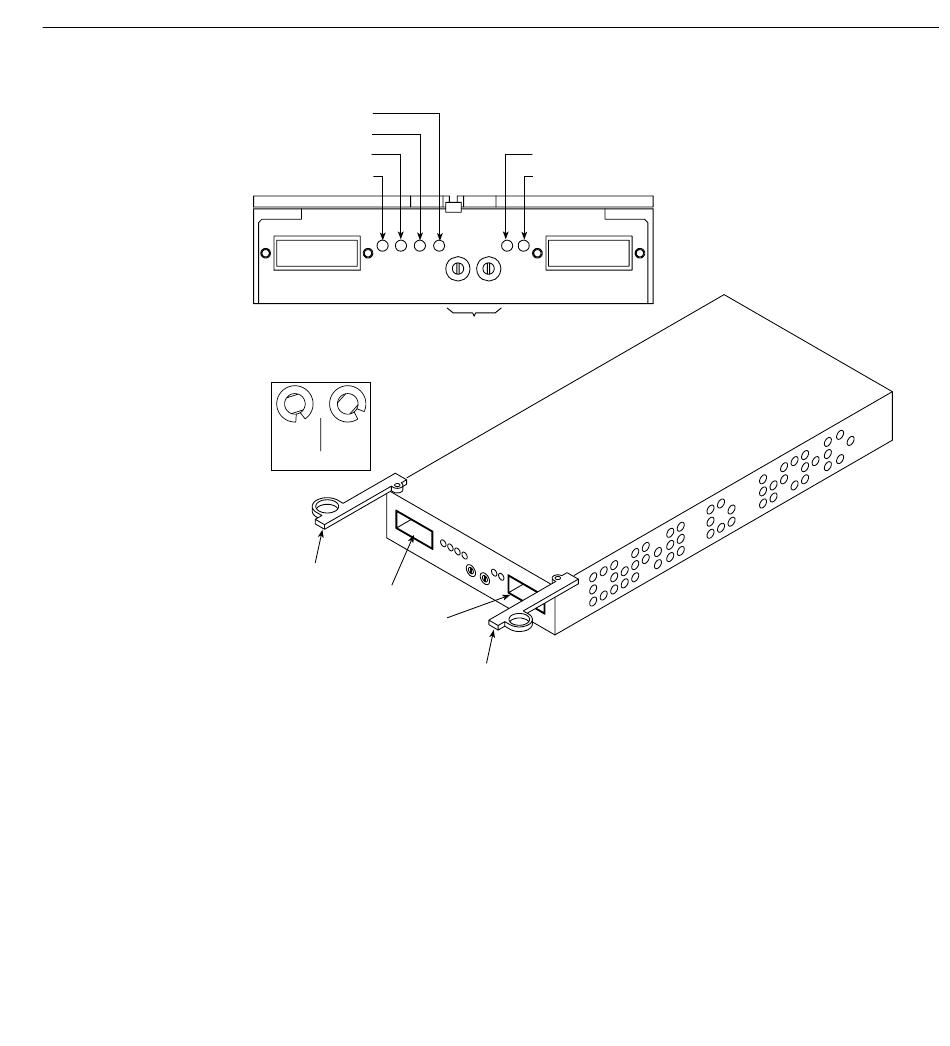

Figure 5-9 Environmental Status Module Indicators and Connectors
See "Checking the Drive Enclosure Indicator Lights" on page 92 for a description of the
environmental status module indicators.
A GBIC (Gigabit Interface Converter) is a module that fits into the environmental status
module located at the rear of the drive enclosure (Figure 5-10). Each environmental
status module has up to two optical GBIC modules which are replaceable. You can hot
swap a failed GBIC module, replacing it while the drive enclosure is in operation.
ID Conflict Indicator
Out Bypass Indicator
Lever
