7: Drive Enclosure Component Replacement Procedures
!
110
Caution: Bending or damaging Fibre Channel cables can result in degraded
performance or data loss. Fibre Channel cables are fragile. Do not pinch the cables
with tie wraps, step on them, or bend at them sharp angles.
Bypass
Indicator

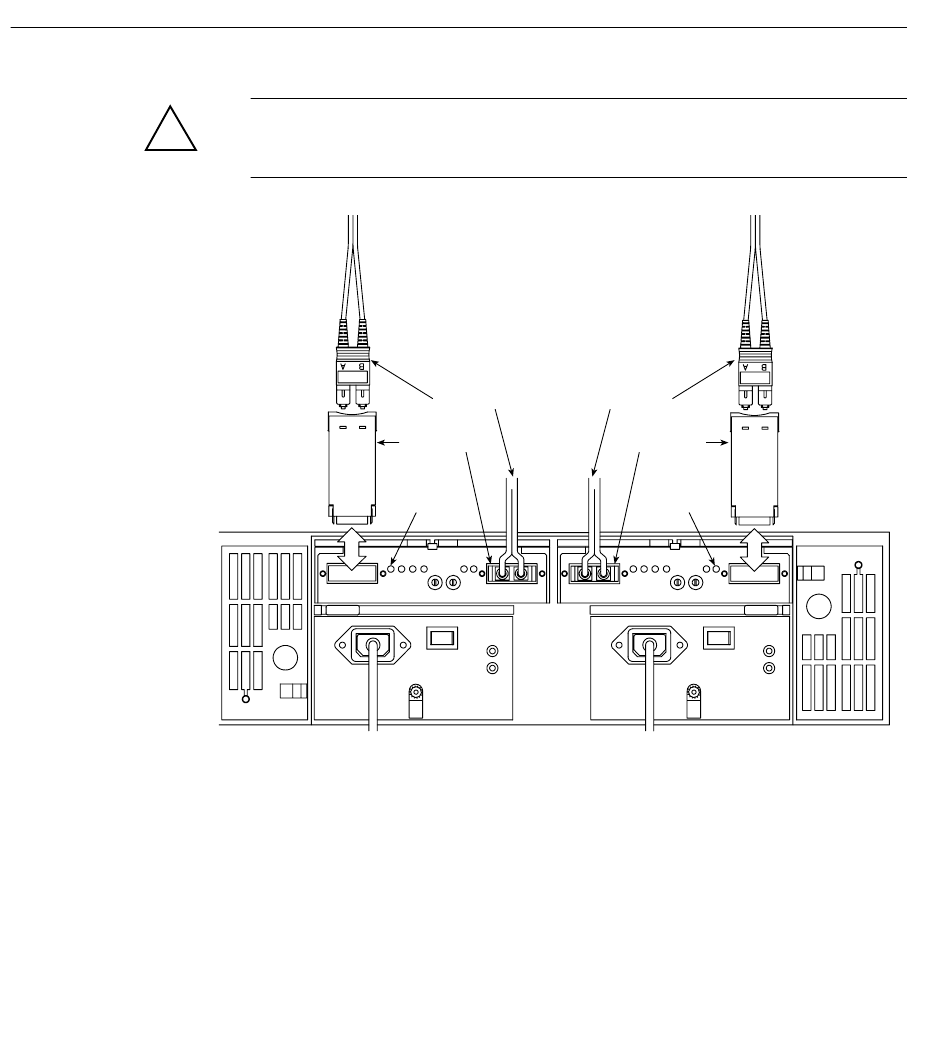

Figure 7-6 Removing and Installing a GBIC
6. Remove the failed GBIC from the environmental status module.
7. Insert the new GBIC into the environmental status module.
8. Connect the Fibre Channel cables to the new GBIC.
9. Check the Bypass indicator next to the failed GBIC (Figure 7-6).
Fibre Cables
Optical GBICs
Fibre Cables
Optical GBICs
Bypass
Indicator
55035-a
007-4304-003
