8: Cabling
138
1. Make sure the switches on the Power Distribution Units (rear of the rack inside the
access panel) are in the off position.
2. Make sure both power switches on the controller and drive enclosures are off.
3. Plug the controller enclosure power cords into the controller enclosure power
supplies (Figure 8-14).
AC Power
Cord
Power Switches in
Off Position

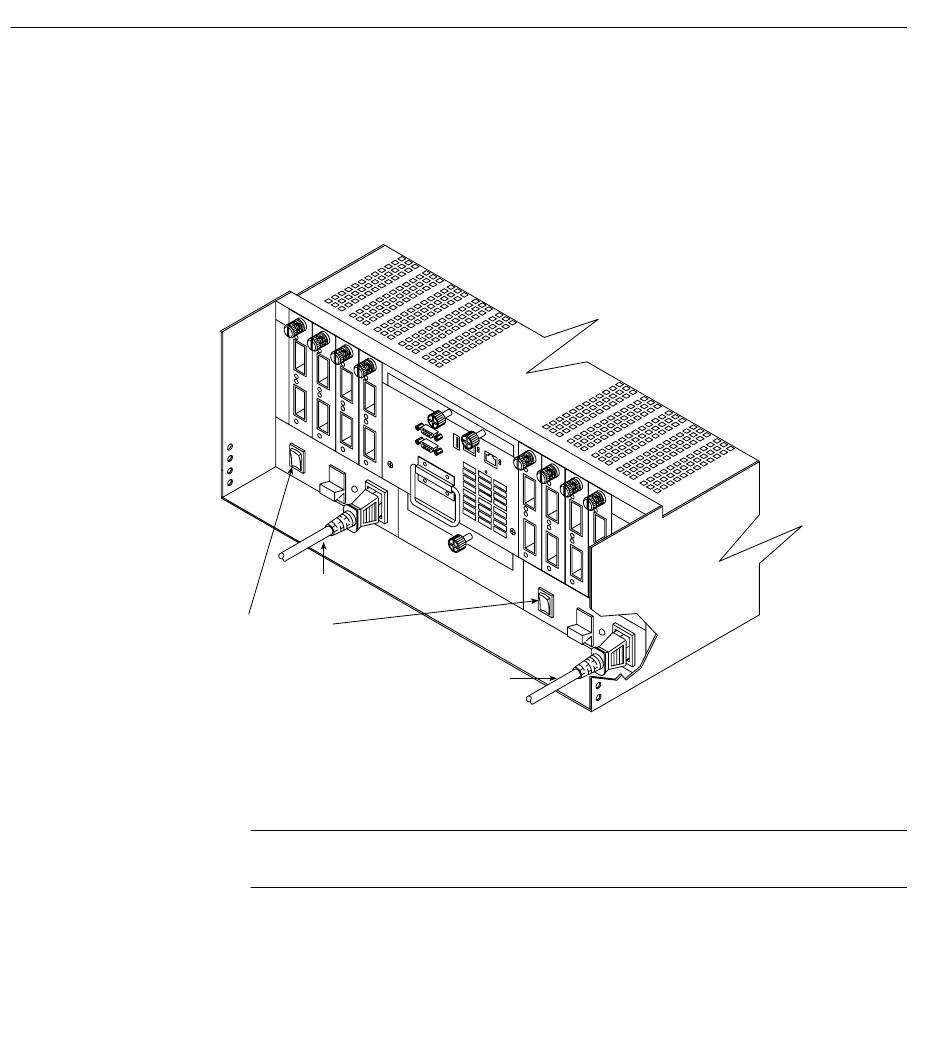

Figure 8-14 Connecting the Controller Enclosure Power Cords
4. Plug the controller enclosure power cords into the Power Distribution Units. Plug
the left power cords into the left PDU and the right power cords into the right PDU.
Note: For details on power requirements, refer to Appendix A, "Specifications and
Requirements".
5. Plug the drive enclosure power cords into each power supply in the drive
enclosures (Figure 8-15).
AC Power
Cord
54079-c
007-4304-003
