Power Cords and Receptacles
007-4304-003
The rack is shipped with three types of power cords:
• Component power cord — Connects from each component to the PDU.
• Domestic power cord — Connects from the PDU to an independent 20 A circuit
breaker.
• International power cord — Connects from the PDU to an independent 20 A circuit
breaker.
The Power Distribution Unit has two outlets for connecting the power cords from
devices installed in the rack. Figure A-5 shows the connectors and receptacles for these
cords.

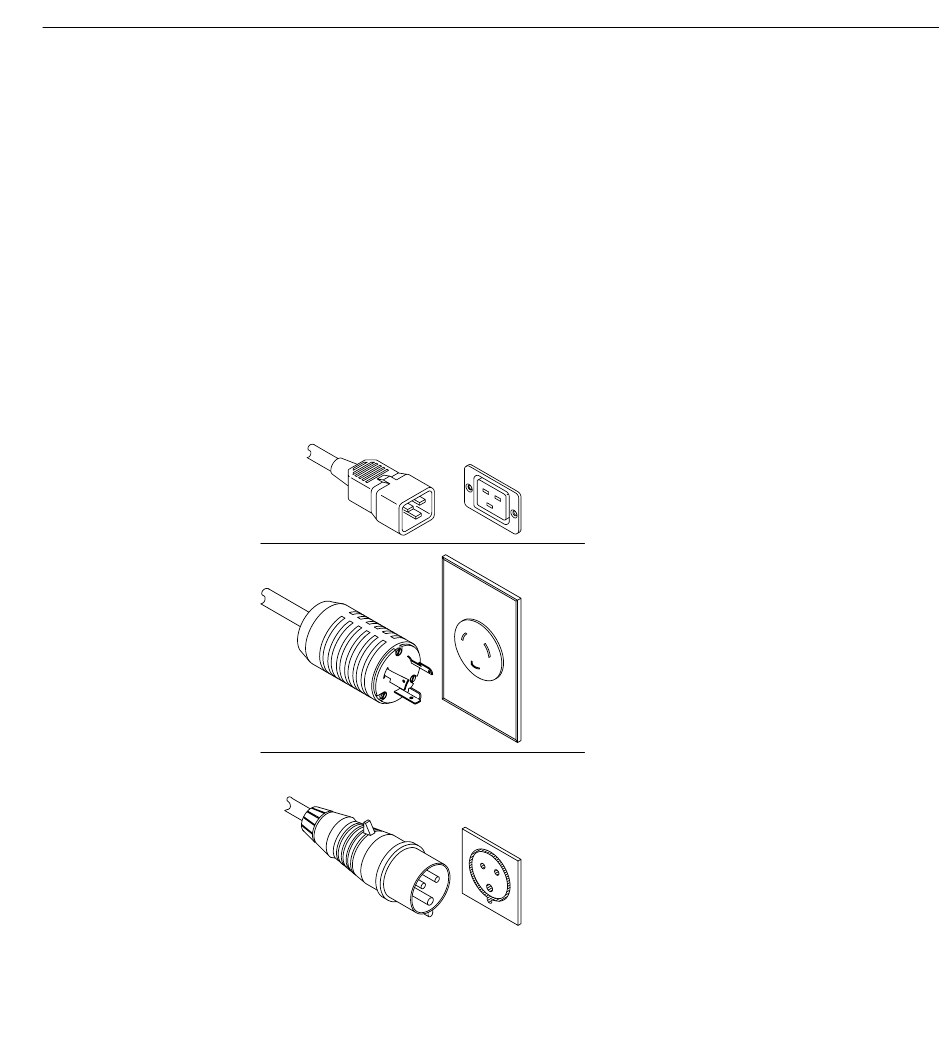

Component
250 VAC, 16 A, IEC 320-C19
Domestic
250 VAC, 30 A, NEMA L6-30
International
230 VAC, 32 A, IEC 309
AC Power Connectors and Receptacles
Figure A-5
48214
