4: Controller Enclosure Component Replacement Procedures
Interface Cable

Replacing an SFP Transceiver

68
GBIC Module

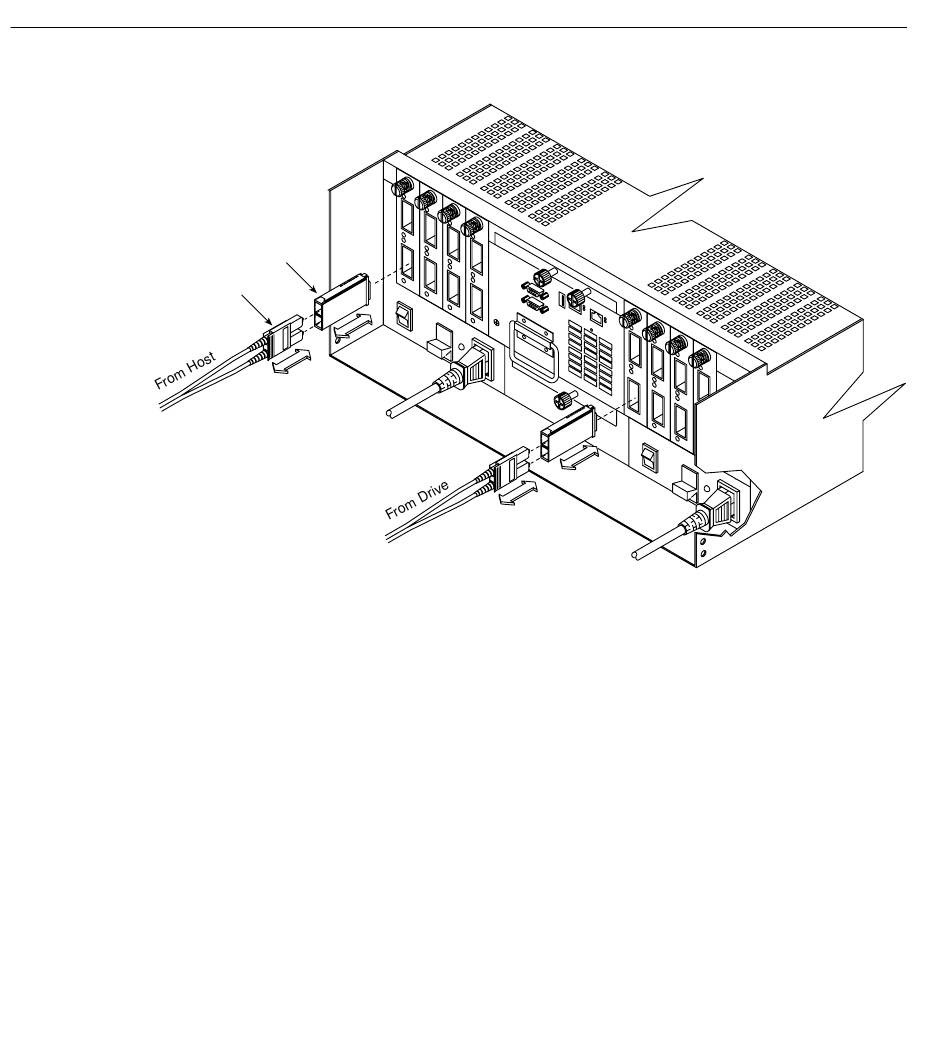

Figure 4-13 Removing and Installing a GBIC Module
4. Remove the failed GBIC module from its minihub slot (Figure 4-13).
5. Insert the new GBIC module into its minihub slot.
6. Reconnect the interface cables.
7. At the system console, reenable the interface.
Use the following procedure when instructed by the storage management software
(TPSSM7) to replace a SFP transceiver.
Before starting this procedure, read "SFP Transceiver" on page 27.
