7. Let the system run for an appropriate amount of time to properly charge the
batteries. In 1 GB interface controller enclosures, it may take up to 15 minutes for
the battery canister to complete its self test and up to six hours to fully charge. In 2
GB interface controller enclosures, it may take up to 30 minutes for the battery
canister to complete its self test and up to twelve hours to fully charge.

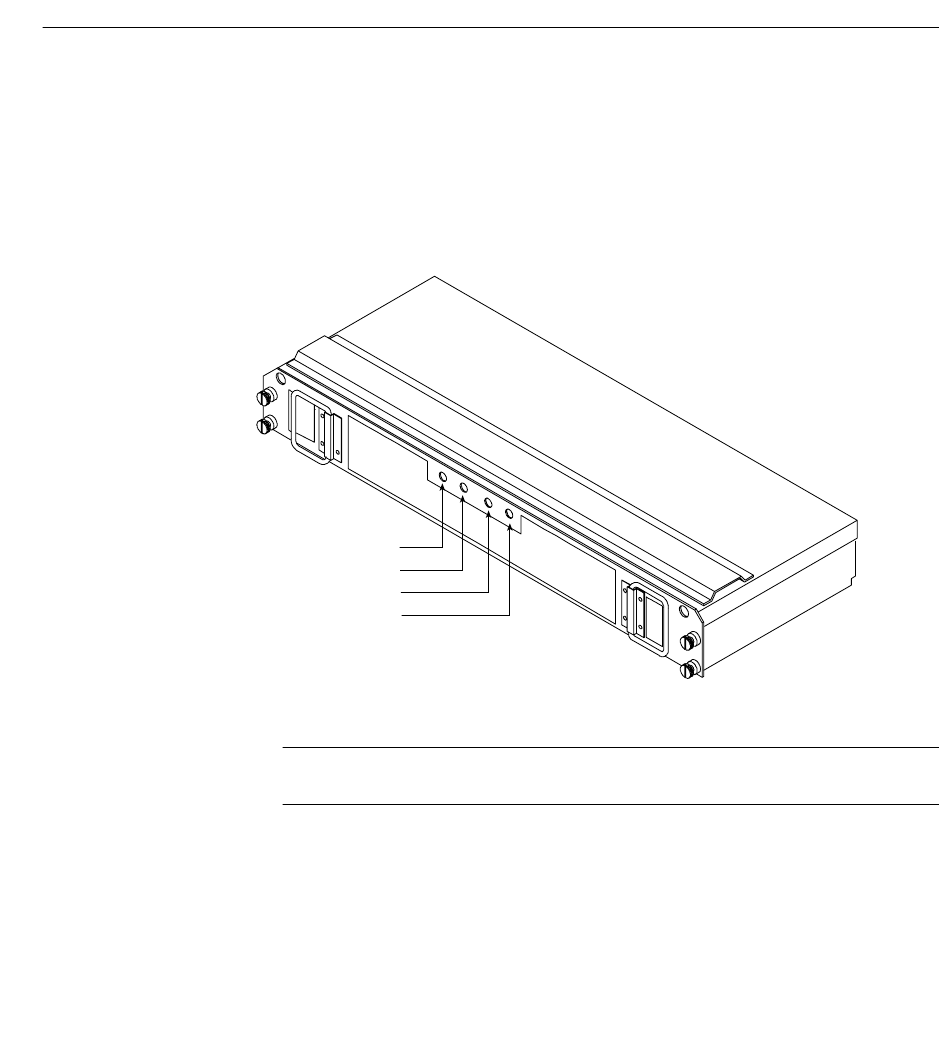

8. Check the battery canister indicators (Figure 4-6). When properly charged, both Full
Charge indicators on the front of the battery canister will glow steadily.
Fault-B
Full Charge-B
Fault-A
Full Charge-A
Battery Canister Indicators
Figure 4-6
Note: If either the Full Charge-A or Full Charge-B indicator is blinking, the battery
is in the process of charging.
9. Use the storage management software (TPSSM7) to reset the battery installation
date.
You must reset the battery installation date. Otherwise, the software will continue to
issue battery-related errors.
Replacing a Failed Battery Canister
