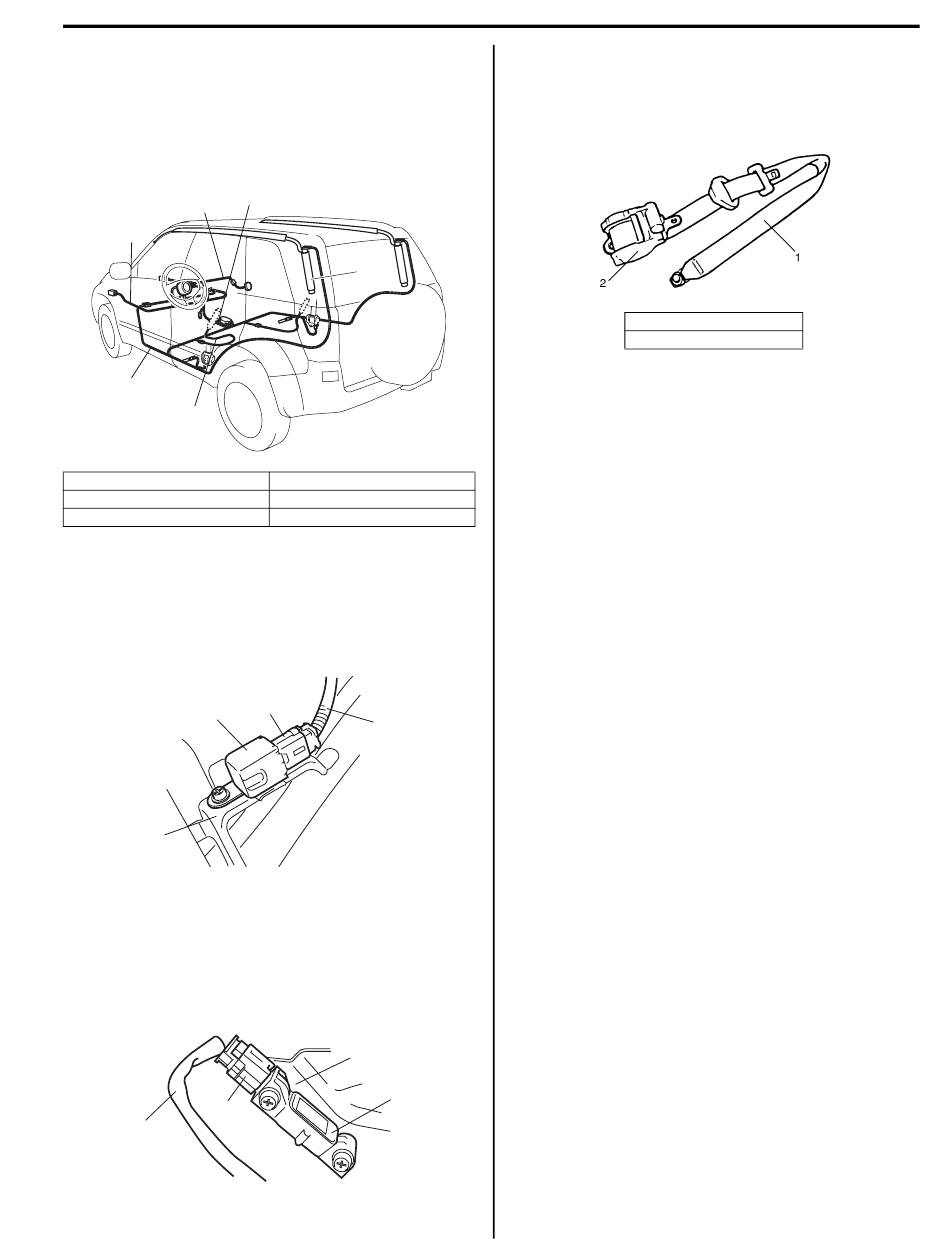

• Air bag wire harness and connections
– Check for damages, deformities or poor
connections.
Refer to "Inspection of Intermittent and Poor
Connections".
– Check wire harness clamps for tightness.
2
1
3
4
1. Main harness
2. Instrument panel harness
3. Floor harness
• Forward-sensor
– Check sensor (1) and bracket (2) for damage, bend
or rust.
– Check connector (3) or lead wire (4) of forward-
sensor for scorching, melting or damage.
1
2
• Side-sensor
– Check sensor (1) and under body (2) for dents,
cracks, deformation or rust.
– Check sensor connector (sensor side and harness
side) (3) or sensor lead wire (4) for damage, crack,
scorching or melting.
3
4
5
I5JB0A820006-01
4. Seat harness
5. Grounding point
3
4
I5JB0A820065-01
2
1
I5JB0A820066-01
• Seat belt pretensioner
– Check for dents, cracks, damage or fitness
– Check harness and connector for damage or
tightness.
1. Seat belt
2. Retractor assembly
• Seat belts and mounting points
– Refer to "Front Seat Belt Components in Section
8A".
• "AIR BAG" warning lamp
– After vehicle is completely repaired, perform "Air
Bag Diagnostic System Check".
• Side-air bag (inflator) module
– Check for dents, cracks, damage or fitness.
– Check trim cover for cracks or deformities.
– Check wire harness and connector for damage or
tightness.
• Side curtain-air bag (inflator) module
– Check for dents, cracks, damage or fitness.
– Check harness wire harness and connector for
damage or tightness.
– Check headlining for cracks or deformation.
Air Bag System: 8B-96
