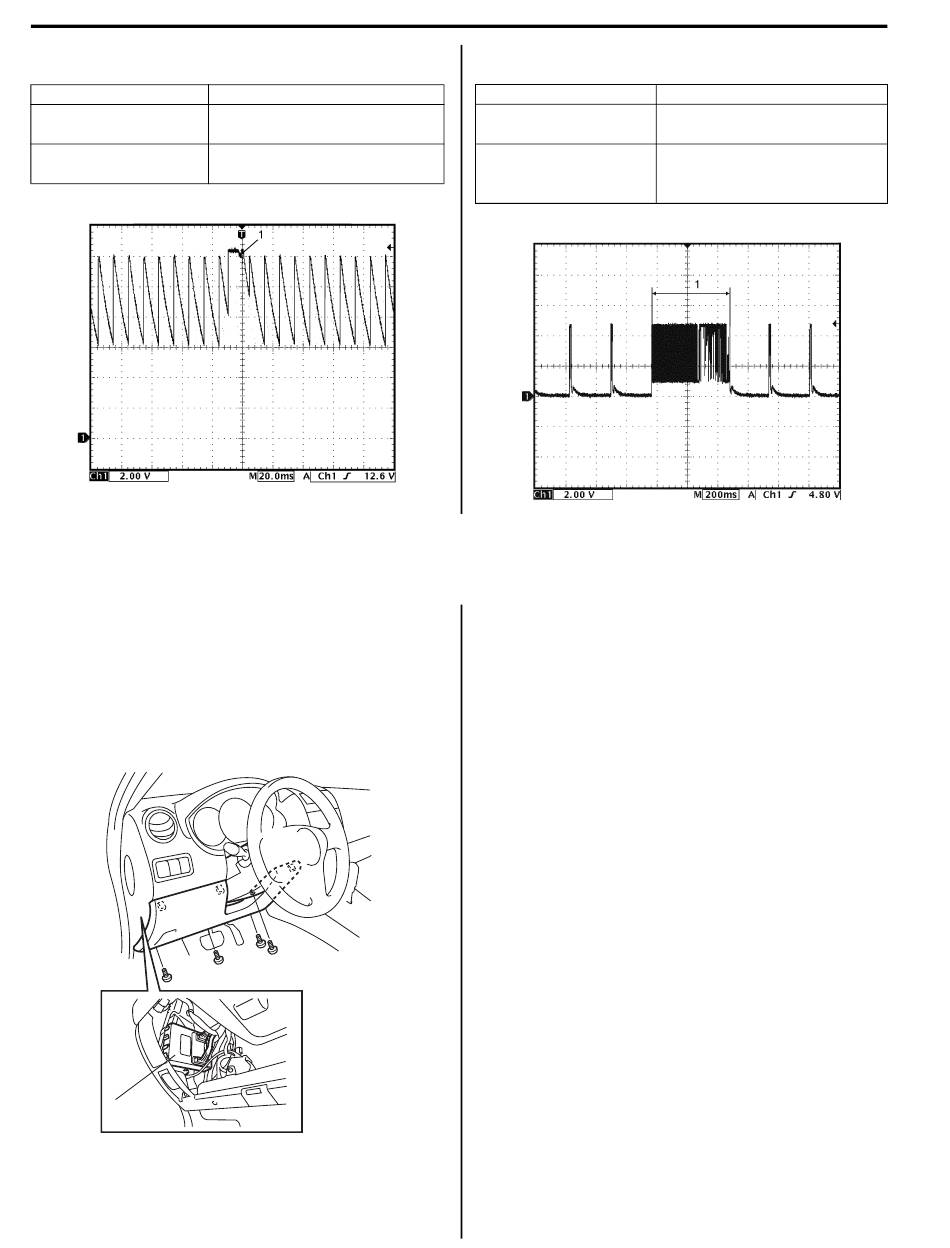

10B-39 Body Electrical Control System:
Reference waveform No. 8
Oil pressure switch signal (1)
Measurement terminal CH1: "G31-9" to "G30-12"
Oscilloscope setting
Measurement condition Engine is running and oil

BCM Removal and Installation

Removal
1) Disconnect negative cable from battery.
2) Remove steering column hole cover (1).
3) Disconnect connectors from BCM.
4) Remove BCM (2).
1
2
CH1: 2 V / DIV
TIME: 20 ms / DIV
pressure is in normal condition
I5JB0AA20020-01
Repair Instructions
S6JB0AA206001
I5JB0AA20022-01
Reference waveform No. 9
Keyless entry receiver signal (1)
Measurement terminal CH1: "G31-19" to "G30-12"
Oscilloscope setting
Measurement condition Lock or unlock button of key
Installation
Reverse removal procedure for installation, noting
following point.
• Connect connectors securely until it clicks.
Outside Air Temperature Sensor Removal and
Installation
For removal and installation, refer to "Outside Air
Temperature Sensor Removal and Installation (If
Equipped) in Section 9C".

Outside Air Temperature Sensor Inspection

For inspection, refer to "Outside Air Temperature Sensor
Inspection (If Equipped) in Section 9C".
CH1: 2 V / DIV
TIME: 200 ms / DIV
less entry transmitter is
pushed
I5JB0AA20021-01
S6JB0AA206002
S6JB0AA206003
