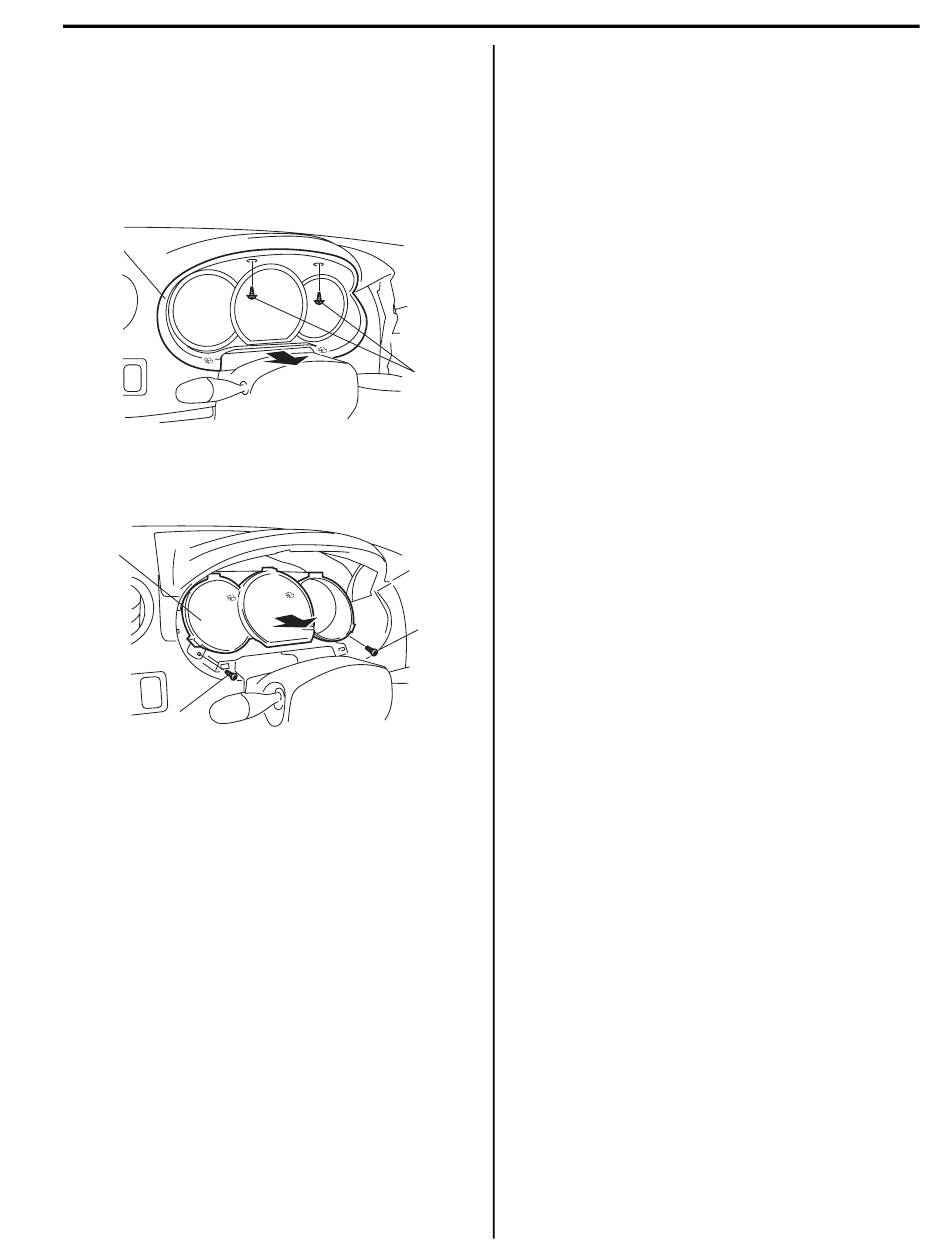

Combination Meter Removal and Installation
Removal
1) Disconnect negative (–) cable at battery.
2) Remove screws (1) fastening combination meter
cluster panel.
3) Remove combination meter cluster panel (2) pulling
it in arrow direction shown in figure.
2
4) Remove screws (1) fastening combination meter.
5) Remove combination meter (2) pulling it arrow
direction as shown.
2
1
Installation
Reverse removal procedure.
Fuel Level Sensor Removal and Installation
S6JB0A9306003
Main Fuel Level Sensor
For removal and installation, refer to "Fuel Pump
Assembly Removal and Installation: For Petrol Engine
Model in Section 1G" or "Fuel Pump Assembly Removal
and Installation: For Diesel Engine Model in Section 1G".
Sub Fuel Level Sensor
For removal and installation, refer to "Sub Fuel Level
Sensor Removal and Installation: For Petrol Engine
Model in Section 1G" or "Sub Fuel Level Gauge
Removal and Installation: For Diesel Engine Model in
Section 1G".
Fuel Level Sensor Inspection
• Check that resistance between terminals "a" and "b"
1
of fuel level sensor changes with change of float
position.
I5JB0A930005-04
• Check resistance between terminals "a" and "b" at
each float position in the following.
If the measured value is out of specification, replace
fuel pump and/or sub fuel level sensor.
1
I5JB0A930006-04
Instrumentation / Driver Info. / Horn:
9C-17
S6JB0A9306004
S6JB0A9306005
