9K-4 Body Structure:

Body Dimensions

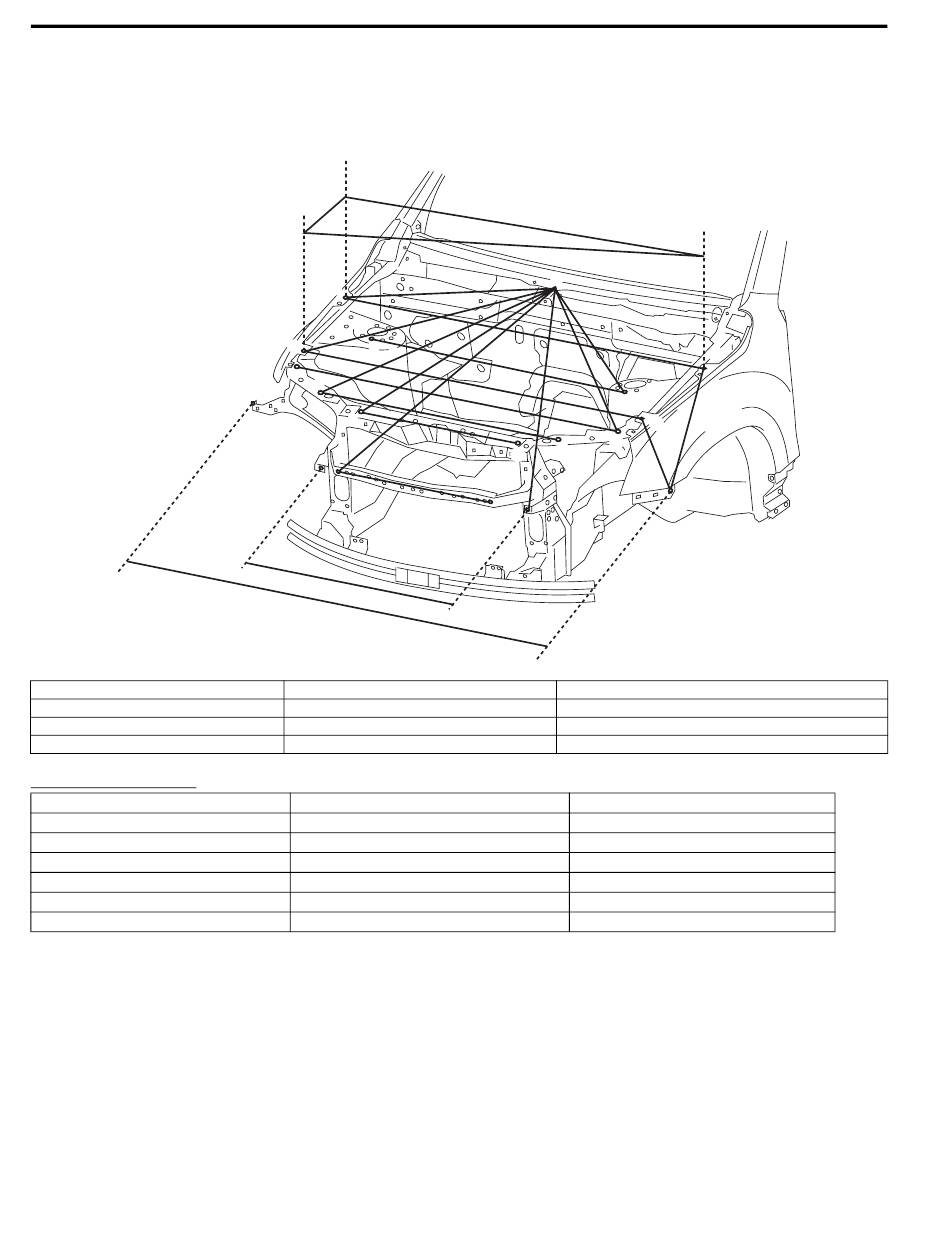

Engine Room
a. Cowl top installation center hole
b (b'). Front fender installation hole
c (c'). Jig hole (φ 8 mm)
d (d'). Front fender installation hole
Hole to hole distance
a-b(b'): 792 mm (31.18 in.)
a-c(c'): 697 mm (27.44 in.)
a-d(d'): 937 mm (36.89 in.)
a-e(e'): 982 mm (38.66 in.)
a-g(g'): 969 mm (38.15 in.)
a-h(h'): 910 mm (35.83 in.)
a-i(i'): 1110 mm (43.70 in.)
Specifications
b
d c
e
g
f
h
i
j
e (e'). Headlight installation hole
f (f'). Front fender installation hole
g (g'). Headlight installation hole
h (h'). Hood lock member installation hole
a-j(j'): 1111 mm (43.74 in.)
b-b': 1512 mm (59.53 in.)
b(b')-d(d'): 375 mm (14.76 in.)
b(b')-f(f'): 535 mm (21.06 in.)
c-c': 1089 mm (42.87 in.)
d-b': 1519 mm (59.80 in.)
d-d': 1432 mm (56.38 in.)
a
c'
d'
e'
g'
h'
i'
j'
i (i'). Headlight installation hole
j (j'). Front upper member installation hole
d(d')-f(f'): 277 mm (10.91 in.)
e-e': 1384 mm (54.49 in.)
f-f': 1750 mm (68.90 in.)
g-g': 980 mm (38.58 in.)
h-h': 662 mm (26.06 in.)
i-i': 865 mm (34.06 in.)
j-j': 630 mm (24.80 in.)
S6JB0A9B07001
b'
f'
I5JB0A9B0004-01
