2. Slide both drive carriers (or drive blanks) out slightly loosening them
from their SCSI connectors on the SMC controller card.
See Figure 6-11.
a. Loosen the two captive screws on the drive carrier faceplate.
b. Pull out the lever on the faceplate using your finger.
Do not try to pull out the lever without first loosening the screws.
c. Pull the drive carrier or drive blank slightly out of the slot.
The drive carriers must disconnect from the connectors on the SMC
controller card.
Captive
screws

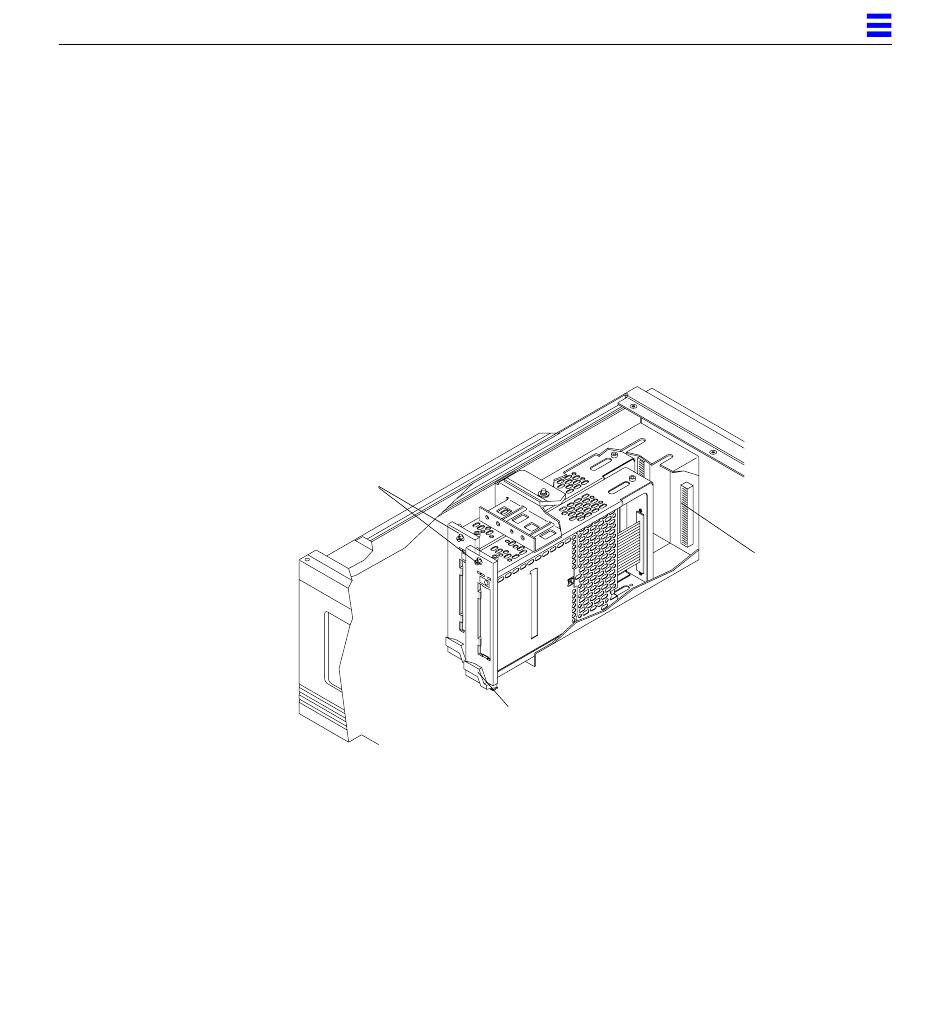

Figure 6-11 Disconnecting the Drive Carriers from the SMC Card

Removing and Installing Replacement Parts
Lever
6
SMC controller
card connector
