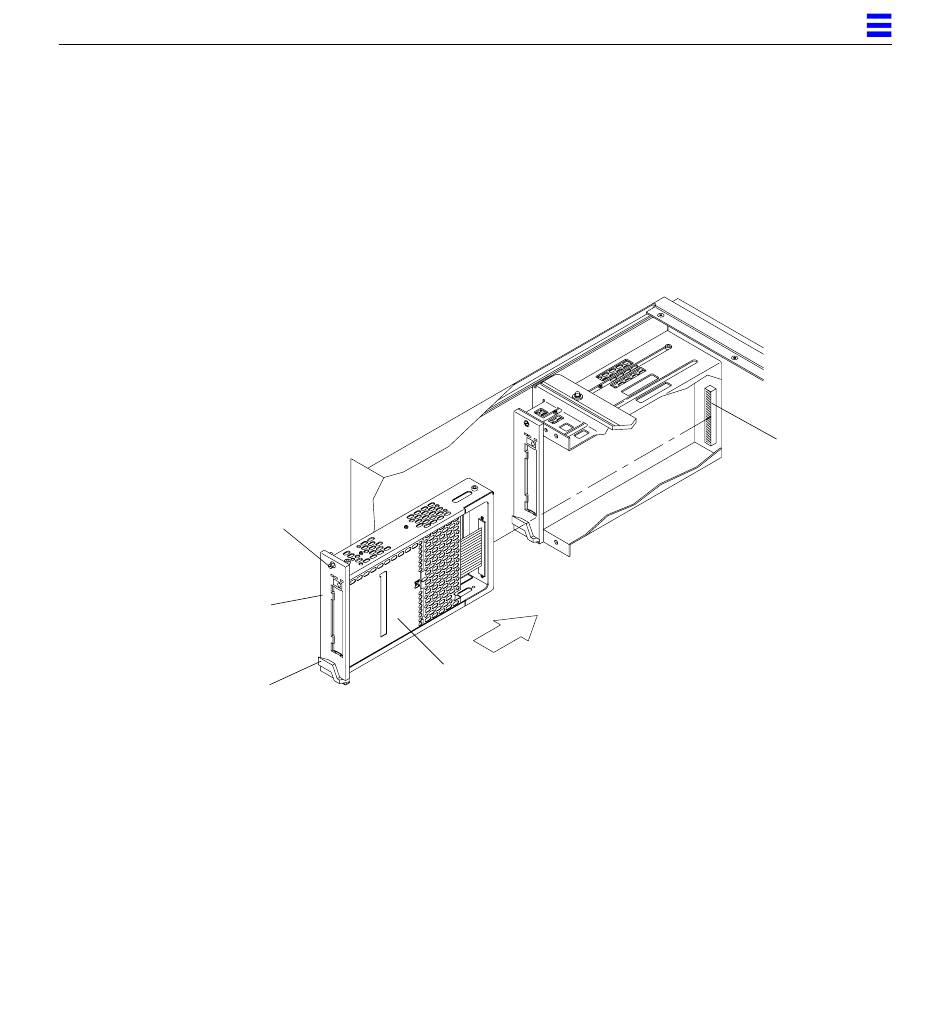

Figure 6-3 Inserting The Drive Carrier - Sun Microsystems SPARCstorage Library Service Manual

6.1.2 Installing the Drive Carrier or Drive Blank
If you are installing two drive carriers, it does not matter which one you insert
first.
1. Insert the drive carrier into the slot with the lever toward the bottom
(table top and rack-mounted units) or on the right (tower unit). See
Figure 6-3.
Captive
screw
Faceplate
Lever
Figure 6-3
2. Push the drive carrier into the slot until the rear surface of the bezel is
flush with the frame. When the tape drive reaches the SMC controller card
connection, you will feel some resistance. Push firmly until it is seated.
Make sure the lever closes all the way when the connection is made. See
Figure 6-3.
Removing and Installing Replacement Parts
Drive
carrier
Inserting the Drive Carrier
6
SMC controller
card connection
