Calling Party Number Based Routing - Matrix Telecom SIMADO GBR42 System Manual

Calling Party Number Based Routing

What's this?
• SIMADO GBR42 provides a facility to route incoming calls based
on CLI number, to particular stations of the programmed Routing
Group. This is known as CLI Based Routing or Calling Party
Number Based Routing.

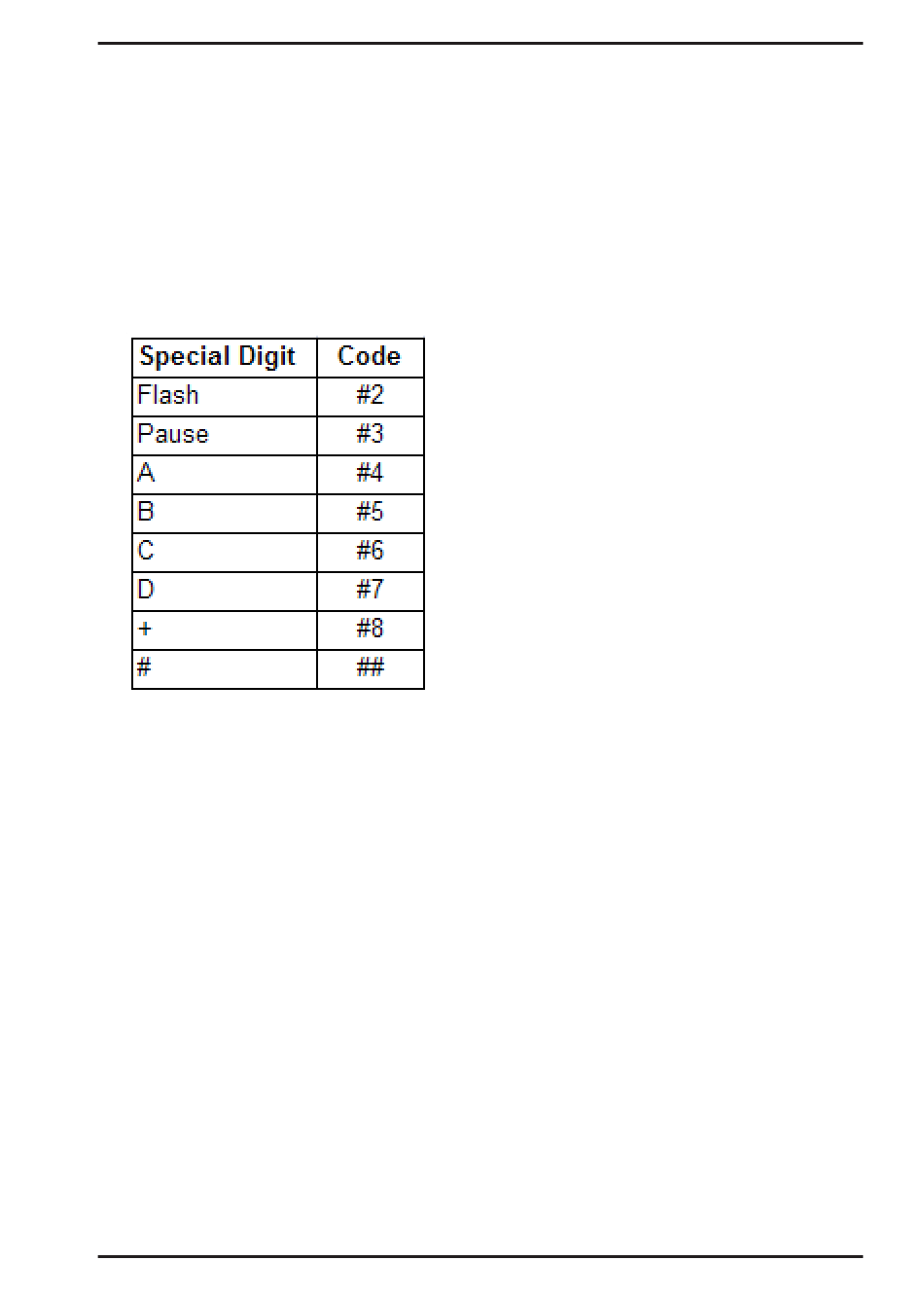

• If required, user can program the number string using following
Codes for the Special digits:
How it works?
• CLI based routing is based on CLI routing table, which can be
programmed for maximum 200 entries.
• The calling party number received from the call originating port is
compared with the numbers in the CLI routing table and if the
match is found, the number is routed as per the table else the call
is routed as per the 'changed called number flag' for that table
index number. For call routing, the port will be selected as per the
routing group programmed. The CLI routing table looks as shown
below:
SIMADO GBR42 V1 System Manual
Matrix
59
