Matrix Telecom SIMADO GBR42 System Manual page 22

Matrix

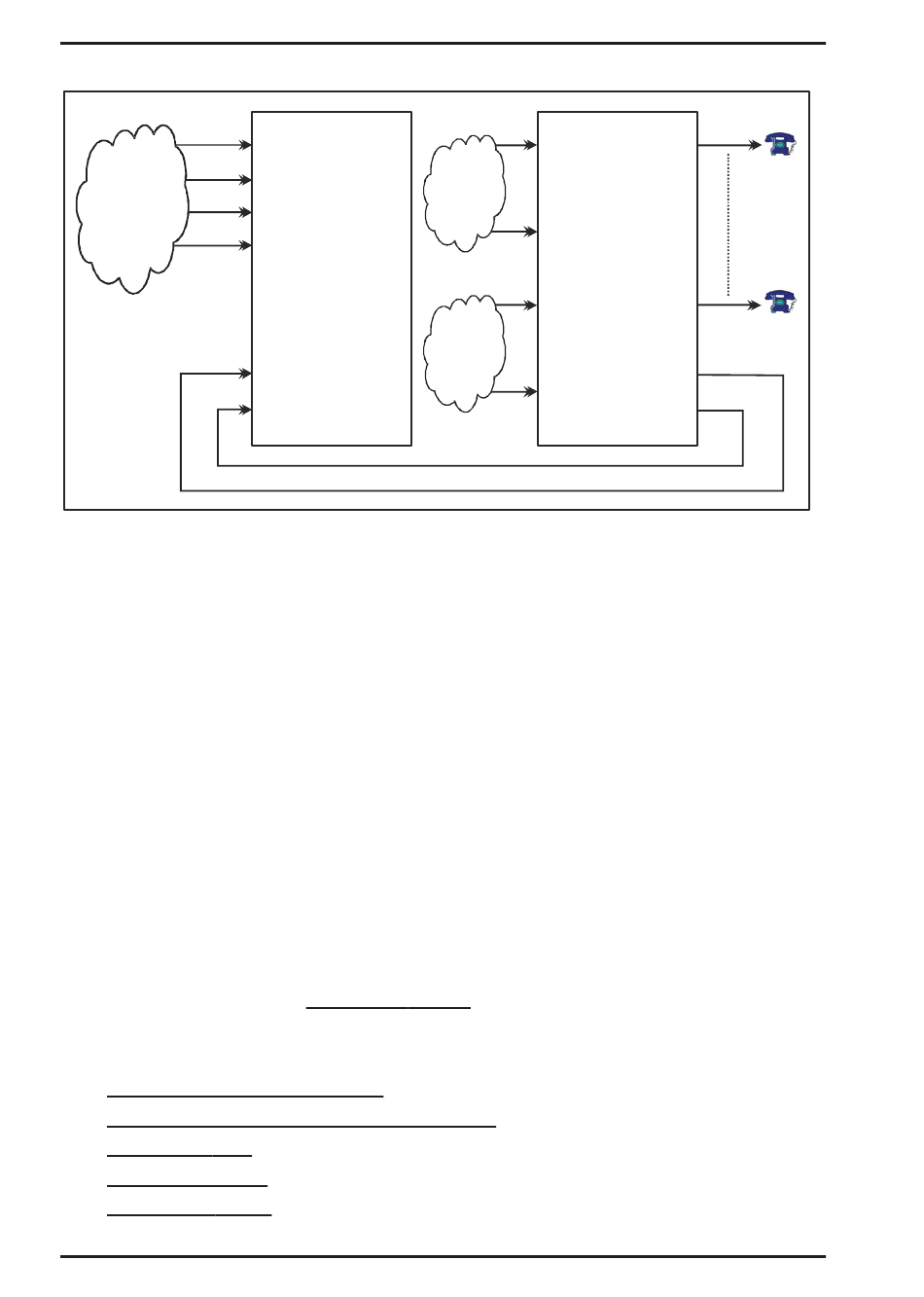

Case 6: SIMADO GBR42 (BRI TE to PBX BRI NT)
GSM
Network
In this application calls from Analog Phones are routed to SIMADO
GBR42 when BRI (NT) ports of the PBX are selected for outgoing
path and routing to GSM port is as per the routing logic programmed.
Card Configuration:
The SIMADO GBR42 consists of:
1. GSM Interfaces = 4 (1 to 4 GSM modules).
2. BRI-ISDN Interfaces = 2.
3. LEDs = 9.
The LEDs
The SIMADO GBR42 supports 9 LEDs.
Out of which 4 dual colour LEDs are for Mobile Port, 1 LED for power
'ON' indication and 4 LEDs are for four BRI channels. Mobile port
LEDs signify various events during Network communication cycle.
Please refer the topic 'Getting Started' for more details.
Relevant Topics:
1. Allowed and Denied Lists
2. Call Processing in SIMADO GBR42 52
3. Routing Type
4. Routing Group 124
5. Getting Started 24
22
Mobile1
Mobile2
Mobile3
Mobile4
SIMADO
GBR42
BRI (TE)
BRI (TE)
33
131
SIMADO GBR42 V1 System Manual
BRI (TE)
ISDN
N/w
BRI (TE)
ISDN
PBX
FXO
PSTN
N/w
FXO
FXS
FXS
BRI (NT)
BRI (NT)
