• Unpack the box. Get satisfied with the contents and the condition
of all the parts.
• Place the system at the suitable site.
• Check the voltage at the power point from where the supply is to
be given to the system.
How to connect the BRI line?
• Most of the Service Providers provide the NT1 along with the BRI
line.
• At the Customer's Premises, the BRI line is terminated on the NT1.
The S/T interface of the NT1 is connected to BRI port of the

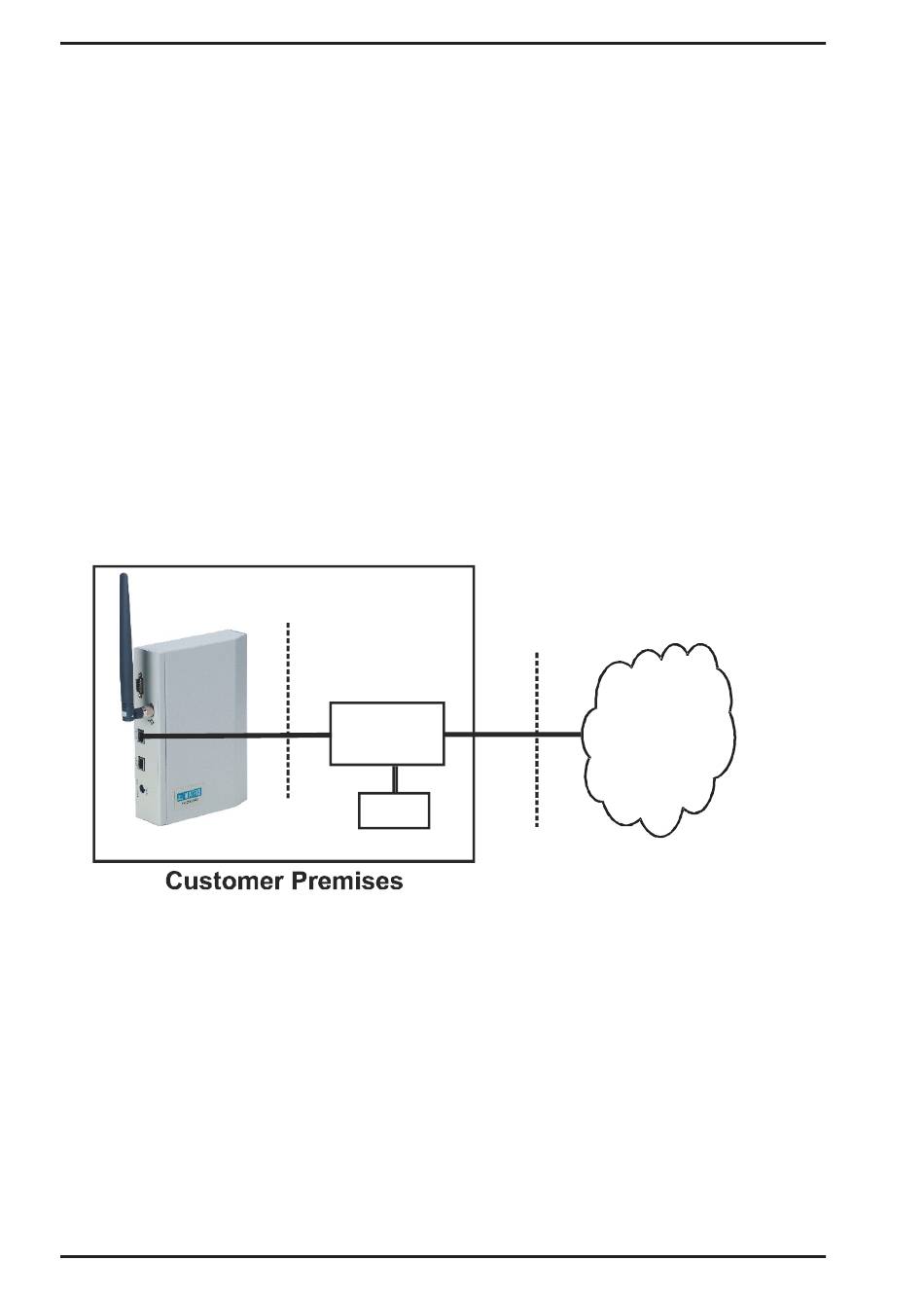

system. This is shown in the figure given below.
• Any BRI port can be configured as NT or TE with jumper
setting on the card. 4-BRI channels are available.
How to use Mobile Port?
• 4-GSM modules are mounted on the card and antenna connectors
are combined into a single splitter where the antenna is connected.
• The antenna connector is provided on front panel to connect an
external antenna with cable, attached with it.
• The SIM card is inserted like normal cell-phone. To use any mobile
port, ensure that SIM is inserted, registered with network and
enabled by proper programming.
24

Getting Started

NT 1
Power
S/T
Interface
U-Interface
(2 wire)
SIMADO GBR42 V1 System Manual
ISDN
Network
