Connection of gateway is described in two parts:
• Station Connection.
• BRI, Antenna and Mobile Port Connection.
At the end of chapter the dimensional detail is provided to help user
for selecting the site of installation.
Station Connection:
• ISDN PBX can be connected with the gateway, analog telephones
or ISDN phones as shown in Configuring the System for initiating
calls or for incoming calls.
• ISDN phone can be connected to BRI, if configured as NT.

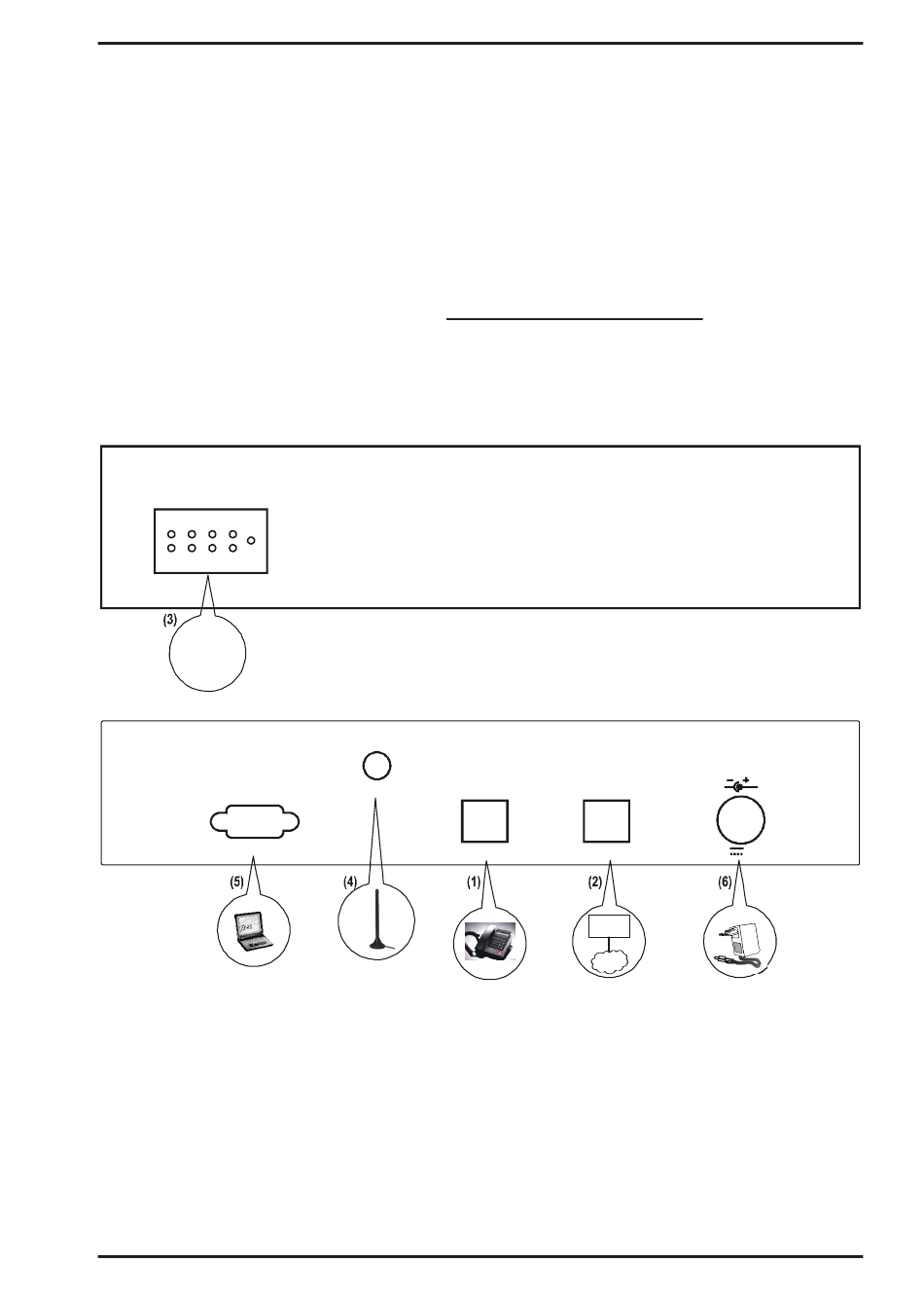

Following figure explain connection to other ports:
G1 G2 G3 G4
PWR
B11 B12 B21 B22
Port
LED's
COM 10101
1. BRI1 S/T
• This port is hardware configured as NT port. Connect RJ45 cable
from the BRI port to ISDN Phone.
2. BRI2 S/T
• This port is hardware configured as TE port. Connect BRI line
subscribed from ISDN service provider with unique MSN number
SIMADO GBR42 V1 System Manual
Antenna
BRI1 S/T
ISDN Phone
BRI2 S/T 12VDC 2A(Max.)
NT 1
U Interface
