Call Processing in SIMADO GBR42

What's this?
• This chapter includes for detailed explanation of call routing from
source port to the destination port. Calls on each port are placed
depending upon the various routing type, member selection
method etc.

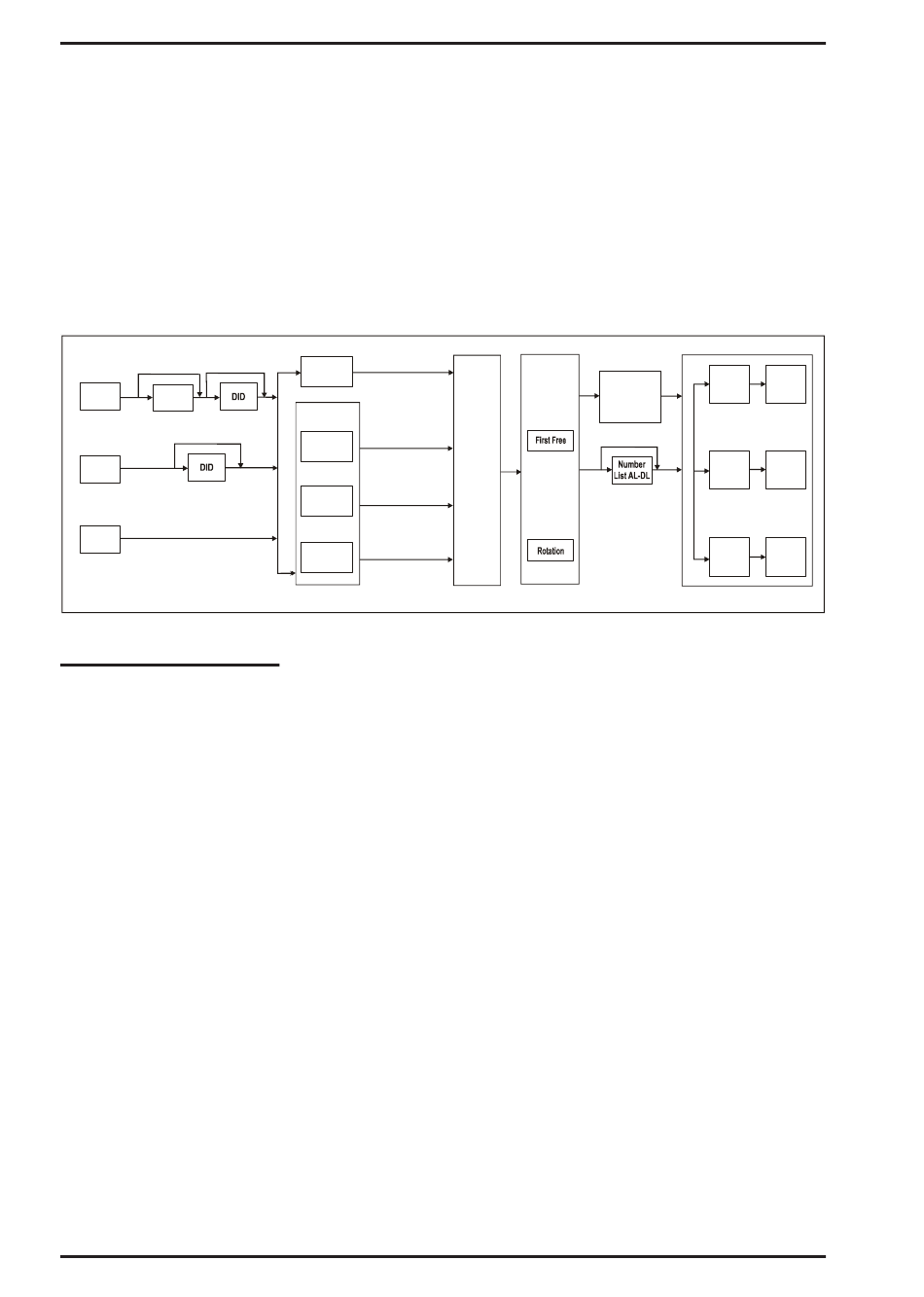

• The following block diagram shows the flow of Call Processing in
the SIMADO GBR42:
Call Initiated/
Call Present
Mobile I/O
RCOC
Logic
TE I/O
Logic
NT I/O
Logic
Source Port
Explanation of DID
• DID is Direct Inward Dialing. It is the feature by which the caller can
access the system and dial the required number or enter
programming mode on getting the feature tone. The extension
number should be dialed before expiry of the tone. Otherwise caller
will get 'Error Tone'.
How it works?
The call routing is explained for following three cases:
• Calls originating from Mobile Port.
• Calls originating from TE Port.
• Calls originating from NT Port.
Originating Port : Mobile
• If the source port is Mobile Port and RCOC feature is enabled the
call is routed as per RCOC logic. If calling party number is
matching as per the RCOC table then the call is routed to the port
that originated the call. If the feature RCOC is disabled or number
match is not found, the call is routed as per DID (Direct Inward
Dialing) logic.
52
Emergency
Emergency Number
No. Dialing
Table
Call Routing
Option
Dialed
Dialed Number
Number
String Table
Routing
Group
Calling
Calling Party Number
Party ##
Based Routing Table
Fixed Routing Type
Fixed
## Calling Party Number Based Routing is applicable only for Mobile and BRI TE Port.
SIMADO GBR42 V1 System Manual
Routing
Emergency
Group
Dialing (AL-DL
Member
and ANT shall
Selection
not be applied)
Method
Call Placed
Number Mobile
List I/O
ANT Logic
Number TE
List I/O
ANT Logic
Number NT
List I/O
ANT Logic
Destination Port
