Alternator Replacement - Polaris RZR PRO R Service Manual

ELECTRICAL
STEP
1. Repair the high resistance or open in the alternator grounding circuit.
8
2. Was the problem located and corrected?
1. Repair the high resistance or open in the alternator output circuit.
9
2. Was the problem located and corrected?
1. Replace the ECU.
10
2. Was the ECU replaced?
1. Replace the alternator assembly.
11
2. Was the alternator assembly replaced?
1. Run the vehicle to verify the repair.
12
2. Was the problem corrected?

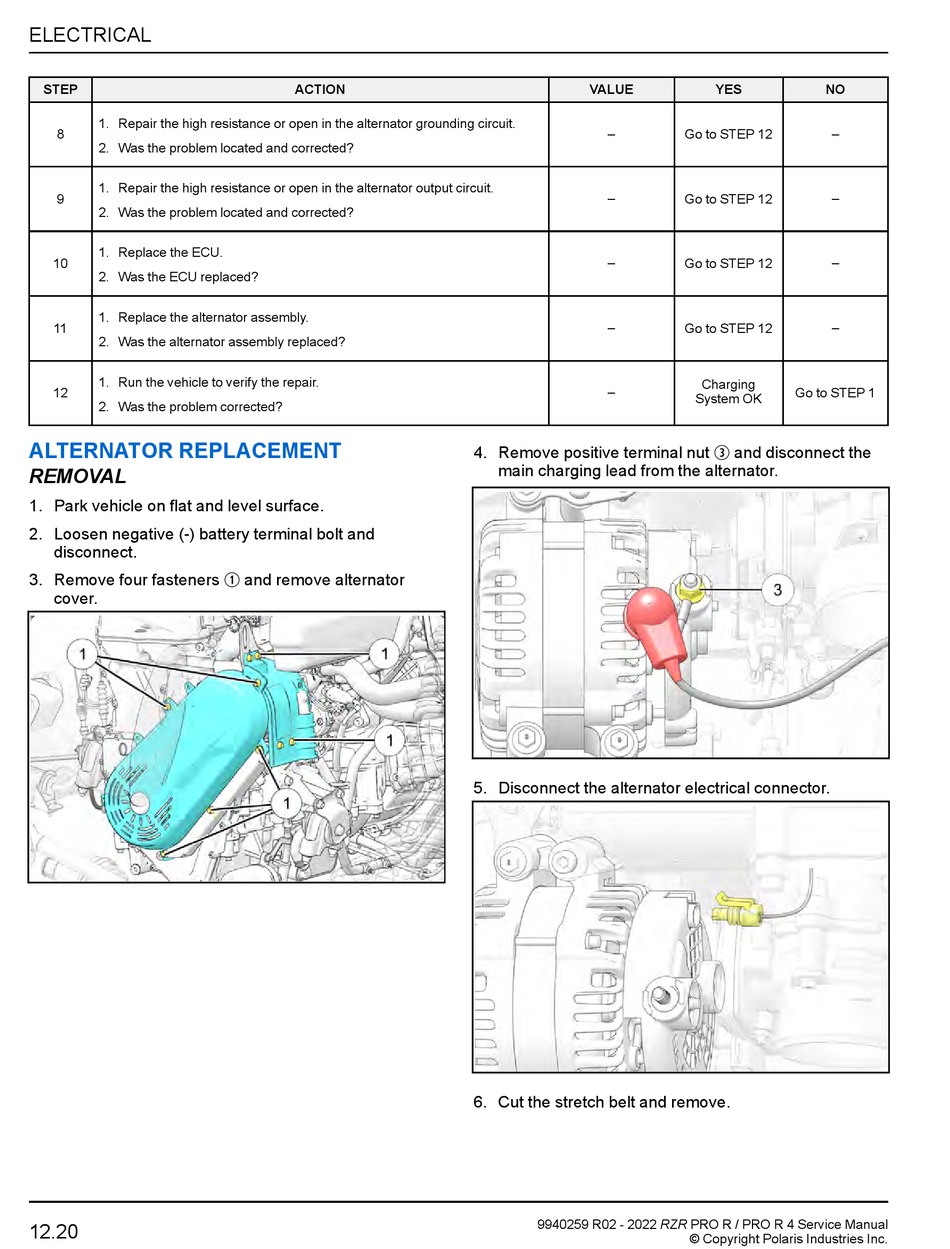

ALTERNATOR REPLACEMENT

REMOVAL
1. Park vehicle on flat and level surface.
2. Loosen negative (-) battery terminal bolt and
disconnect.
3. Remove four fasteners
cover.
12.20
ACTION
q
and remove alternator
VALUE
–
–
–
–
–
4. Remove positive terminal nut
main charging lead from the alternator.
5. Disconnect the alternator electrical connector.
6. Cut the stretch belt and remove.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
YES NO
–
Go to STEP 12
Go to STEP 12 –
–
Go to STEP 12
Go to STEP 12 –
Charging
Go to STEP 1
System OK
e
and disconnect the
