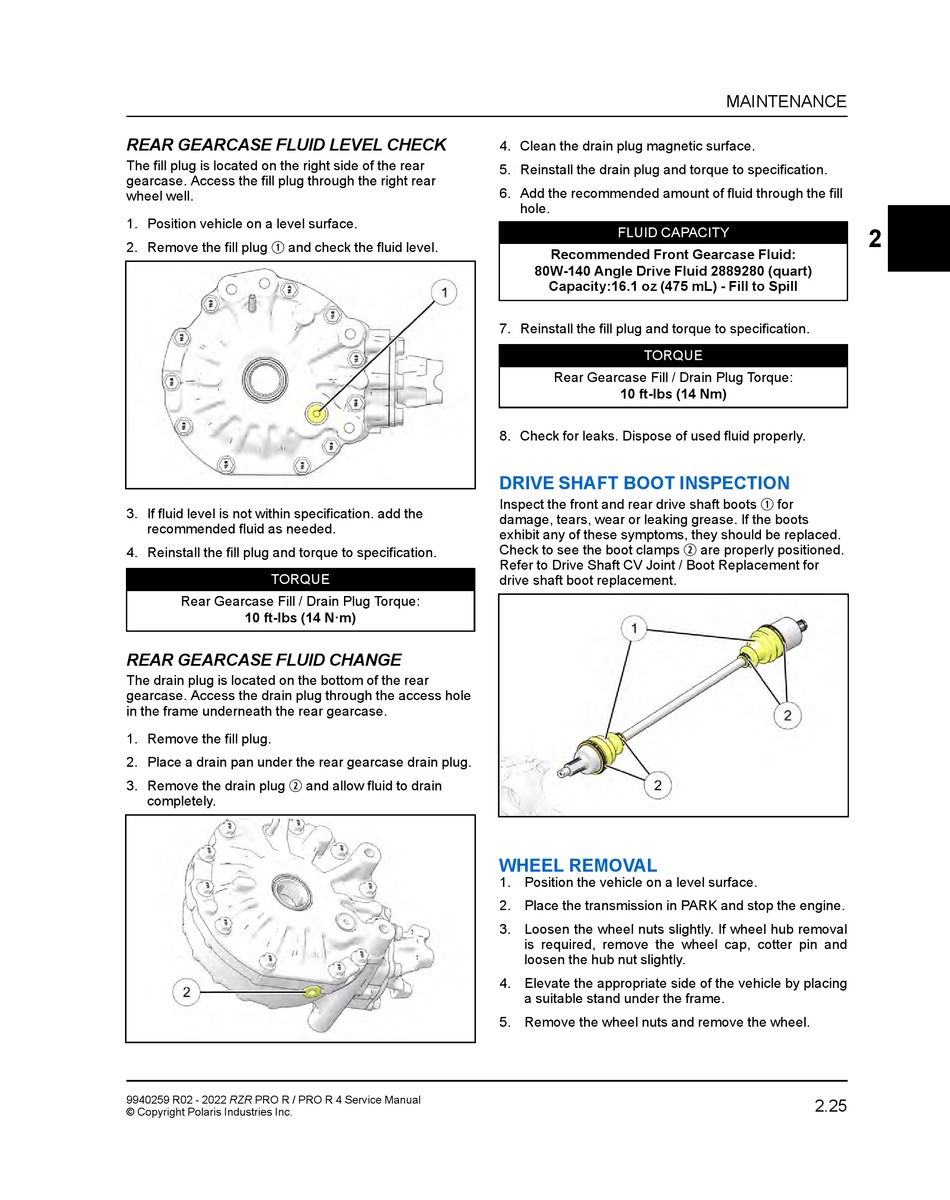

REAR GEARCASE FLUID LEVEL CHECK
The fill plug is located on the right side of the rear
gearcase. Access the fill plug through the right rear
wheel well.
1. Position vehicle on a level surface.
q
2. Remove the fill plug and check the fluid level.
3. If fluid level is not within specification. add the
recommended fluid as needed.
4. Reinstall the fill plug and torque to specification.
TORQUE
Rear Gearcase Fill / Drain Plug Torque:
10 ft-lbs (14 N·m)
REAR GEARCASE FLUID CHANGE
The drain plug is located on the bottom of the rear
gearcase. Access the drain plug through the access hole
in the frame underneath the rear gearcase.
1. Remove the fill plug.
2. Place a drain pan under the rear gearcase drain plug.
w
3. Remove the drain plug and allow fluid to drain
completely.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
4. Clean the drain plug magnetic surface.
5. Reinstall the drain plug and torque to specification.
6. Add the recommended amount of fluid through the fill
hole.
FLUID CAPACITY
Recommended Front Gearcase Fluid:
80W-140 Angle Drive Fluid 2889280 (quart)
Capacity:16.1 oz (475 mL) - Fill to Spill
7. Reinstall the fill plug and torque to specification.
TORQUE
Rear Gearcase Fill / Drain Plug Torque:
10 ft-lbs (14 Nm)
8. Check for leaks. Dispose of used fluid properly.

DRIVE SHAFT BOOT INSPECTION

Inspect the front and rear drive shaft boots
damage, tears, wear or leaking grease. If the boots
exhibit any of these symptoms, they should be replaced.
Check to see the boot clamps
Refer to Drive Shaft CV Joint / Boot Replacement for
drive shaft boot replacement.

WHEEL REMOVAL

1. Position the vehicle on a level surface.
2. Place the transmission in PARK and stop the engine.
3. Loosen the wheel nuts slightly. If wheel hub removal
is required, remove the wheel cap, cotter pin and
loosen the hub nut slightly.
4. Elevate the appropriate side of the vehicle by placing
a suitable stand under the frame.
5. Remove the wheel nuts and remove the wheel.
MAINTENANCE
q
for
w
are properly positioned.
