WHEEL HUBS

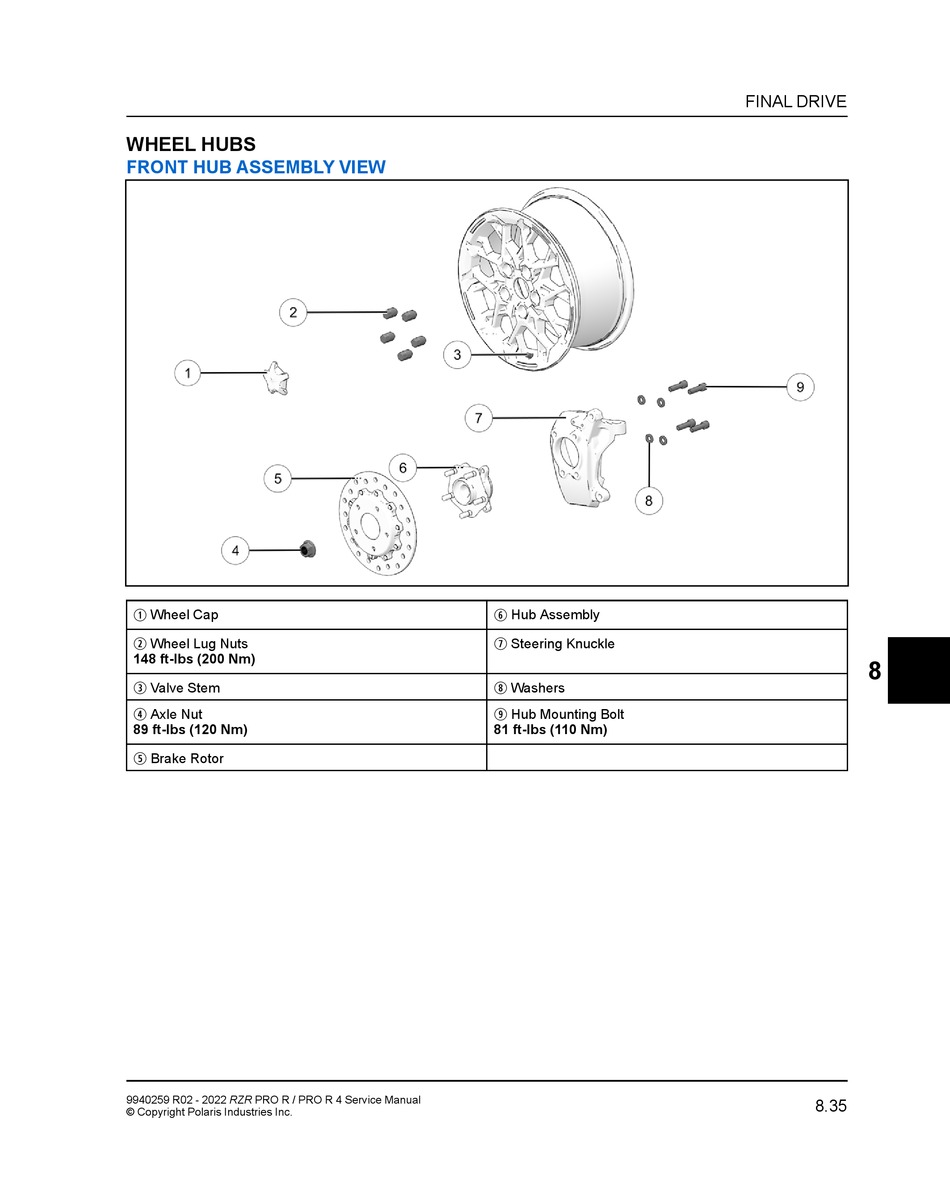

FRONT HUB ASSEMBLY VIEW

q
Wheel Cap
w
Wheel Lug Nuts
148 ft-lbs (200 Nm)
e
Valve Stem
r
Axle Nut
89 ft-lbs (120 Nm)
t
Brake Rotor
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
y
Hub Assembly
u
Steering Knuckle
i
Washers
o
Hub Mounting Bolt
81 ft-lbs (110 Nm)
