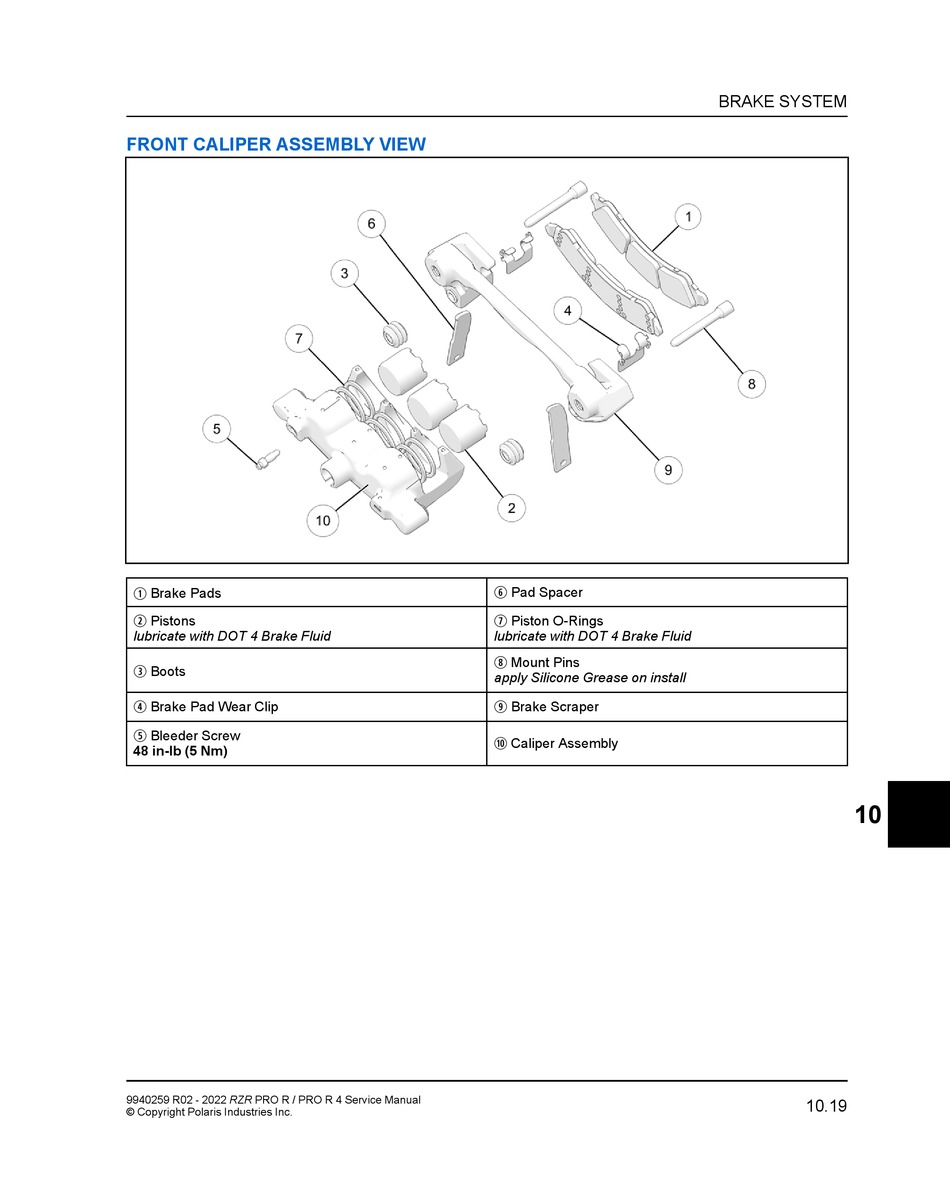

FRONT CALIPER ASSEMBLY VIEW
q
Brake Pads
w
Pistons
lubricate with DOT 4 Brake Fluid
e
Boots
r
Brake Pad Wear Clip
t
Bleeder Screw
48 in-lb (5 Nm)
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
y
Pad Spacer
u
Piston O-Rings
lubricate with DOT 4 Brake Fluid
i
Mount Pins
apply Silicone Grease on install
o
Brake Scraper
a
Caliper Assembly
BRAKE SYSTEM
