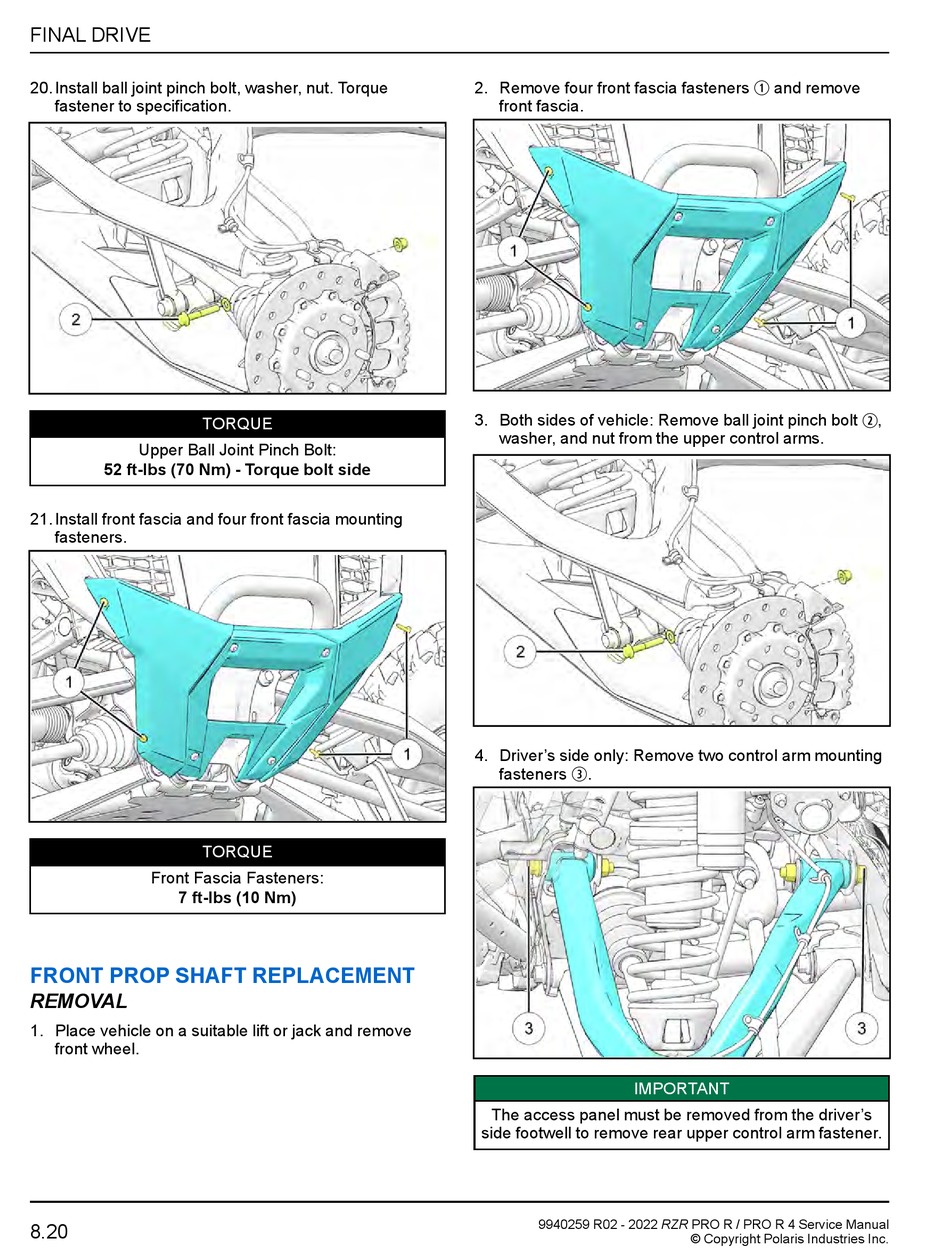

Front Prop Shaft Replacement - Polaris RZR PRO R Service Manual

FINAL DRIVE
20. Install ball joint pinch bolt, washer, nut. Torque
fastener to specification.
TORQUE
Upper Ball Joint Pinch Bolt:
52 ft-lbs (70 Nm) - Torque bolt side
21. Install front fascia and four front fascia mounting
fasteners.
TORQUE
Front Fascia Fasteners:
7 ft-lbs (10 Nm)

FRONT PROP SHAFT REPLACEMENT

REMOVAL
1. Place vehicle on a suitable lift or jack and remove
front wheel.
8.20
2. Remove four front fascia fasteners
front fascia.
3. Both sides of vehicle: Remove ball joint pinch bolt
washer, and nut from the upper control arms.
4. Driver's side only: Remove two control arm mounting
e
fasteners .
IMPORTANT
The access panel must be removed from the driver's
side footwell to remove rear upper control arm fastener.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
q
and remove
w
