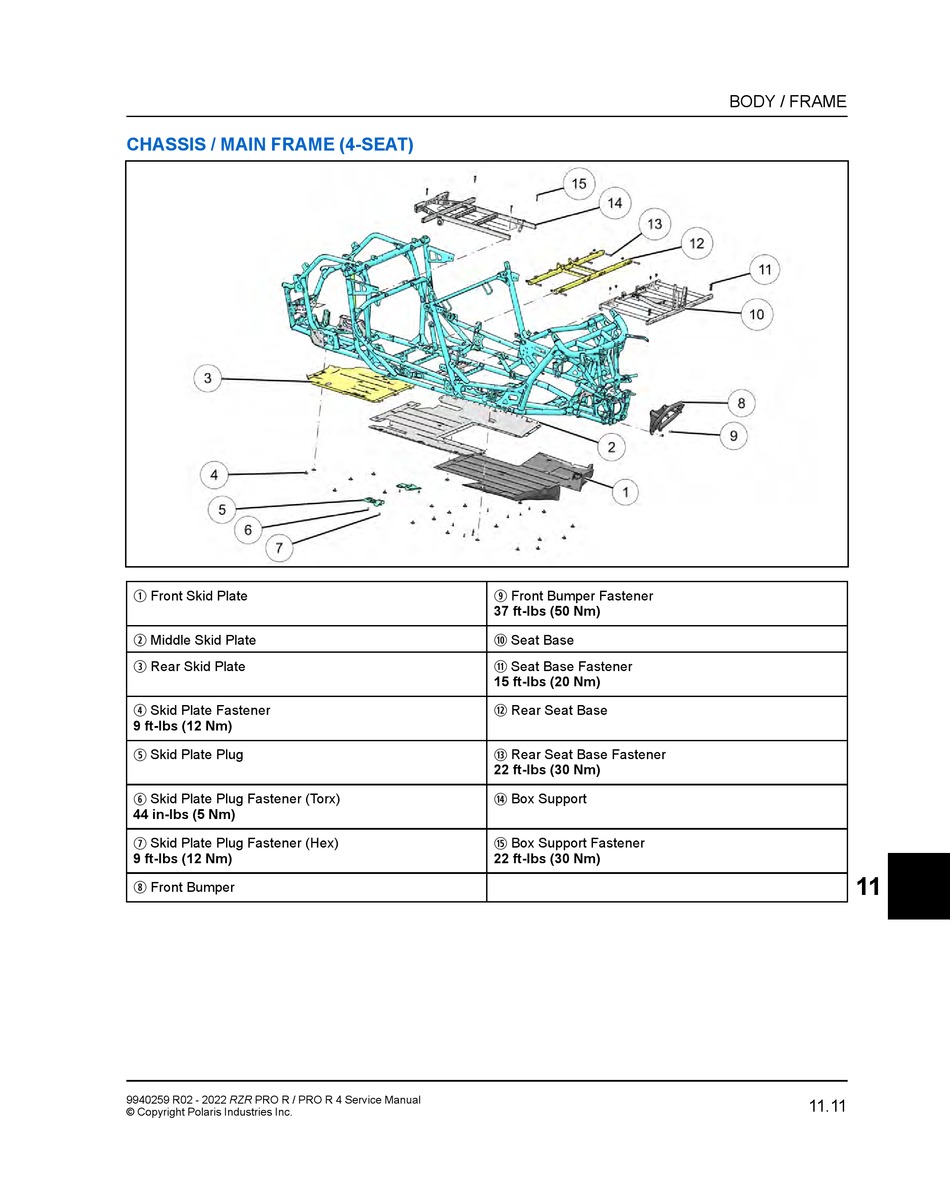

CHASSIS / MAIN FRAME (4-SEAT)

q
Front Skid Plate
w
Middle Skid Plate
e
Rear Skid Plate
r
Skid Plate Fastener
9 ft-lbs (12 Nm)
t
Skid Plate Plug
y
Skid Plate Plug Fastener (Torx)
44 in-lbs (5 Nm)
u
Skid Plate Plug Fastener (Hex)
9 ft-lbs (12 Nm)
i
Front Bumper
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
o
Front Bumper Fastener
37 ft-lbs (50 Nm)
a
Seat Base
s
Seat Base Fastener
15 ft-lbs (20 Nm)
d
Rear Seat Base
f
Rear Seat Base Fastener
22 ft-lbs (30 Nm)
g
Box Support
h
Box Support Fastener
22 ft-lbs (30 Nm)
