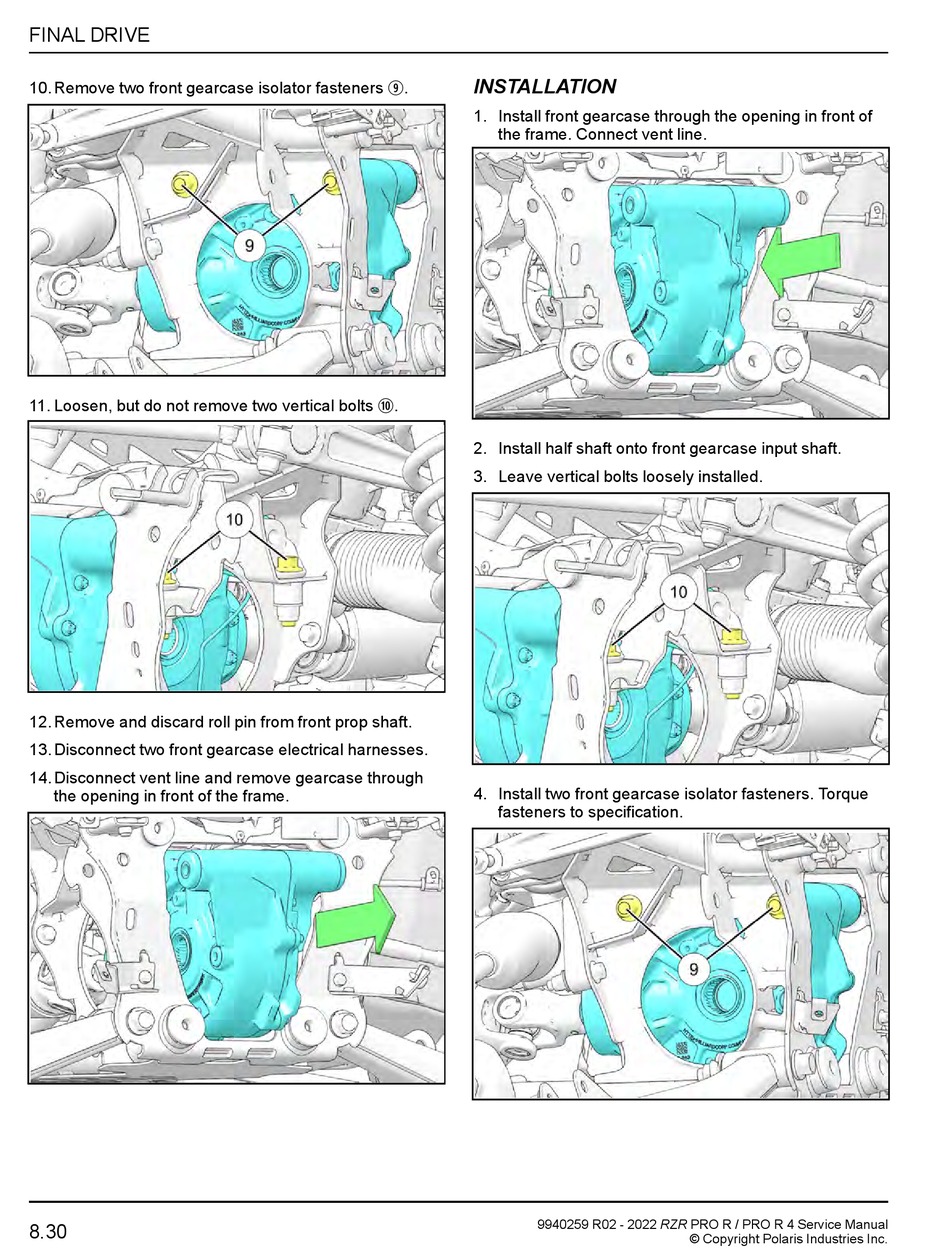

FINAL DRIVE
10. Remove two front gearcase isolator fasteners
11. Loosen, but do not remove two vertical bolts
12. Remove and discard roll pin from front prop shaft.
13. Disconnect two front gearcase electrical harnesses.
14. Disconnect vent line and remove gearcase through
the opening in front of the frame.
8.30
o
INSTALLATION
.
1. Install front gearcase through the opening in front of
the frame. Connect vent line.
a
.
2. Install half shaft onto front gearcase input shaft.
3. Leave vertical bolts loosely installed.
4. Install two front gearcase isolator fasteners. Torque
fasteners to specification.
