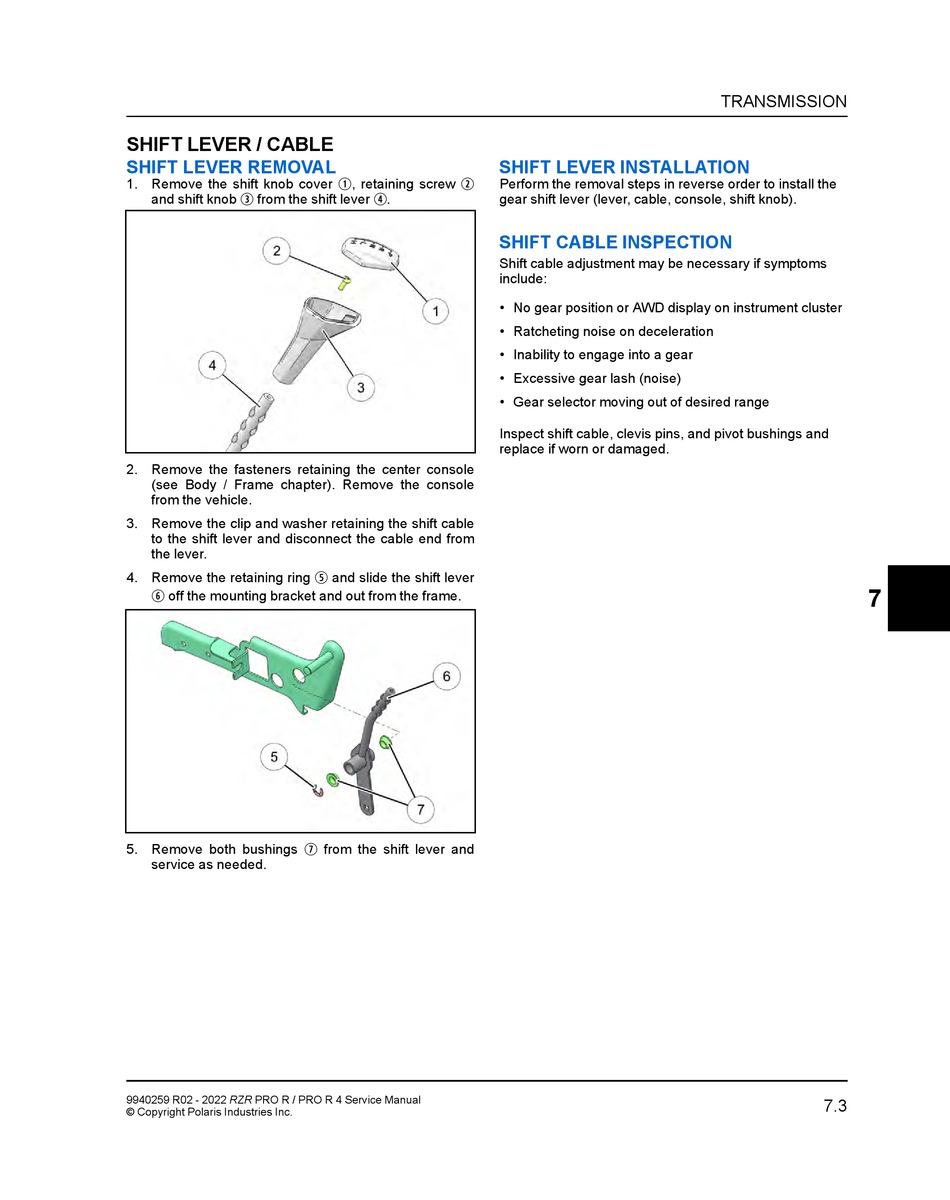

SHIFT LEVER / CABLE

SHIFT LEVER REMOVAL

1. Remove the shift knob cover
e
and shift knob from the shift lever
2. Remove the fasteners retaining the center console
(see Body / Frame chapter). Remove the console
from the vehicle.
3. Remove the clip and washer retaining the shift cable
to the shift lever and disconnect the cable end from
the lever.
4. Remove the retaining ring
y
off the mounting bracket and out from the frame.
u
5. Remove both bushings
service as needed.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
q w
, retaining screw
r
.
t
and slide the shift lever
from the shift lever and

SHIFT LEVER INSTALLATION

Perform the removal steps in reverse order to install the
gear shift lever (lever, cable, console, shift knob).

SHIFT CABLE INSPECTION

Shift cable adjustment may be necessary if symptoms
include:
• No gear position or AWD display on instrument cluster
• Ratcheting noise on deceleration
• Inability to engage into a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range
Inspect shift cable, clevis pins, and pivot bushings and
replace if worn or damaged.
