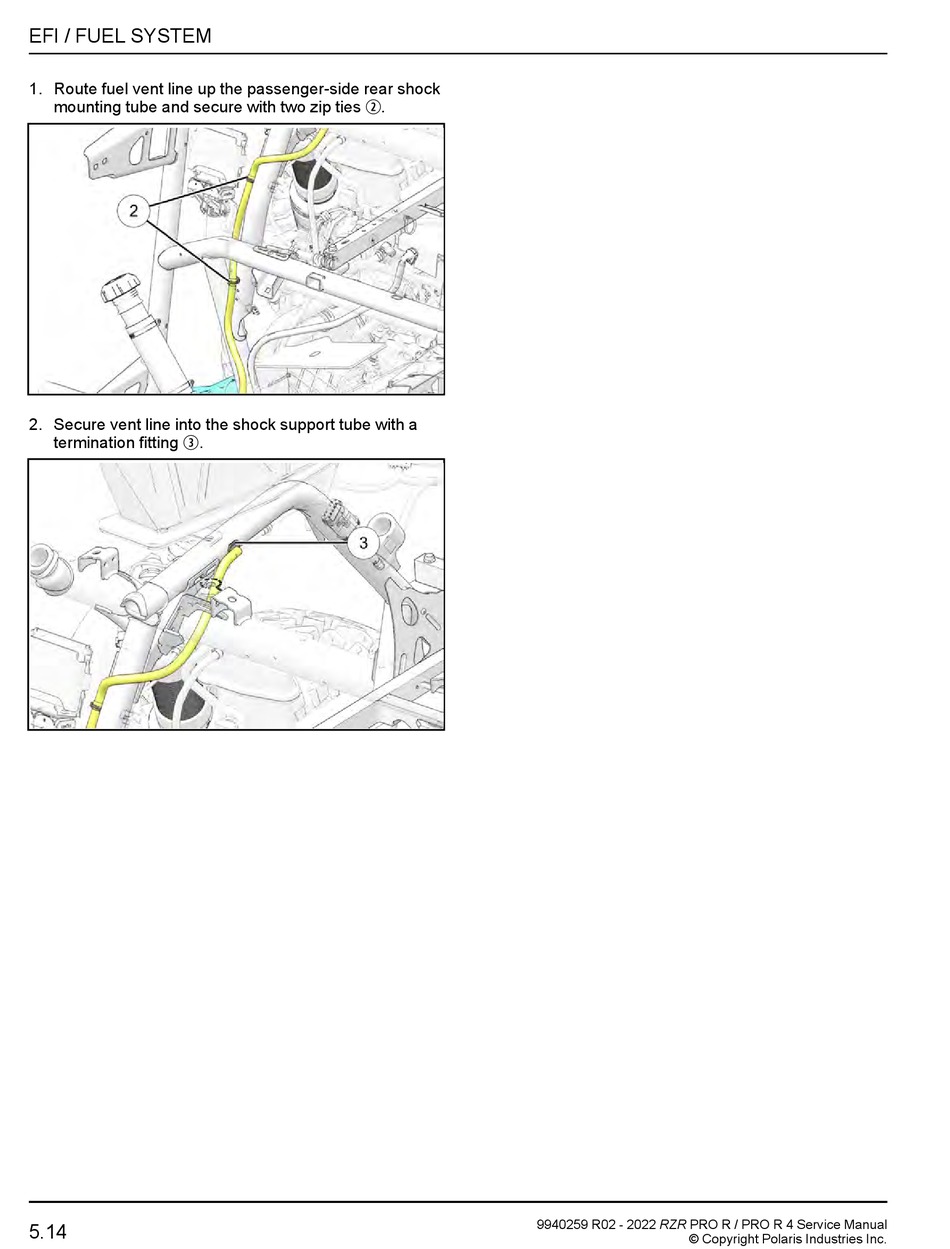

EFI / FUEL SYSTEM
1. Route fuel vent line up the passenger-side rear shock
mounting tube and secure with two zip ties
2. Secure vent line into the shock support tube with a
e
termination fitting
.
5.14
w
.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
